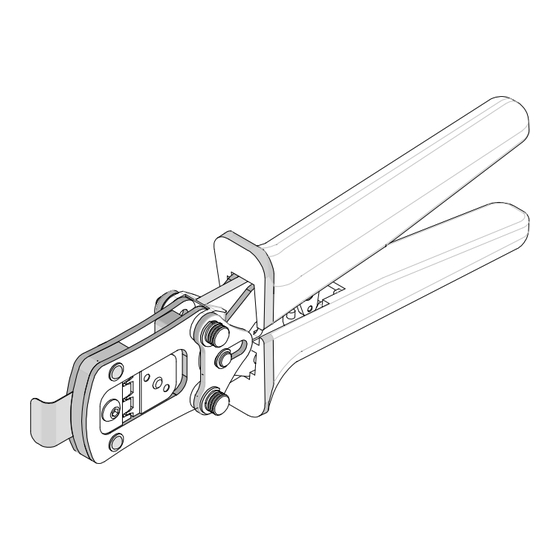

Hand Crimp Tool for 2.50mm Board-In Crimp Terminals
Modular Crimp Head
Order No. 63823-7970
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 2.50mm (.098") Board-In Crimp Terminal, 22-28 AWG, UL1007 and UL1569 wires.
Terminal
Series No.
35047
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6382379HM
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel
AWG
35047-9800 35047-9802
22-28 0.33-0.08 1.15-1.90
35047-9810
Insulation crimp to meet IPC/WHMA-A-620 Class 2 compliance.
Note: Terminal will accommodate the UL1007 and UL1569 wires.
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF TAB
Release Date: 09-02-10
Revision Date: 10-14-10
Wire Size
Insulation Diameter
mm²
mm
.045-.075 2.40-2.90 .094-.114
BELL MOUTH
SEAM
CONDUCTOR
CRIMP
COND.CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-7900
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
