Page 2: Table Of Contents
CONTENTS CAUTIONS 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD LAYOUT AND DESCRIPTION 4. INITIAL SETUP 5. INSTRUCTION FOR USE 6. TROUBLE SHOOTING DAILY CARE AND MAINTENANCE... - Page 3 CAUTIONS 1. This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more information and after sales service.
-
Page 4: Installation

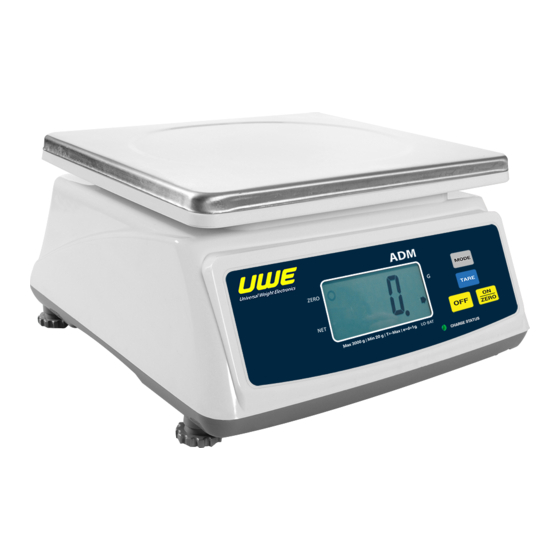

1. INSTALLATION Check and make sure that the following accessories are included: This operation manual Scale x 1 Plastic platter x 1 Stainless steel cover x 1 Screw x 1 Rubber cap x 1 Power adaptor x 1 Contact your dealer if any items are missed. Lock the plastic platter (FIG 1 A) to the platter holder, with the screw (FIG 1 B) included and then apply the rubber cap (FIG 1 C). - Page 5 FIG 1 FIG 2...
-
Page 6: Specifications
2. SPECIFICATIONS Division (e) Capacity Model No. (Max) OIML Non-OIML ADM-1500 1500g 0.5g ADM-3000 3000g 0.5g ADM-6000 6000g ADM-15K 15kg 0.005kg 0.002kg ADM-30K 30kg 0.01kg 0.005kg Tare Range Full tare range (Subtractive) Display 5 x 24mm LCD display C (32 ~104 Operation Environment... -
Page 7: Keyboard Layout And Description
3. KEYBOARD LAYOUT AND DESCRIPTION 1. ON/ZERO KEY Press this key to turn scale on, or reset displayed weight to zero when the scale is not loaded. 2. TARE KEY Press this key to tare off the weight of a container during normal operation. - Page 8 5. ZERO INDICATOR This indicator appears to indicate a zero weight status. 6. NET INDICATOR This indicator appears to indicate the tare function is in effect and weight displayed is net weight. 7. METRIC UNIT INDICATOR This indicator appears to indicate the weighing unit being selected is at metric (kilogram or gram).
-
Page 9: Initial Setup
4. INITIAL SETUP 4.1 PLACING THE SCALE In order to obtain an accurate weighing result, the scale must be placed on a strong and level surface. If required, adjust the adjustable feet (FIG 2 F) underneath scale to obtain a level position. Refer to the bubble indicator for leveling condition. - Page 10 Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1 Press TARE three times Scale displays F.4 Press MODE to shift between 0._OFF and 4._OFF -To enable Auto Power Off Function, press TARE when 4._OFF appears -To disable Auto Power Off Function, press TARE when 0._OFF appears Press ON/ZERO to restart the scale or TARE for next function setup...
- Page 11 NOTE: The default data output format of the scale is Baud Rate = 9600 Data Bit = 8 Stop Bit = 1 Parity = None 4.2.4 Select Data Transmission Mode This scale provides 2 types of transmission mode depending on the requirement and environment. Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1...
- Page 12 4.2.5 Select Auto Tare Function This scale is equipped with auto tare function which tares off the initial weight automatically when this function is engaged. The tare weight is automatically cleared when everything is removed from platter. Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1 Press TARE six times...
-
Page 13: Instruction For Use
5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: The plastic platter is screwed firmly and the stainless steel platter cover is placed on the plastic platter. The scale is placed on a level and strong surface. The scale is turned on. The ZERO INDICATOR is on. - Page 14 5.3 SELECT WEIGHT UNIT Press MODE to shift between metric or avoirdupois weight units. The weight unit used before power off would be employed when the scale is turned on again. NOTE: To comply with the law of certain countries and certain approval requirements, the avoirdupois weight units may be disabled.
- Page 15 SPECIFICATIONS for maximum zero range. NOTE: -When scale is set at OIML and application is legal for trade. User only needs to press ON/ZERO once when setting the value to zero. The re-zero function will take place when reading is stabled -When scale is set at Non-OIML and application is not legal for trade.
- Page 16 NOTE: - When scale is set at OIML and application is legal for trade. User only needs to press TARE once when tare off a weight. The tare function will take place when reading is stabled - When scale is set at Non-OIML and application is not legal for trade.
-
Page 17: Trouble Shooting
6. TROUBLE SHOOTING Syndrome Scale cannot be turned on Check: Is the scale charged? Action: Recharge the scale for at least 8 hours before first time use or plug in the power adaptor before power on the scale. Check: Is the power adaptor inserted properly into both the electricity outlet and the DC inlet of scale? Action:... - Page 18 Check: Is the scale overloaded? Action: Remove some loads from platter. Check: Is the stainless steel platter cover placed on the platter? Action: Place the stainless steel platter cover onto the platter. Syndrome Rated capacity cannot be reached Check: Is the NET INDICATOR on? Action: Turn the scale off.
- Page 19 condition. Check: Is the scale affected by airflow, vibration or RFI? Action: Place the scale away from all disturbances. Check: Is the scale calibrated correctly? Action: Contact your dealer. Check: Is the correct weight unit employed? Action: Refer to 5.3 for weight unit setting and usage.
-
Page 20: Daily Care And Maintenance
7. DAILY CARE AND MAINTENANCE 1. Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. 2. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. 3. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary. - Page 21 KONFORMITÄTSERKLÄRUNG Declaration of conformity Déclaration de conformité Die ichtselbsttätigen Waage The non-automatic weighing instrument L'instrument de pesage à fonctionnement non automatique Hersteller: Universal Weight Enterprise Manufacturer: Fabricant Co., Ltd. Typ/Modell: Type/Model: Type/modèle: Nr. der EG-Bauartzulassung (gegebenen falls): T6160 No of the EC type-approval certificate (where applicable): Nº...
