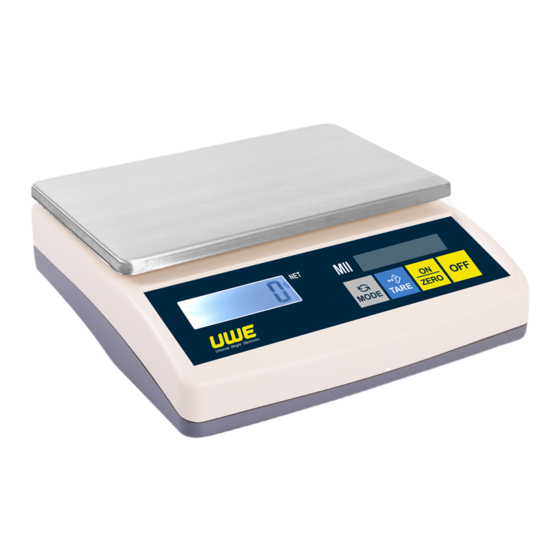

UWE MII-ECO Operation Manual
  1. Manuals
  2. Brands
  3. UWE Manuals
  4. Scales
  5. MII-ECO
  6. Operation manual

UWE MII-ECO Operation Manual

Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the MII-ECO and is the answer not in the manual?

Questions and answers

Related Manuals for UWE MII-ECO

Summary of Contents for UWE MII-ECO

  • Page 2: Table Of Contents

    CONTENTS INSTALLATION SPECIFICATIONS KEYBOARD LAYOUT AND DESCRIPTION INTERNAL FUNCTIONS AND INITIAL SETUP INSTRUCTION FOR USE ERROR CODES AND TROUBLE SHOOTING DAILY CARE AND MAINTENANCE...

  • Page 3: Installation

    1. INSTALLATION This product has a manufacturer serial number. If missing, the manufacturer’s warranty is invalid and the product should be returned to your retailer for a full refund. 1.1 CHECK and make sure that the following items are included: ...
  • Page 4 If not, do not plug in the adaptor, contact your dealer immediately. CAUTION: When the power adaptor is being used, take all battery out from the battery pack. Failure to do so may cause battery leak/ explosion or damages to the scale.

  • Page 5: Specifications

    2. SPECIFICATIONS Model Capacity Division MII-600 600g/1lb 5.195oz 0.1g/0.005oz MII-1200 1200g/2lb 10.40oz 0.2g/0.01oz MII-3000 3000g/6lb 9.98oz 0.5g/0.02oz MII-6000 6000g/13lb 4.00oz 1g/0.05oz MII-2500 2500g/5lb 8.50oz 1g/0.05oz MII-5000 5000g/11lb 1.0oz 2g/0.1oz 1 x 9V battery or 6 x AA size battery Power Source or External Power Adaptor Max.

  • Page 6: Keyboard Layout And Description

    3. KEYBOARD LAYOUT AND DESCRIPTION 1. OFF KEY Press this key to turn scale off. 2. ON/ZERO KEY Press this key to turn scale on or set weight to zero when unloaded. 3. TARE KEY Press this tare weight container. 4.
  • Page 7 6. MINUS INDICATOR This indicator will appear when the value being displayed is at negative value. 7. LO-BAT INDICATOR This indicator will appear when the battery voltage low. Replace battery apply external power adaptor immediately. 8. WEIGHT PANEL Weight result is displayed here. 9.

  • Page 8: Internal Functions And Initial Setup

    4. INTERNAL FUNCTIONS AND INITIAL SETUP 4.1 SETTING PROCEDURES AND KEY FUNCTIONS  Press and hold TARE and then press ON/ZERO. Release ON/ZERO and display shows F1.  Use TARE to scroll through the menu and MODE to enter each function. (F1, F2,…etc) ...
  • Page 9 4.2 INTERNAL SETTINGS FUNCTION FUNCTION DESCRIPTION Backlight setting For Qualified Technical Personnel Only Check Display Segment- Under this function, backlight (if equipped) functional indicators and display segments will be lit up. Contact your dealer if any display element is missing. Select Auxiliary Weight Units Select Auto Power Off 3 parameters are available:...

  • Page 10: Instruction For Use

    5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: a. The scale placed level strong surface. b. The plastic platter is placed correctly on top load receptor stainless steel platter cover is placed on the plastic platter. c. The scale is turned on. d.
  • Page 11 The weight unit (used before power off) would be employed when the scale is turned on again. 5.4 SET DISPLAYED VALUE TO ZERO WHEN UNLOADED Press ON/ZERO to set weight displayed to zero when unloaded. Refer to SPECIFICATIONS for maximum zero range.
  • Page 12 5.6 CLEAR THE TARE FUNCTION a. Remove all loads from platter. b. The scale will appear a negative value, which is the weight of the container, and the ZERO INDICATOR appears. c. Press TARE. d. After TARE is pressed, a zero weight will be displayed while the ZERO INDICATOR remains.

  • Page 13: Error Codes And Trouble Shooting

    6. ERROR CODES AND TROUBLE SHOOTING 6.1 ERROR CODE ERROR CODE DESCRIPTION Nostb Calibration weight is not stable Err_1 CPU failure Err_2 Offset value too low Err_3 Offset value too high Contact your dealer immediately when error code appears. 6.2 TROUBLE SHOOTING Syndrome Scale cannot be turned on Check:...
  • Page 14 Syndrome Scale turned off automatically Is the AUTO POWER OFF FUNCTION being employed? Refer to 4.2.3 Select Auto Power Off Function Status Weight Unit disable the Auto Power Off Function. Check: Is the LO-BAT INDICATOR on? Action: Replace the battery with a new one, or apply the power adaptor immediately.

  • Page 15: Daily Care And Maintenance

    DAILY CARE AND MAINTENANCE splash water scale. Clean scale with soft damp cloth. necessary, apply a mild detergent. harsh, abrasive material, acetone, volatile solvent, thinner alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary. NOTE: some countries, calibration...
