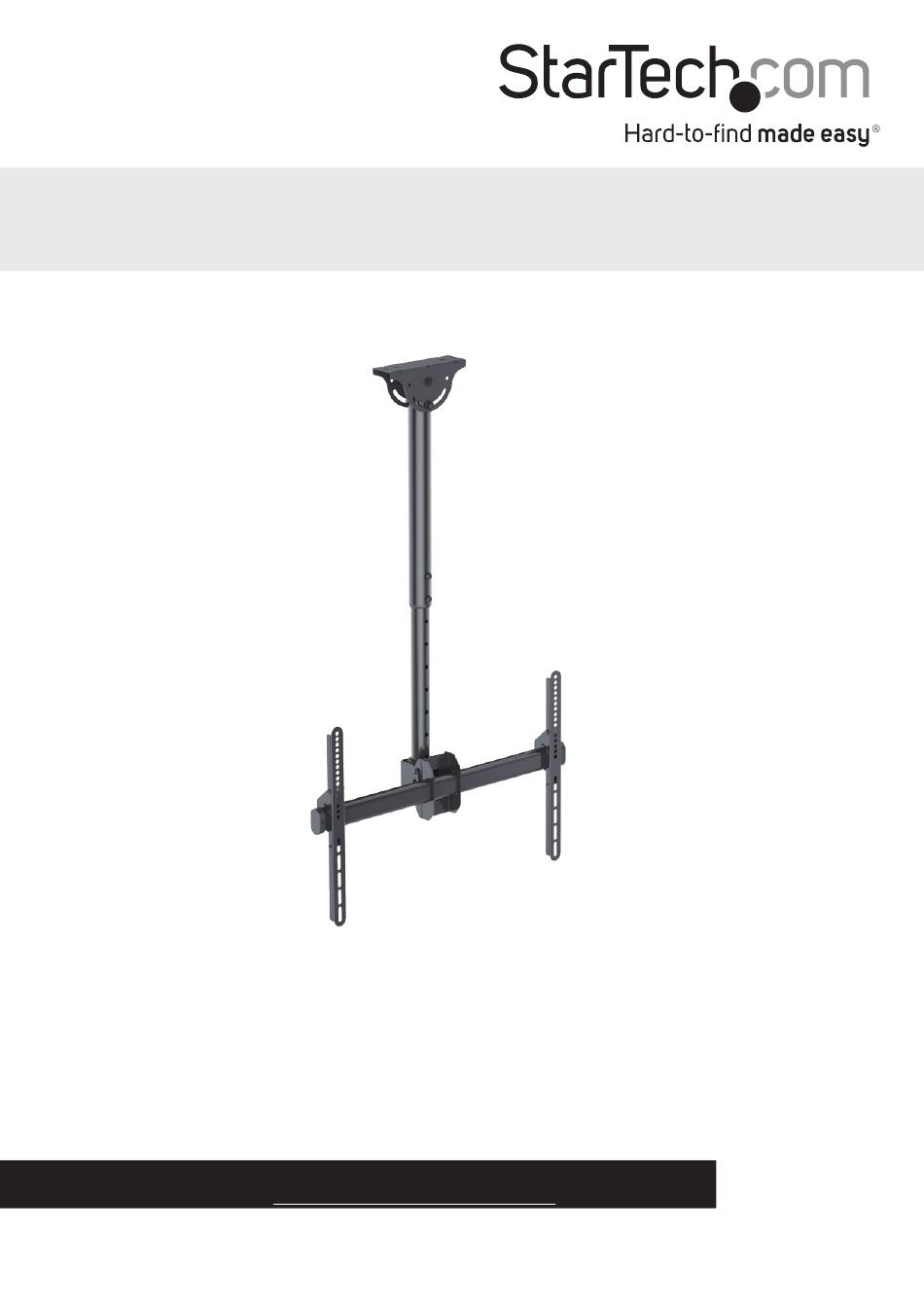

Flat-Screen TV Ceiling Mount
- Short Pole - Full Motion
FPCEILPTBSP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/FPCEILPTBSP.
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com FPCEILPTBSP
Summary of Contents for StarTech.com FPCEILPTBSP
- Page 1 Flat-Screen TV Ceiling Mount - Short Pole - Full Motion FPCEILPTBSP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar personal injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 4: Table Of Contents
Table of Contents Warnings ..............................i Introduction ....................1 Product diagram ............................1 Product dimensions ..........................2 Technical specifications .......................... 3 Package contents ............................4 Requirements ............................. 7 Installation ....................8 Attach the ceiling mount and pole to the ceiling ................. 8 Attach the extension pole to the ceiling mount and pole ............ -
Page 5: Introduction
Introduction Product diagram Ceiling mount and pole Extension pole Horizontal bracket Vertical bracket Vertical bracket Instruction manual... -
Page 6: Product Dimensions
Product dimensions 200 mm -60° +60° 48 mm 40 mm 0° -25° -3° +3° 360° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 200x200 300x300 400x200 400x400 600x400 Rated load 50 kg (110 lb.) Tilt +00 to -250 Screen size Between 813 mm and 1905 mm (32 in. and 75 in.) Swivel 3600 Instruction manual... -
Page 8: Package Contents
Package contents Ceiling mount and pole Extension pole Qty: One Qty: One Horizontal bracket Vertical brackets Qty: One Qty: Two Bolts Nuts Qty: Two Qty: Two Instruction manual... - Page 9 Wrench Hex key Qty: One Qty: One Mounting template M5x14 mm screws Qty: One Qty: Four M6x14 mm screws M6x30 mm screws Qty: Four Qty: Four Instruction manual...
- Page 10 M8x30 mm screws M8x50 mm screws Qty: Four Qty: Four Rectangular washers Small spacers Qty: Four Qty: Eight Large spacers 6.3x55 mm screws Qty: Eight Qty: Four Instruction manual...
-
Page 11: Requirements
Instruction manual Qty: One Requirements • A display or TV that is compatible with one of the VESA mounting hole patterns that FPCEILPTBSP supports • A Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/FPCEILPTBSP. -
Page 12: Installation
FPCEILPTBSP or to provide specific mounting instructions for your ceiling. The FPCEILPTBSP can be mounted to a flat or a sloped ceiling. 1. Use a pencil and the provided mounting template to mark the location on the ceiling where you want to attach the ceiling mount and pole. -
Page 13: Attach The Extension Pole To The Ceiling Mount And Pole
2. Follow the appropriate steps for the type of ceiling that you’re attaching the mount to and attach the ceiling mount and pole to the ceiling. 3. To adjust the vertical position of the pole, use the wrench and the hex key to adjust the nut at the side of the mounting base. - Page 14 3. Slide the extension pole into the ceiling mount and pole, until the extension pole is at the desired height. 4. Line up the holes on the extension pole with the holes on the ceiling mount and pole. 5. Insert the two bolts through the holes in the ceiling mount and pole and the extension pole.
-
Page 15: Attach The Horizontal Bracket
Attach the horizontal bracket 1. Use a wrench to remove the retainer nut from the back of the horizontal bracket. (figure 5) figure 5 Wrench Retainer nut Horizontal bracket 2. Loosen the two nuts at the back of the horizontal bracket. 3. -
Page 16: Prepare The Vertical Brackets
Prepare the vertical brackets 1. Use a screwdriver to remove the screw from the mounting hardware on each of the two vertical brackets. 2. Put the screws to the side; you will need to use them when you hang the TV. 3. -
Page 17: Mount A Tv With A Flush Mounting Surface
Mount a TV with a flush mounting surface To accommodate different TV designs, the FPCEILPTBSP comes with five sets of screws of different lengths and diameters, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the vertical brackets to the TV, complete the following: •... -
Page 18: Mount A Tv With A Recessed Mounting Surface
Mount a TV with a recessed mounting surface To accommodate different TV designs, the FPCEILPTBSP comes with five sets of screws of different lengths and diameters, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the vertical brackets to the TV, complete the following: •... - Page 19 2. Line up the vertical brackets with the mounting holes on the back of the TV. 3. Place the rectangular washers over the vertical brackets. 4. Insert the M6x30 mm screws, M8x30 mm screws, or M8x50 screws through the washers, vertical brackets, spacers, and into the back of the monitor. 5.
-
Page 20: Attach The Tv To The Horizontal Bracket
Attach the TV to the horizontal bracket Warning! Make sure that the weight of the TV doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 50 kg (110 lb.) Warning! Attaching the monitors is a two-person job. - Page 21 2. Flip up the mounting hardware and reinsert the screws that you removed from the mounting hardware on each of the vertical brackets. (figure 11) 3. Use a Phillips screwdriver to tighten the screws in place. figure 11 Screw Vertical bracket Flip up Instruction manual...
- Page 22 4. Make any necessary adjustments to the angle of the TV. (figure 12) figure 12 0° -25° -3° +3° Hex key 360° Wrench Instruction manual...
-
Page 23: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 24 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
