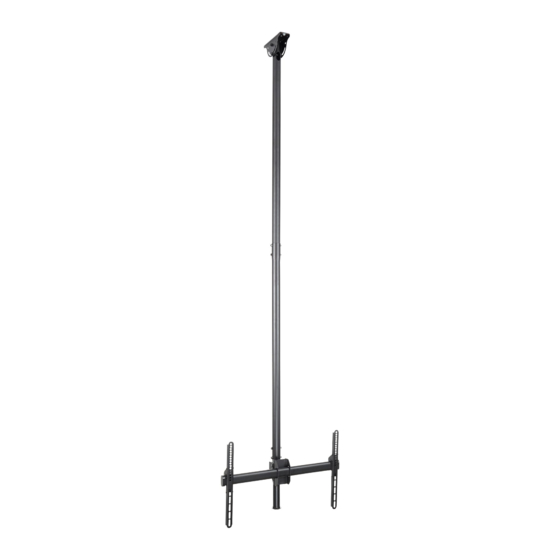

Flat-Screen TV Ceiling Mount
- Long Pole - Full Motion
FPCEILPTBLP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/FPCEILPTBLP.
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com FPCEILPTBLP
Summary of Contents for StarTech.com FPCEILPTBLP
- Page 1 Flat-Screen TV Ceiling Mount - Long Pole - Full Motion FPCEILPTBLP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar personal injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 4: Table Of Contents
Table of Contents Warnings ..............................i Introduction ....................1 Product diagram ............................1 Product dimensions ..........................2 Technical specifications .......................... 3 Package contents ............................4 Requirements ............................. 8 Installation ....................8 Attach the ceiling mount and pole to the ceiling ................. 8 Attach the middle pole to the ceiling mount and pole .............. -
Page 5: Introduction
Introduction Product diagram Ceiling mount and pole Middle pole Lower pole Horizontal bracket Vertical bracket Vertical bracket Instruction manual... -
Page 6: Product Dimensions
Product dimensions -60° +60° 48 mm 48 mm 40 mm +0° -25° -3° +3° 360° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 200x200 300x300 400x200 400x400 600x400 Rated load 50 kg (110 lb.) Tilt +00 to -250 Screen size Between 813 mm and 1905 mm (32 in. and 75 in.) Swivel +180° to -180° Instruction manual... -
Page 8: Package Contents
Package contents Ceiling mount and pole Middle pole Qty: One Qty: One Lower pole TV mount Qty: One Qty: One Vertical brackets Horizontal bracket Qty: Two Qty: One Instruction manual... - Page 9 M8x55 mm screws M8x60 mm screws Qty: Two Qty: Two Nuts Wrench Qty: Four Qty: One Hex key Mounting template Qty: One Qty: One Instruction manual...
- Page 10 M5x14 mm screws M6x14 mm screws Qty: Four Qty: Four M6x30 mm screws M8x30 mm screws Qty: Four Qty: Four M8x50 mm screws Rectangular washers Qty: Four Qty: Four Instruction manual...
- Page 11 Small spacers Large spacers Qty: Eight Qty: Eight Screws Concrete anchors Qty: Four Qty: Four Circular washers Instruction manual Qty: Four Qty: One Instruction manual...
-
Page 12: Requirements
FPCEILPTBLP or to provide specific mounting instructions for your ceiling. The FPCEILPTBLP can be mounted to a flat or a sloped ceiling. 1. Use a pencil and the provided mounting template to mark the location on the ceiling where you want to attach the ceiling mount and pole. - Page 13 figure 1 Mounting template 2. Follow the appropriate steps for the type of ceiling that you’re attaching the mount to and attach the ceiling mount and pole to the ceiling. 3. To adjust the vertical position of the pole, use the wrench and the hex key to adjust the nut at the side of the mounting base.
-
Page 14: Attach The Middle Pole To The Ceiling Mount And Pole
Attach the middle pole to the ceiling mount and pole 1. Place one end of the TV cable through the top hole in the ceiling mount and pole. 2. Run the cable through the ceiling mount and pole, the middle pole, and out the bottom. - Page 15 3. Line up the holes on the middle pole with the holes on the ceiling mount and pole. 4. Insert the two M8x60 mm screws through the holes in the middle pole and the ceiling mount and pole. 5. Attach two nuts to the screws, and use the wrench and the hex key to tighten the nuts in place.
- Page 16 6. Slide the display mount down the lower pole. (figure 5) figure 5 Display mount Lower pole 7. Run the cable through the lower pole and out the bottom. (figure 6) figure 6 Cable Lower pole Instruction manual...
- Page 17 8. Line up the holes on the lower pole with the holes on the middle pole, and insert the two M8x55 mm screws through the poles. 9. Attach two nuts to the screws, and use the wrench and the hex key to tighten the nuts in place.
-
Page 18: Attach The Horizontal Bracket
Attach the horizontal bracket 1. Use a wrench to remove the retainer nut from the back of the horizontal bracket. (figure 8) figure 8 Nuts Wrench Retainer nut Horizontal bracket 2. Loosen the two nuts at the back of the horizontal bracket. 3. -
Page 19: Prepare The Vertical Brackets
Prepare the vertical brackets 1. Use a screwdriver to remove the screw from the mounting hardware on each of the two vertical brackets. 2. Set the screws aside; you will need to use them when you hang the TV. 3. Flip down the smaller piece of the mounting hardware. (figure 10) figure 10 Screw Vertical bracket... -
Page 20: Mount A Tv With A Flush Mounting Surface
Mount a TV with a flush mounting surface To accommodate different TV designs, the FPCEILPTBLP comes with five sets of screws of different lengths and diameters, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the vertical brackets to the TV, complete the following: •... -
Page 21: Mount A Tv With A Recessed Mounting Surface
Mount a TV with a recessed mounting surface To accommodate different TV designs, the FPCEILPTBLP comes with five sets of screws of different lengths and diameters, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the vertical brackets to the TV, complete the following: •... - Page 22 2. Line up the vertical brackets with the mounting holes on the back of the TV. 3. Place the rectangular washers over the vertical brackets. 4. Insert the M6x30 mm screws, M8x30 mm screws, or M8x50 screws through the washers, vertical brackets, spacers, and into the back of the monitor. 5.
-
Page 23: Attach The Tv To The Horizontal Bracket
Attach the TV to the horizontal bracket Warning! Make sure that the weight of the TV doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 50 kg (110 lb.) Warning! Attaching the monitors is a two-person job. - Page 24 2. Flip up the mounting hardware and reinsert the screws that you removed from the mounting hardware on each of the vertical brackets. (figure 14) 3. Use a Phillips screwdriver to tighten the screws in place. figure 14 Screw Vertical bracket Mounting hardware Instruction manual...
- Page 25 4. Make any necessary adjustments to the angle of the TV. (figure 15) figure 15 0° -25° -3° +3° Hex key 360° Wrench Instruction manual...
-
Page 26: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 27 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
