Summary of Contents for StarTech.com FPWARTS2

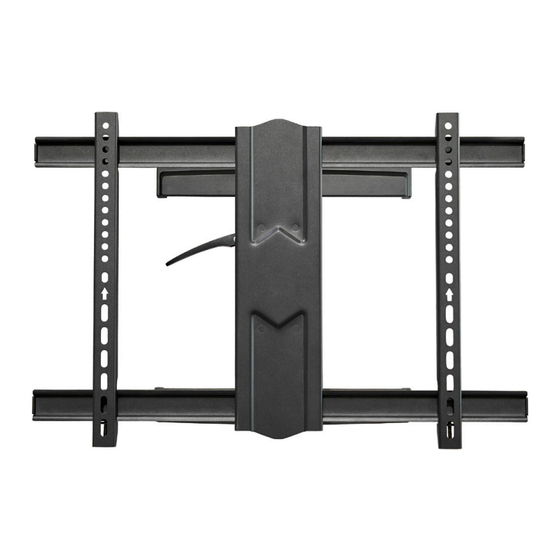

- Page 1 TV Wall Mount | Articulating Arm | For TVs up to 100” Actual product may vary from photos User Manual SKU#: FPWARTS2 For the latest information and specifications visit www.startech.com/FPWARTS2 Manual Revision: 11/07/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Se não tiver o conhecimento necessário para fixar este produto à estrutura de parede que está a usar, contacte um profissional de construção para fazer a instalação em parede ou To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 • El hardware de montaje incluido con este producto puede no ser adecuado para algunas estructuras de pared. Si no tiene la experiencia suficiente para fijar este producto a la estructura de la pared correspondiente, póngase en To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • De bij dit product geleverde montagemiddelen kunnen niet geschikt zijn voor sommige wandstructuren. Als u onvoldoende kennis hebt om dit To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 • 取り付けるモニターの重量が、 本製品で定められた最大積載重量を超えな いようにして下さい。 最大積載重量をオーバーした場合、 傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。 本製品は、 最大75kg までのモニター重量に対応しています。 • 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。 • 壁の構造はお客様の環境ごとに異なります。 ご使用になる壁の構造タイプ と取付け金具が、 取り付けモニターを確実に支持することを確認して下さ い。 確認を怠った場合、 傷害を負う恐れや物的損害が発生する恐れがあり ます。 壁の構造が、 取り付けるモニター重量の最低４倍まで支持できるだけ の強度を持っていなければなりません。 • 本製品に同梱されている取付け金具は、 ご使用になる壁の構造に対して十 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 9: Table Of Contents
Attach the TV Mounting Brackets ....................... 10 Attach the TV to the TV Wall Mount Assembly ................12 Operation ......................13 Adjust the TV............................... 13 Cable Management ..........................15 Warranty Information ..................17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Diagram
Product Diagram Front View TV Wall Mount Assembly TV Mounting Brackets To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Side View
Side View Wall Mounting Tilt Quick- Bracket Release Lever Decorative Covers To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Product Information
User Manual x 1 • Mounting Hardware TV Wall Mount Assembly x 1 • TV Mounting Brackets x 2 • Mounting Screws x 6 • Wall Anchors x 6 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Requirements
Requirements VESA Mount Compatible Display • Phillips Head Screwdriver • Spirit/Bubble Level • Mounting Surface • Technical Specifications Type of Measurement Measurement Weight Capacity Up to 165 lb. (75 kg) Tilt +20 to -150 Screen Size Up to 100’’ (2540 mm) Swivel +600 to -600 VESA Mounting Hole Pattern... -
Page 15: Installation
Hook the top of the TV Wall Mount Assembly onto the top edge of the Wall Mounting Bracket. Lower the bottom portion of the TV Wall Mount Assembly until it makes contact with the Wall Mounting Bracket. (Figure 1) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Insert And Secure The Mounting Plates
TV Wall Mounting Assembly into that location. (Figure 2) Note: Ensure the holes in the TV Wall Mounting Assembly are aligned with the holes in the Wall Mounting Bracket. Wall Mounting Bracket Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 17 Insert one Mounting Plate behind the top of the TV Wall Mount Assembly, where the TV Wall Mount Assembly makes contact with the Wall Mounting Bracket. Ensure the Mounting Plate is oriented so that the two bumps are pointing upwards. Align the holes in the Mounting Plate with the holes in the TV Wall Mount Assembly and the Wall Mounting Bracket.
-
Page 18: Attach The Decorative Covers
Insert one Mounting Plate behind the bottom of the TV Wall Mount Assembly, where the TV Wall Mount Assembly makes contact with the Wall Mounting Bracket. Ensure the Mounting Plate is oriented so that the two bumps are pointing downwards. Align the holes in the Mounting Plate with those found in the TV Wall Mount Assembly and the Wall Mounting Bracket. -
Page 19: Attach The Tv Mounting Brackets
Small and/ or Large Spacers over each VESA Mounting Hole. (Figure 5) Rectangular Washer Mounting Brackets M-Type Screw Spacers Figure 5 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Thread the appropriately sized M-Type Screws (e.g. M5 x 14 mm Screws) through the Rectangular Washers, TV Mounting Brackets, (Optional) Spacers, and into your TV. (Figure 6) Figure 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Attach The Tv To The Tv Wall Mount Assembly
TV Wall-Mount Assembly. (Figure 7) Note: User proper lifting technique when lifting the TV. TV Wall Mount Assembly Wall Mounting Bracket Figure 7 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 22: Operation
Note: It is recommend that two people should complete the following rotation adjustment steps. Partially loosen the four Nuts, located on the back of the H-Bracket, using the Wrench. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 23 H-Bracket. Adjust the tilt angle by tilting the TV forwards or backwards. Pull up the Tilt Quick-Release Lever, located on the back of the H-Bracket. (Figure 10) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 24: Cable Management
Note: Consult a professional in order to complete this portion of the installation. Special tools, installation procedures, and even specialized cables are required for in wall cable management. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 25 Cable Management Housing Figure 11 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 26: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 27 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
