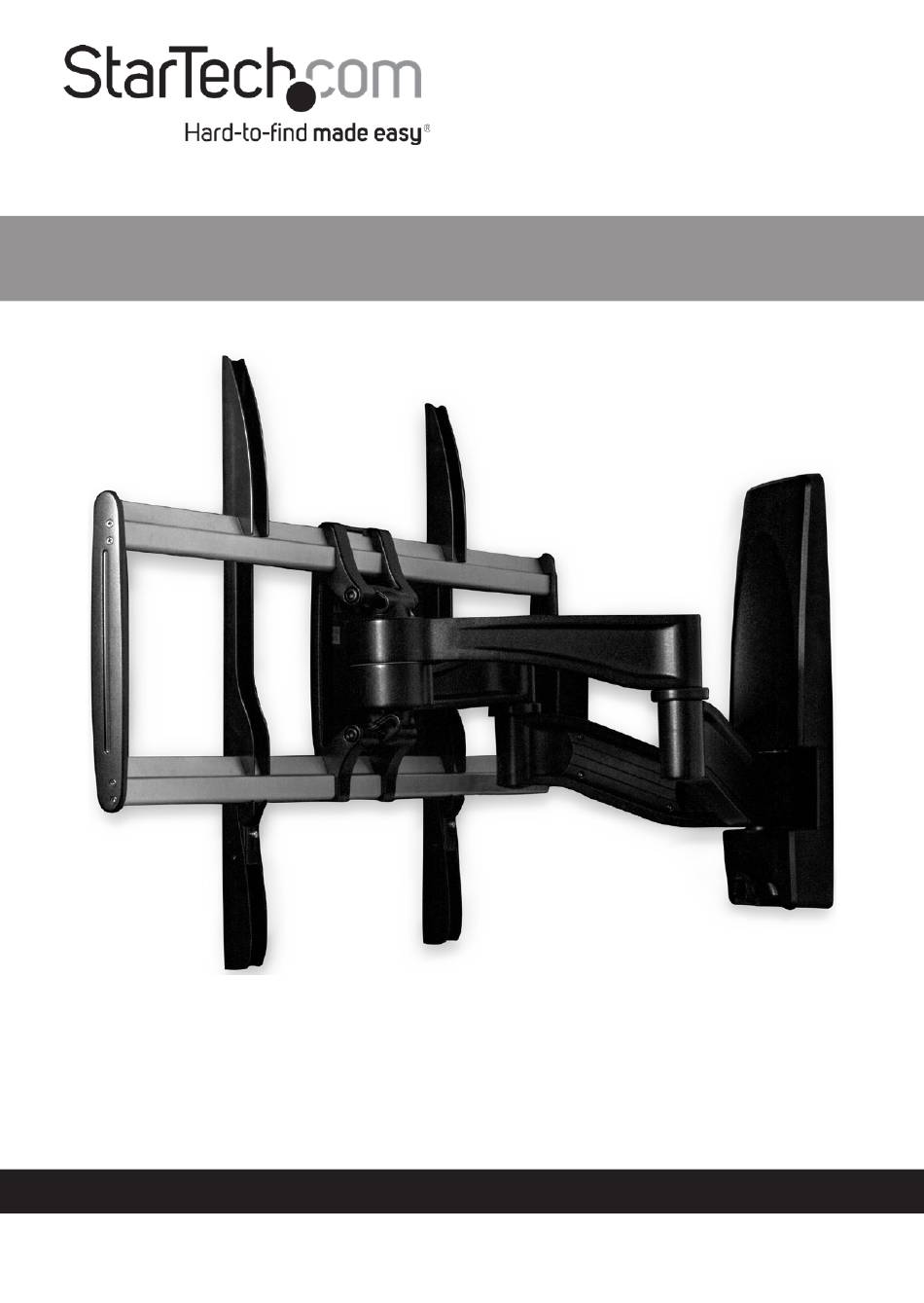

- Page 1 TV Wall Mount - Full Motion - Aluminum and Steel - Premium Actual product may vary from photos User Manual SKU#: FPWARPS For the latest information and specifications visit www.startech.com/FPWARPS Manual Revision: 12/05/2018...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Safety Statements
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Se não tiver o conhecimento necessário para fixar este produto à estrutura de parede que está a usar, contacte um profissional de construção para fazer a instalação em parede ou To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 • El hardware de montaje incluido con este producto puede no ser adecuado para algunas estructuras de pared. Si no tiene la experiencia suficiente para fijar este producto a la estructura de la pared correspondiente, póngase en To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • De bij dit product geleverde montagemiddelen kunnen niet geschikt zijn voor sommige wandstructuren. Als u onvoldoende kennis hebt om dit To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 • 取り付けるモニターの重量が、 本製品で定められた最大積載重量を超えな いようにして下さい。 最大積載重量をオーバーした場合、 傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。 本製品は、 最大45kg までのモニター重量に対応しています。 • 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。 • 壁の構造はお客様の環境ごとに異なります。 ご使用になる壁の構造タイプ と取付け金具が、 取り付けモニターを確実に支持することを確認して下さ い。 確認を怠った場合、 傷害を負う恐れや物的損害が発生する恐れがあり ます。 壁の構造が、 取り付けるモニター重量の最低４倍まで支持できるだけ の強度を持っていなければなりません。 • 本製品に同梱されている取付け金具は、 ご使用になる壁の構造に対して十 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 9: Table Of Contents
Prepare FPWARPS for Mounting ......................5 Fasten the Mount to a Wall ........................6 Mount the TV .............................. 7 Cable Management ..........................10 Operation ....................11 Adjust the TV............................... 11 Warranty Information ................14 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Diagram
Product Diagram Product Dimensions Note: All measurements are listed in millimeters. Front View Side View To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Product Parts
Product Parts Angled View Vertical Brackets Decorative Covers TV Wall-Mount Assembly To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Technical Specifications
Minimum: 200x100 Maximum: 810x500 Weight Capacity Up to 165 lb. (75 kg) Tilt +150 to -150 Screen Size 32 to 75’’ (812 to 1905 mm) Swivel +600 to -600 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Product Information
TV Wall-Mount Assembly x 1 • Concrete Anchors x 8 • Wall Screws x 8 • Requirements VESA Mount Compatible Display • Phillips Head Screwdriver • Mounting Surface • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Installation
Installation Prepare FPWARPS for Mounting Remove the two Decorative Covers: Release the two Tabs found on the inside of the Decorative Covers by applying pressure to both sides of the Decorative Covers: Squeeze both sides of the bottom of the upper •... -
Page 15: Fasten The Mount To A Wall
Decorative Cover along the Mounting Surface, towards the TV Wall-Mount Assembly, until you hear or feel the Tabs of each Decorative Cover snap into place. (Figure 2) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Mount The Tv
Note: Not all TVs will have placeholder VESA Hardware. Ensure you are only removing the four Screws for the VESA mount. Do not remove any of the screws from your TV’s structural assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 17 Warning! Do not overtighten these Screws. If you encounter any unexpected resistance as you are fastening these Screws, immediately stop and attempt to use a different length of M-Type Screw. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 18 Figure 5 Tip: Align the top hooks of the Vertical Brackets with the top rails of the TV Wall-Mount Assembly. (Figure 5) Vertical Bracket TV Wall- Mount Assembly To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 19: Cable Management
Figure 6 Vertical Bracket Phillips Head Screw Cable Management Route your Power and Video Cables up through the lower Decorative Cover. (Figure 7) Figure 7 TV Wall-Mount Assembly Cables To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 20: Operation
Route the Power and Video Cables behind the Plates on the TV Wall-Mount Assembly arms. Note: It may be necessary to remove the Plates from the TV Wall-Mount Assembly. To remove these Plates: use a Phillips Head Screwdriver to remove the four Phillips Head Screws. - Page 21 Adjust the TV by tilting to your desired viewing angle. Tighten the Tilt Adjust Screws located on the TV Wall- Mount Assembly using the 6 mm Hex Key. (Figure 10) Figure 10 Tilt Adjust Screw To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 22 Adjust the TV by swiveling it to the desired viewing angle. Tighten the Swivel Adjust Screws located on the TV Wall- Mount Assembly using the 6 mm Hex Key. (Figure 11) Figure 11 Swivel Adjust Screw To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 23: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 24 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
