StarTech.com BRACKET125PT Quick Start Manual

Instruction manual
2.5" SSD/HDD Mounting Bracket for 3.5" Drive Bay - Tool-less Installation
BRACKET125PT
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Important: Read and understand the entire manual before
you use this product, and follow the instructions as they are
outlined in the manual.
Failure to do so might result in property damage or device
failure.
Introduction

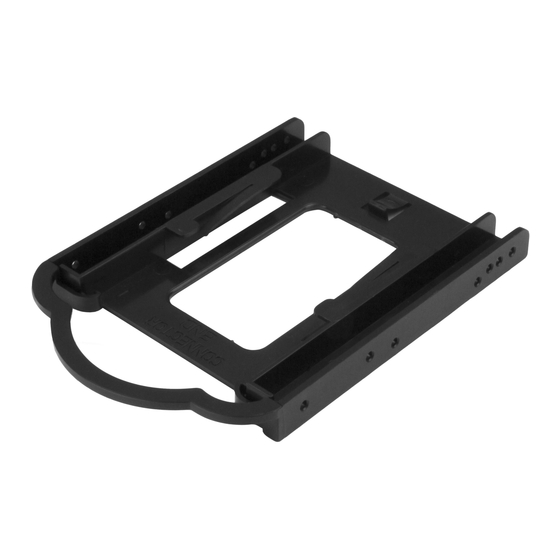

You can use the BRACKET125PT to install a 2.5 in. SSD (solid-state
drive) or HDD (hard disk drive) into a 3.5 in. drive bay. The tool-less
design of the BRACKET125PT makes it easy to install drives.

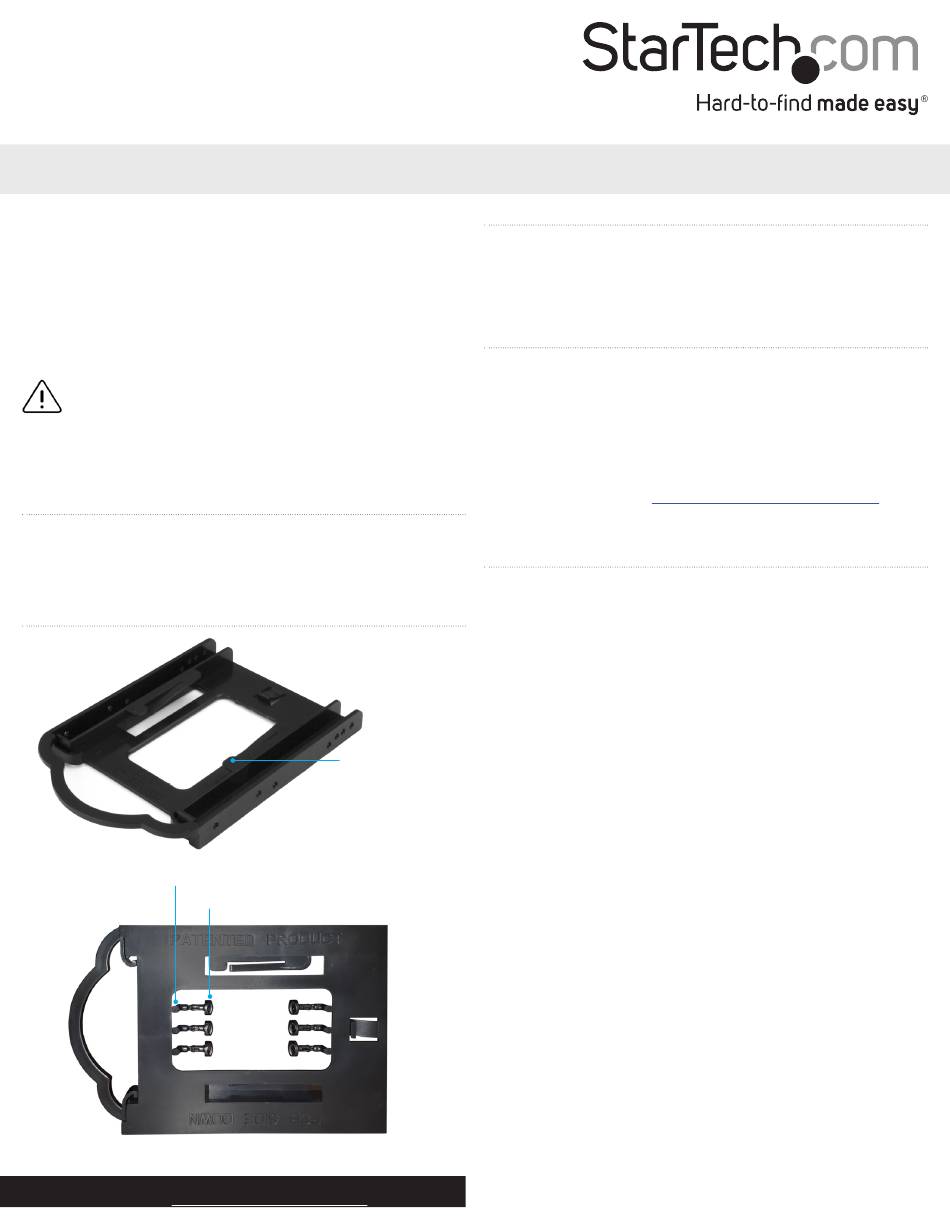

Product diagram
Plastic post
Plastic peg
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/BRACKET125PT.
Package contents
• 1 x 2.5 in. SSD/HDD to 3.5 in. mounting bracket
• 6 x plastic pegs
• 1 x instruction manual
System requirements
• Computer with an available 3.5 in. drive bay
• One 2.5 in. SSD or HDD
The operating system of your computer will detect the drive and
automatically install it.
System requirements are subject to change. For the latest
requirements, please visit www.StarTech.com/BRACKET125PT.
Install the drive and bracket
Warning! Hard drives and storage enclosures should be handled
carefully, especially when they're transported. If you're not careful
with your drives, you may experience lost data as a result. Always
handle storage devices with caution. Make sure that you're properly
grounded by wearing an anti-static strap when you install any
computer component. If an anti-static strap isn't available, touch a
large grounded metal surface for several seconds to discharge any
built-up static electricity.
Tenon 1. Remove the six Plastic pegs from the Plastic posts that are
(plastic projections)
2. Pull the Plastic posts off of the mounting bracket and discard the
3. Align your SSD or HDD with the Tenons (plastic projections) on
4. Turn off your computer and any devices or peripherals that are
*actual product may vary from photos
5. Unplug the power cable from the back of your computer.
6. Disconnect any peripheral devices that are connected to your
7. Remove the cover from your computer case. Consult the
8. Place the bracket into the 3.5 in. hard drive slot, and use the
9. Connect a power connection from the computer's power supply
attached to the mounting bracket.
posts.
the mounting bracket, and gently push the drive into place.
connected to it (for example, printers, external hard drives, and
so on).
computer.
documentation that came with your computer for details about
how to do this safely.
Plastic pegs that you removed in step 1 to secure the drive in
place.
to the drive's power connector.
(continued on next page)
Manual Revision: 07/10/2016
