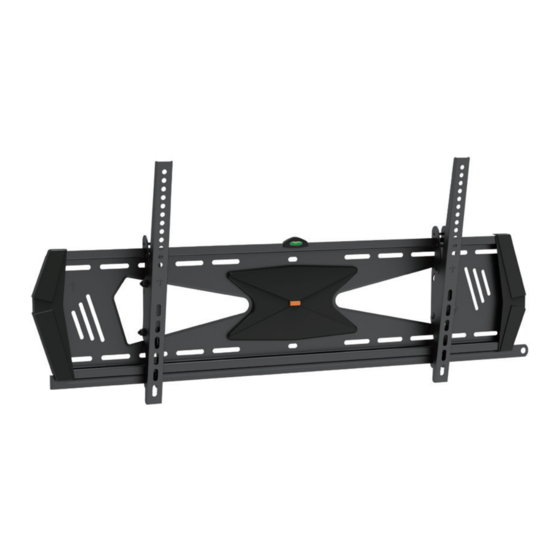

Flat-Screen TV Wall Mount - Low Profile - Tilting - Anti-Theft FPWTLTBAT *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
Page 2
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
Page 3
Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in personal Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar injury or property damage. em ferimentos pessoais ou danos de propriedade.
Introduction Product dimensions 985 mm min 300 mm to max 810 mm +5° -10° 51 mm 29 mm (depth) Product diagram Decorative cover Level Wall mount Decorative cover Safety bar Right adapter bracket Left adapter bracket Instruction manual...
Technical specifications Unless otherwise indicated, the technical specifications in the table below apply to the TV or display. Type of measurement Measurement VESA mounting hole pattern on the TV mount 300x300 400x200 400x400 600x400 800x400 Weight capacity of TV mount 40 kg (88 lb.) Tilt +50 to -100...
Package contents Wall mount Safety bar Qty: One Qty: One Left adapter bracket Right adapter bracket Qty: One Qty: One Level Decorative covers Qty: One Qty: Two Instruction manual...
Page 8
Decorative cover screws M5x14 mm screws Qty: Four Qty: Four M6x14 mm screws M6x30 mm screws Qty: Four Qty: Four M8x30 mm screws M8x50 mm screws Qty: Four Qty: Four Instruction manual...
Page 9
Rectangular washers Small spacers Qty: Four Qty: Eight Large spacers Screws Qty: Eight Qty: Six Concrete anchors Circular washers Qty: Six Qty: Six Instruction manual Qty: One Instruction manual...
Requirements • A display or TV that is compatible with one of the VESA mounting hole patterns FPWTLTBAT supports • A Phillips screwdriver • A padlock if you want to secure the display or TV Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/FPWTLTBAT.
Installation Attach the decorative covers 1. Place a decorative cover over one end of the wall mount. 2. On the back of the wall mount, insert a decorative cover screw through the top hole in the wall mount and into the decorative cover. Tip! There are arrows on the front of the wall mount to indicate which side is the front.
Attach the wall mount to the wall Warning! The wall mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should be capable of supporting at least four times the weight of the mounted equipment. The mounting hardware included with this product may not be adequate for installation on certain wall structures.
Attach the adapter brackets to a flush mounting surface To accommodate different TV designs, the FPWTLTBAT comes with five sets of screws of different lengths and diameters, washers with two hole sizes, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the adapter brackets to the TV, complete the following: •...
Page 15
3. Line up the adapter brackets with the mounting holes on the back of the TV. 4. Place the rectangular washers over the adapter brackets. 5. Insert the M5x14 mm screws or M6x14 mm screws through the rectangular washers, adapter brackets, and into the back of the TV. 6.
Attach the adapter brackets to a recessed mounting surface To accommodate different TV designs, the FPWTLTBAT comes with five sets of screws of different lengths and diameters, washers with two hole sizes, and two sizes of spacers. 1. To select the combination of mounting hardware that you need to use to attach the adapter brackets to the TV, complete the following: •...
Page 17
3. Position the adapter brackets so that the arrows on the flat side of the adapter brackets are pointing towards the top of the TV and the nuts on the adapter brackets are pointing towards the outside edges of the TV. (figure 7) figure 7 top of the TV Left adapter bracket...
Page 18
4. Line up the adapter brackets with the mounting holes on the back of the TV. 5. Place the rectangular washers over the adapter brackets. 6. Insert the M6x30 mm screws, M8x30 mm screws, M8x50 mm screws through the rectangular washers, adapter brackets, spacers, and into the back of the TV. 7.
Hook the TV onto the wall mount Warning! Make sure that the weight of the TV doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the product. This product can support the following weight: Up to 40 kg (88 lb.) Warning! Attaching the TV is a two-person job.
2. To prevent someone from removing the safety bar, attach a padlock (not provided) to the hole in the end of the safety bar. (figure 11) figure 11 Padlock Adjust the angle of the TV • To adjust the angle of the TV, push or pull on the top or bottom of the TV. (figure 12) figure 12 Instruction manual...
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Page 23
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
