Prepare The Temperature/Humidity Station; Set The Transmitter Id - DAVIS Wireless Temperature/Humidity Station Install Manual

P
REPARING THE
Removing Radiation Shield Plates
1. Turn the radiation shield assembly upside down. You need to remove the radiation
shield plates to access the Sensor Interface Module, or "SIM".
The SIM is where you will install the battery and set the transmitter ID.
2. Remove the wing nuts, lock washers and flat washers.
3. Lift two closed plates and then three open plates, sliding them off the threaded studs.
You should now be able to see the SIM.

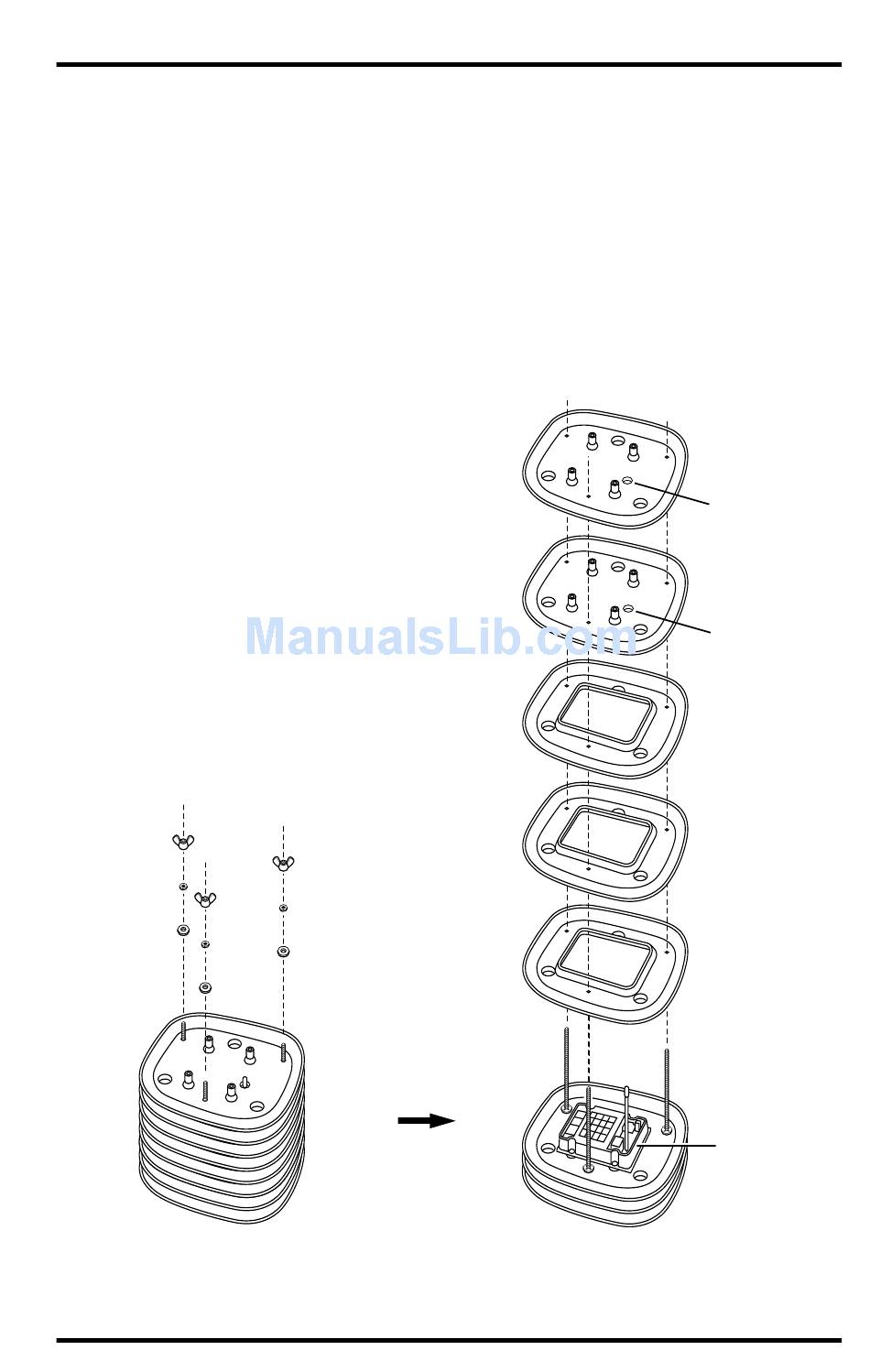

Radiation Shield Assembly (upside-down)
Preparing the Temperature/Humidity Station
T /H
EMPERATURE
#8 Wing Nut
#8 Lock Washer
#8 Flat Washer
R R
EMOVING
S
UMIDITY TATION
Closed Plate
Closed Plate
Open Plate
Open Plate
Open Plate
S P
ADIATION HIELD LATES
Antenna
Deployment
Hole
Antenna
Deployment
Hole
Sensor
Interface
Module
(SIM)
