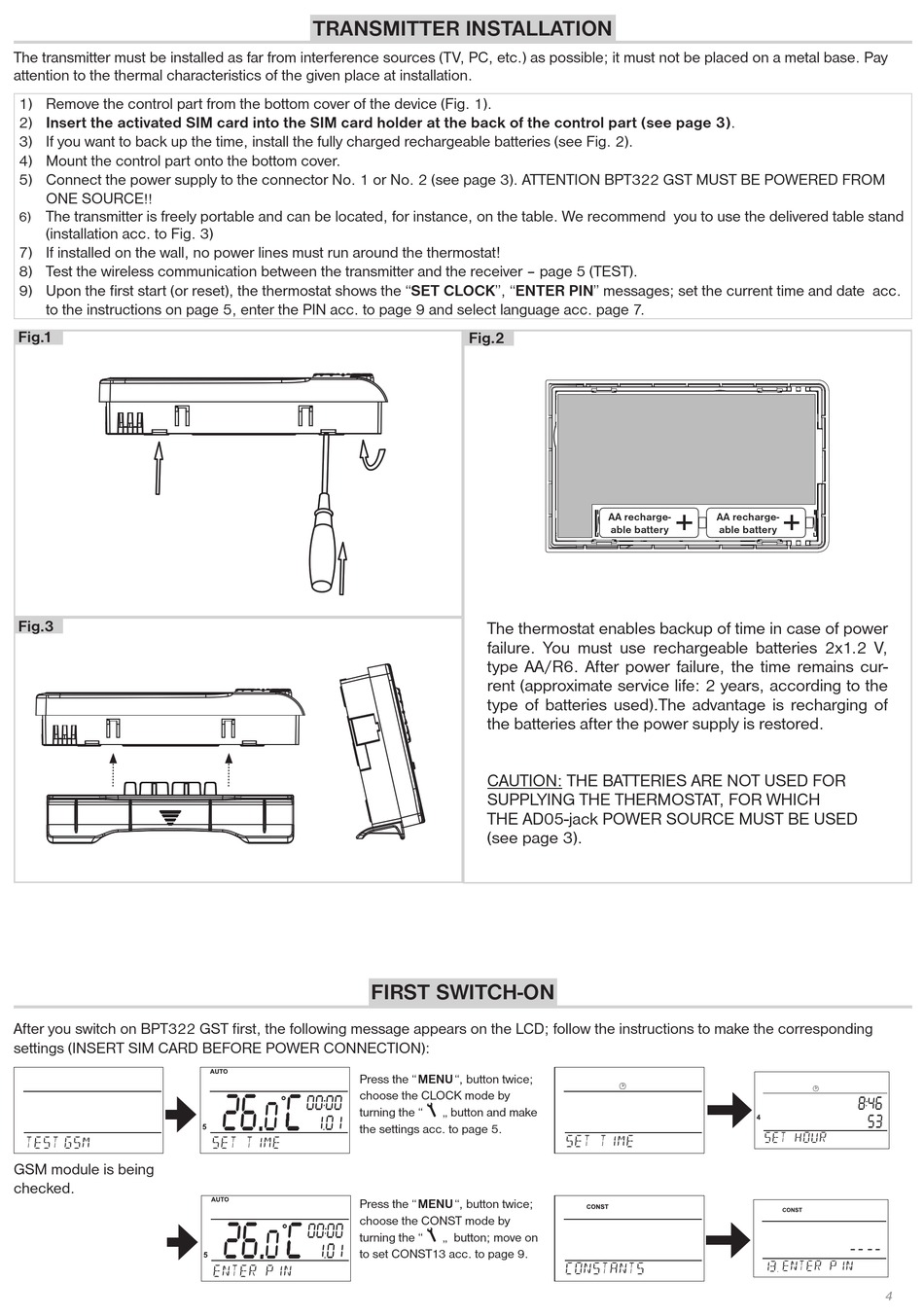

Transmitter Installation; First Switch-On - ELEKTROBOCK BPT322 GST Manual

The transmitter must be installed as far from interference sources (TV, PC, etc.) as possible; it must not be placed on a metal base. Pay
attention to the thermal characteristics of the given place at installation.
1) Remove the control part from the bottom cover of the device (Fig. 1).
2) Insert the activated SIM card into the SIM card holder at the back of the control part (see page 3).
3) If you want to back up the time, install the fully charged rechargeable batteries (see Fig. 2).
4) Mount the control part onto the bottom cover.
5) Connect the power supply to the connector No. 1 or No. 2 (see page 3). ATTENTION BPT322 GST MUST BE POWERED FROM
ONE SOURCE
!!
The transmitter is freely portable and can be located, for instance, on the table. We recommend you to use the delivered table stand
6)
(installation acc. to Fig. 3)
7) If installed on the wall, no power lines must run around the thermostat!
8) Test the wireless communication between the transmitter and the receiver – page 5 (TEST).
9) Upon the first start (or reset), the thermostat shows the "SET CLOCK", "ENTER PIN" messages; set the current time and date acc.
to the instructions on page 5, enter the PIN acc. to page 9 and select language acc. page 7.
Fig.1
Fig.3
After you switch on BPT322 GST fi rst, the following message appears on the LCD; follow the instructions to make the corresponding
settings (INSERT SIM CARD BEFORE POWER CONNECTION):
TEST GSM
GSM module is being
checked.

TRANSMITTER INSTALLATION

FIRST SWITCH-ON

Press the " MENU ", button twice;
choose the CLOCK mode by
turning the "
the settings acc. to page 5.
SET TIME
Press the " MENU ", button twice;
choose the CONST mode by
turning the "
to set CONST13 acc. to page 9.
ENTER PIN
Fig.2
AA recharge-
able battery
The thermostat enables backup of time in case of power
failure. You must use rechargeable batteries 2x1.2 V,
type AA/R6. After power failure, the time remains cur-
rent (approximate service life: 2 years, according to the
type of batteries used).The advantage is recharging of
the batteries after the power supply is restored.
CAUTION: THE BATTERIES ARE NOT USED FOR
SUPPLYING THE THERMOSTAT, FOR WHICH
THE AD05-jack POWER SOURCE MUST BE USED
(see page 3).
„ button and make
SET TIME
„ button; move on
CONSTANTS
AA recharge-
able battery
SET HOUR
13 ENTER PIN
