with the receiver to the socket

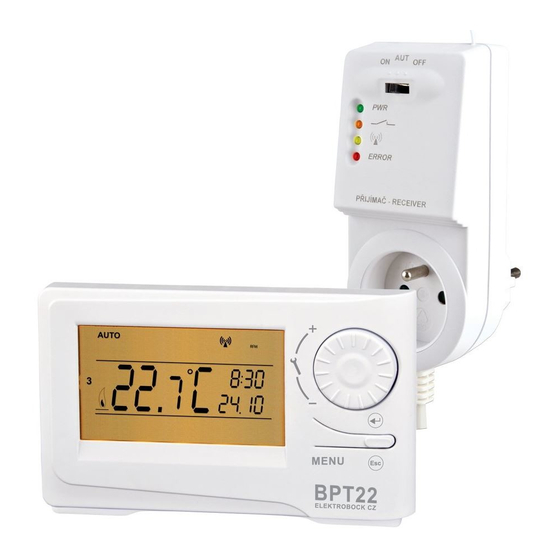

BT22 is an ideal solution for places where it is expensive or completely impossible to pull wires from
thermostat to the boiler. It is designed for automatic regulation of heating systems in family houses and
housing units with own boiler (gas, electric). Large backlit display on allows the transmitter to control the
thermostat even in the dark. In addition, it offers intuitive navigation in the selected language (CZ / PL /
EN / DE / RU / SK). The receiver is equipped with a code self-learning system and E-EPROM memory, which
stores the save code even in the event of a power failure. BT22 works with two-way communication on the
frequency 433.92 MHz. The range of the set can be up to 35 m (built-in).
receiver - to the socket
•
Receiver power supply 230 V / 50 Hz
•
Receiver with CODE SELF-LEARNING sys-
tem and with E-EPROM memory (retains
the code even when power failure)
•
Two-wire connection to the boiler (po-
tential-free contact)
•
Indication LED for status signaling
- power indication
- signal transmission / reception
- fault condition
- relay closed
- is freely portable
- in a modern design
- with stand for stable placement in the most
suitable place (included in the package)
MADE IN CZECH REPUBLIC
BT22
BT22
WIRELESS THERMOSTAT
BIDIRECTIONAL COMMUNICATION
- guarantees the reliability of signal transmission
and enables obtain feedback
transmitter
•
Large clear and backlit display
•
Intuitive navigation in the selected language
(CZ / PL / EN / DE / RU / SK)
•
Preset weekly program
•
6 temperature changes for each day
•
Programming after 10 minutes and 0.5 ° C
•
Programming by day or Mon-Fri, Sat-Sun and
Mon-Sun
•
HYSTERESIS selection 0.1 ° C to 6 ° C
•
Possibility of short-term temperature change
•
Manual mode (MANU)
•
Permanent OFF
•
Holiday mode
•
Antifreeze mode (3 ° C)
•
Function to test the correct connection (TEST)
•
Adjustable temperature correction
•
Auto selection. DST / WINTER time changes
•
Alkaline power supply. batteries 2 x 1.5 V / AA
Advertisement
Table of Contents
Related Manuals for ELEKTROBOCK BT22
Summary of Contents for ELEKTROBOCK BT22
- Page 1 EN / DE / RU / SK). The receiver is equipped with a code self-learning system and E-EPROM memory, which stores the save code even in the event of a power failure. BT22 works with two-way communication on the frequency 433.92 MHz. The range of the set can be up to 35 m (built-in).
- Page 2 LEARNING CODE The BT22 assembly is factory configured and ready for use - after commissioning the receiver and transmitter, simply use the TEST function (see page 6)! However, if the receiver‘s memory is cleared - the red LED flashes, use the following procedure: Press the “FUNCTION BUTTON”...
- Page 3 • we will remove the protective paper from the batteries and the transmitter will be fully functional (BT22 are batteries) a part of the package) • snap the back cover back - the transmitter is freely portable and can be placed, for example, on a table.
- Page 4 QUICK CHANGE OF REQUIRED TEMPERATURE Press twice on the button the required temperature “ “, flashes on the display. change the By turning the button “ “ desired temperature and press the button “ “ In AUTO mode, the change will last until the next change is given program.
- Page 5 PROG (programming) Weekly program settings with up to 6 changes per day. Press twice on the button “ MENU “, by turning the button “ “ select PROG mode and confirm with the button “ “. The number of days for programming flashes on the display, by turning the button “...
- Page 6 0°C up to +40°C Here is ELEKTROBOCK CZ s.r.o. declares that the BT22 type of radio equipment complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.elbock.
