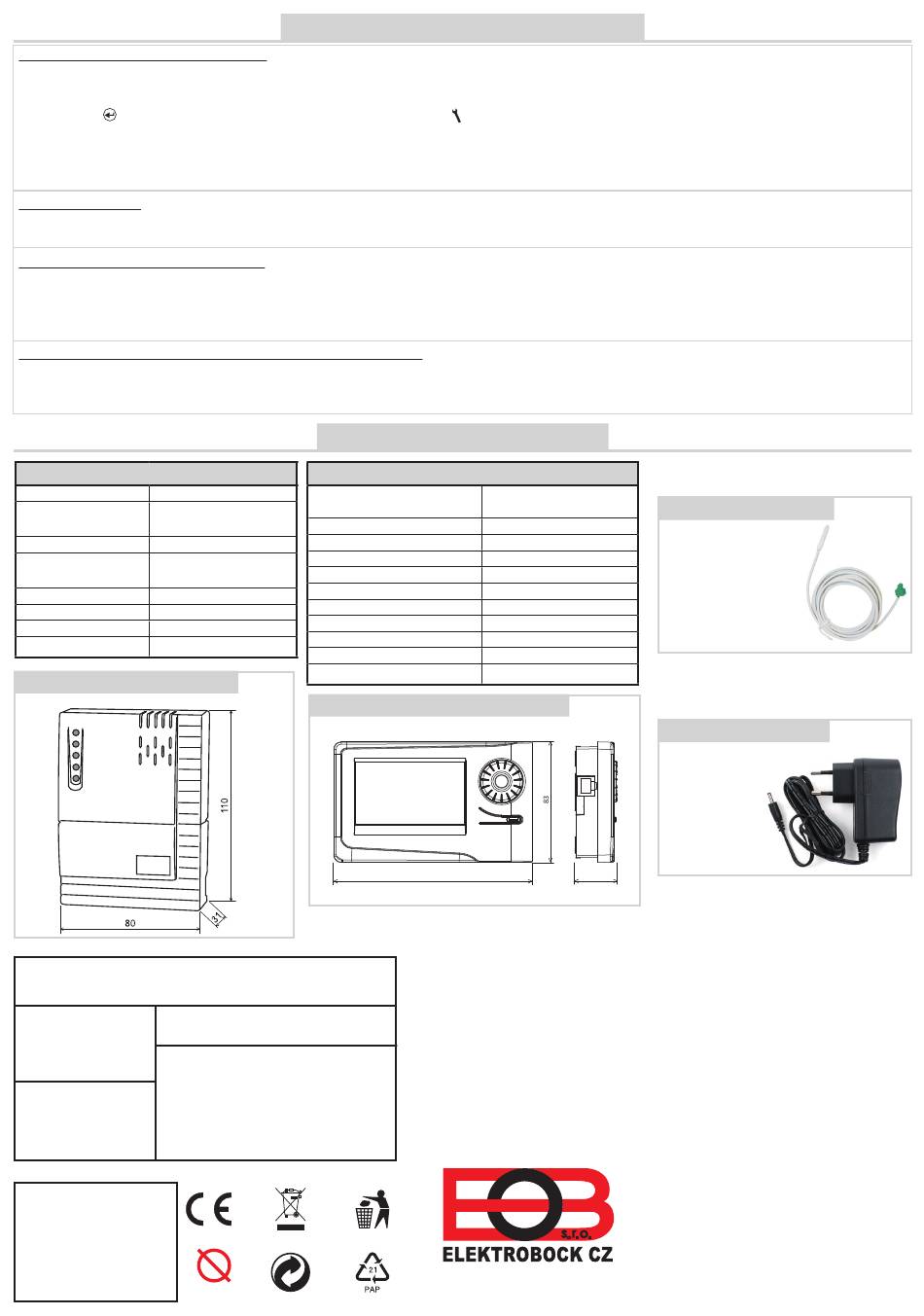

USING AND SETTING OF BPT322 GST:
The thermostat is located in a room where anti-freeze temperature must be maintained (e.g. 7°C).
1. Connect the BPT322 GST strictly according to the instructions.
2. Choose the MANU mode.
3. Press the " " button and set the temperature of 7 °C by turning the "
4. Before arriving at the object, write an SMS in your mobile with the wording: Temp 23; then send the SMS to the number of the SIM card inserted in your
thermostat. After receiving the message, the thermostat automatically switches on the heating system until the desired temperature is reached.
Then BPT322 GST automatically sends the "BACK SMS message" informing you about the temperature change made. After arriving at the object, you can
change the temperature according to your needs on the thermostat directly.
VOLTAGE FAILURE:
By short voltage failure on receiver comes to connection establishment with transmitter within one hour. It is necessary to set only time (all other settings
remain saved in memory), if there are not rechargeable batteries in the transmitter.
RED LED LIT ON RECEIVER (FAILURE):
The thermostat is in failure mode (2 minutes ON and 8 minutes OFF).
1) Check the transmitter (power supply control).
2) Test the thermostat for correct connection by using TEST mode see page 5.
If the connection between transmitter and receiver is not established, please contact the service department under www.elbock.cz.
THE THERMOSTAT DOES NOT RESPOND TO SMS COMMANDS:
1) Check the transmitter (power supply control).
2) Check if the SIM card is activated.
If the connection between transmitter and receiver is not established, please contact the service department under www.elbock.cz
Receiver
Power supply 230 V/ 50 Hz
Communication
two-way
type
Frequency 433.92 MHz
300 m
Range
35 m
Sensitivity < -102 dBm
Output relay, max. 8 A
Protection IP20
Working temp. 0°C TO +40°C
Dimensions - receiver:

CERTIFICATE OF GUARANTEE

(guarantee period for the product amounts to 2 years)
date of sale:
product No.:
stamp of shop:
examined by:
in compliance with RoHS
PRACTICAL EXAMPLES OF USING

TECHNICAL PARAMETERS

Transmitter
Power supply
GSM module
Aerial
HF power
(free area)
Frequency
(built-up area)
Hysteresis
Adjustable temp. range
Temperature setting
Measurement accuracy
Protection
Working temperature
Dimensions - transmitter:
Pb
LEAD FREE
" button.
5 V/ DC, 2.5 A,
typ AD05 - Jack
SIM 900
direct 1dB
< 10 mW
433.92 MHz
0.1 to 6°C
+5°C to 39°C
po 0.5°C
± 0,5°C
IP20
0°C to +40°C
136.5 28.5
In case of guarantee or post-guarantee service, send the
thermostat including proof of purchase to the manufacturer's
address. The guarantee does not cover faults resulting from
incompetent installation or interference in the device design.
DECLARATION OF CONFORMITY
We, ELEKTROBOCK CZ s.r.o., herewith declare that the product
BPT322 GST conforms to the basic requirements and other
corresponding provisions of the Directive 1999/5/EC.
Issued: 01.04.2012
MADE IN CZECH REPUBLIC
External sensor:
not included in the
packing, type CT04-10k,
CYXY 2 x 0.5 mm,
10 kΩ, lenght 3 m,
plastic case PVC
(CT01-10k and
CT02-10k sensors can
also be used)
Power source:
included in the
packing
type AD05-Jack,
5V/ DC, 2.5 A
on www.elbock.cz
ELEKTROBOCK CZ s.r.o.
Blanenská 1763
Kuřim 664 34
Tel.: +420 541 230 216
www.elbock.cz
