" OF:F " function:
Press Fce , by means of select OF:F function and
confirm by pressing . In this way, the socket is
i
permanently switched off. In this mode, symbol OF:F and data on current
temperature/time are showed alternatively on the display. To cancel this function,
press Fce button and select different mode with using of
Child lock:
It serves for keyboard blocking, as a protection against unauthorized handling.
Press Fce button, then simultaneously press
is blocked. Message LO:C (LOCK) is shortly displayed on
the display. The function can be cancelled, e.g. the keyboard
unblocked by simultaneous pressing of and
P
! RESET - restoring the default settings
Erasing of programms:
- Press the Fce button, by pressing select function PA:r and confirm by
button.
i
- By pressing buttons select PA:r9, confirm by
- Simultaneously press and buttons, it will restore the factory settings!
P
Note: Use only when necessary, all saved changes will be deleted!
Installation:
1, Connect TS20 in 230V/50 Hz socket and let it charge for approx. 12 hours.
2, Program it according to instructions (register respective data in the table).
3, Connect the heating body which you want to regulate.
Error messages:
If following error message is shown on the display, contact
immediately the manufacturer (it is dealing with a failure
of temperature sensor).
Table for registration of your programs
= °C
= °C
progr. 1 2 3 4
days
Mon
Tue
Wed
Thu
Fri
Sat
Sun

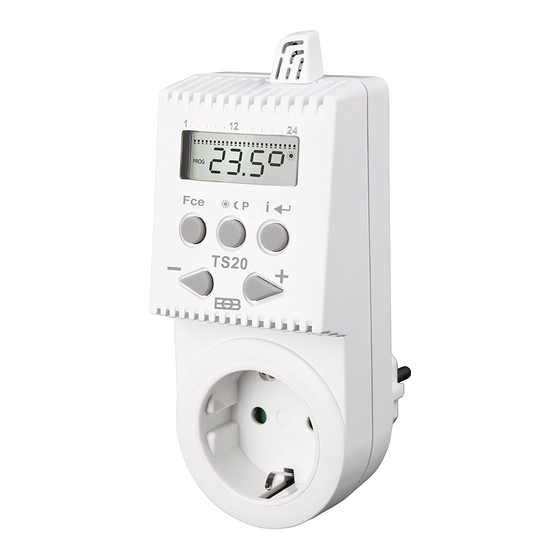

Thermo-switch socket
TS20 is a digitally switched socket for automatic regulation of electrical
heating systems (direct heating bodies, towel driers, fires) in family
houses, flats, offices. Up to six time intervals with three temperature
buttons. levels can be set for each day.
Further advantages:
8 different temperature program for each day
and now the keyboard
P 8
the possibility to set three temperature levels (
8
setting the HYSTERESIS in the range from 0.1°C to 6°C
8 easy control and programming
.
8
possibility to make a short-term change in program temperature
8
permanent switching off of the appliance ( OF:F )
8
temperature regulation at steps of 0.5°C
8
well-arranged display
8
i
back-up battery NiMH 2.4 V, up to 100 operating hours
TECHNICAL PARAMETERS
Power supply
Number of adjustable temp.
Hysteresis
Minimal programming time
Range of possible temp.
Step of temperature setting
Minimal step of indication
Measurement accuracy
(ERROR)
Back-up battery
Output
P = °C Send the socket for guarantee and after guarantee service to manufacturer's address.
5 6 CERTIFICATE OF GUARANTEE
(guarantee period for the product amounts to 2 years)
product No.:
examined by:
TS20 TS20
,
230 V/ 50 Hz
3 different temperatures for each day
0.1 to 6°C with steps of 0.1°C
10 minutes
3 to 40°C
step of 0.5°C
0.1°C
± 1°C
NiMH 2.4 V/ > 100 hours
relay, max. 16 A
ELEKTROBOCK CZ s.r.o.
Blanenská 1763
Kuřim 664 34
Tel.: +420 541 230 216
date of sale:
www.elbock.cz
MADE IN CZECH REPUBLIC
stamp of shop:
Pb
LEAD FREE
compliance with RoHS
Temperature
regulation
of appliance
DESCRIPTION OF CONTROLS
, P )
build-in
temperature
sensor
= selection of functions
Fce
P =
selection of temperatures
i
=
confirmation (ENTER),
information on required
temperature (PO:t), present
time/temperature
(CL:O/tE:P),sum of
operating hours
(SU:MA), and day (dE:n)
= setting of temperature,
time, functions
MADE IN CZECH REPUBLIC
TS20 TS20
T h e r m o -
s w i t c h
s o c k e t
Is suitable for:
electrical
heating
plates
direct-
heating
bodies
electrical
tubular
radiators
