Backlit display
After you press any button,
the display is backlit automatically
for at least 5 s.
6 7 8 9
5
4
3
2
1

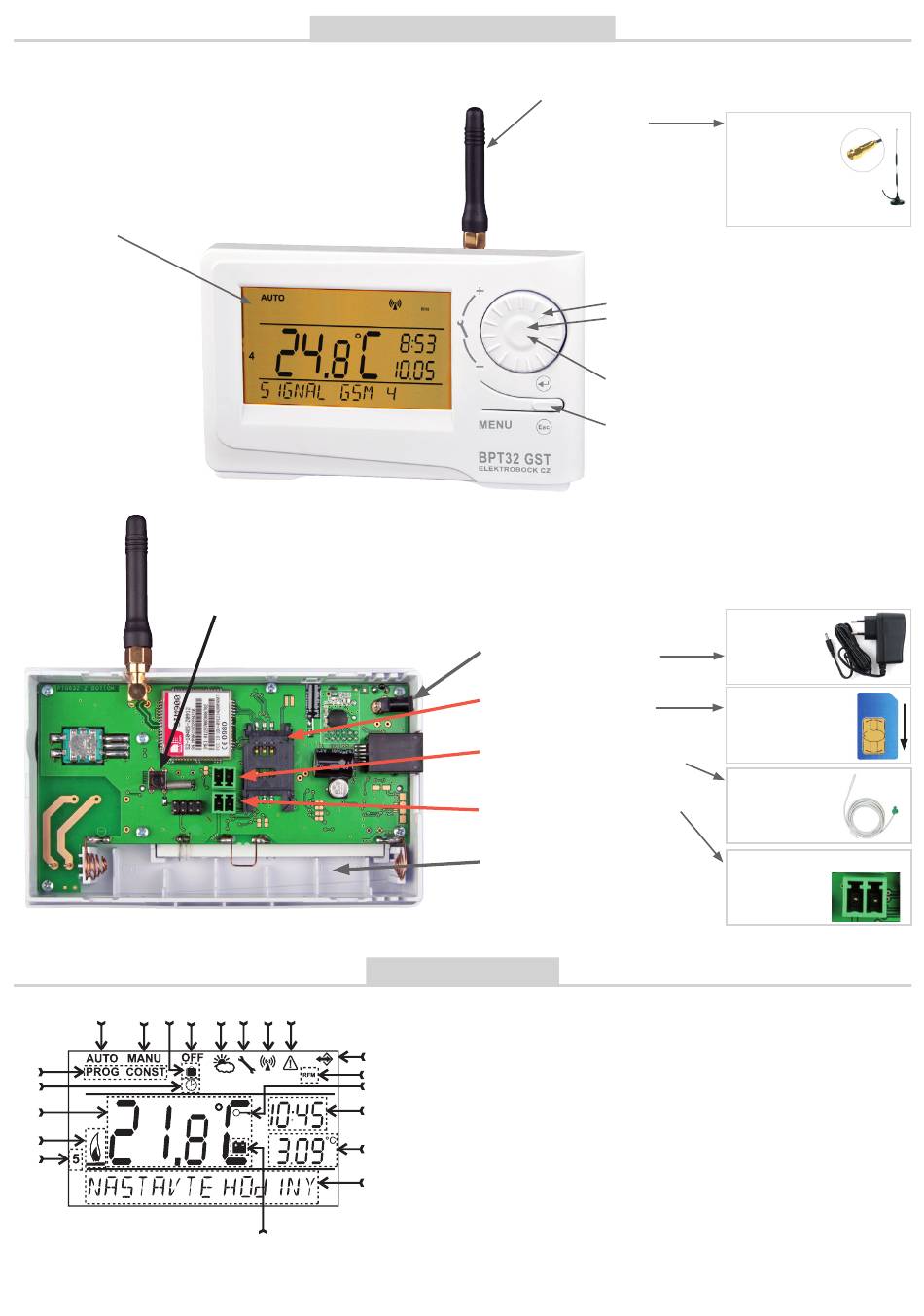

TRANSMITTER DESCRIPTION

RESET
press this button with MENU butto
for restoring to default settings
(see page 8)

LCD DESCRIPTION

10 11 12 13
14
15
16
17
18
19
20
The GSM aerial is included in the
packing (can be replaced by
an external one
with higher sensitivity).
turning
short press
long press
press
Connector for power supply No. 1
for the AD05-jack power supply
(included in the packing)
SIM card holder
space for inserting the SIM card
(the SIM card is not included in the
packing)
Connector for external sensor
can be used with sensors CT04-10k
(order No. 0012), CT01-10k (order No.
0015) or CT02-10k (order No. 0013)
Connector for power supply No. 2
for power source installed in a wiring
box (not included in the packing)
Backup batteries room
to backup the time running, always use
rechargeable batteries of the AA/R6
type (not included in the packing)
1, Current day (in the Prog mode,
selection of days to be programmed
2, Heating on indication
3, Current room temperature
4, Clock setting mode
5, Modes for setting programs (PROG)
and constants (CONST) (page 5)
6, Automatic mode (page 5)
7, Manual mode (page 5)
8, Holiday mode (page 5)
9, Permanent shut-off (page 5)
10, Summer mode (page 8)
11, Boiler inspection indication (page 10)
GST type – external
9 dBm, SMA connector
(not included in the
packing); can be
purchased separately,
order No. 1330,
on www.elbock.cz.
Controls
= change of temperature setting
= selection (entry) confi rmation
= quick change of required temperature or
program (see page 10);
viewing other information (see page 10)
= step back (only in the CONST mode,
see page 7)
= opening the main menu or returning
a step back
Type AD05-jack
5V/ DC, 2.5 A
Open the SIM card
holder and insert the
SIM card in the direction
indicated; then close the
holder again.
Type CT04-10k
silicone conductor, leng-
th 3 m for measurements
up to 99 °C, including
connector
+5 V
Use the type:
5V / DC, 2,5 A
(SELV)
MIND THE
POLARITY!!
12, Signal transmission indication
13, Signal transmission ERROR
14, External sensor connection indication
(see page 9)
15, Wireless mode indication
16, Key lock indication (page 10)
17, Current time
18, Current date/ required temperature
19, Status line, dynamically changing
according to the process running
20, Low battery indication
0 V
