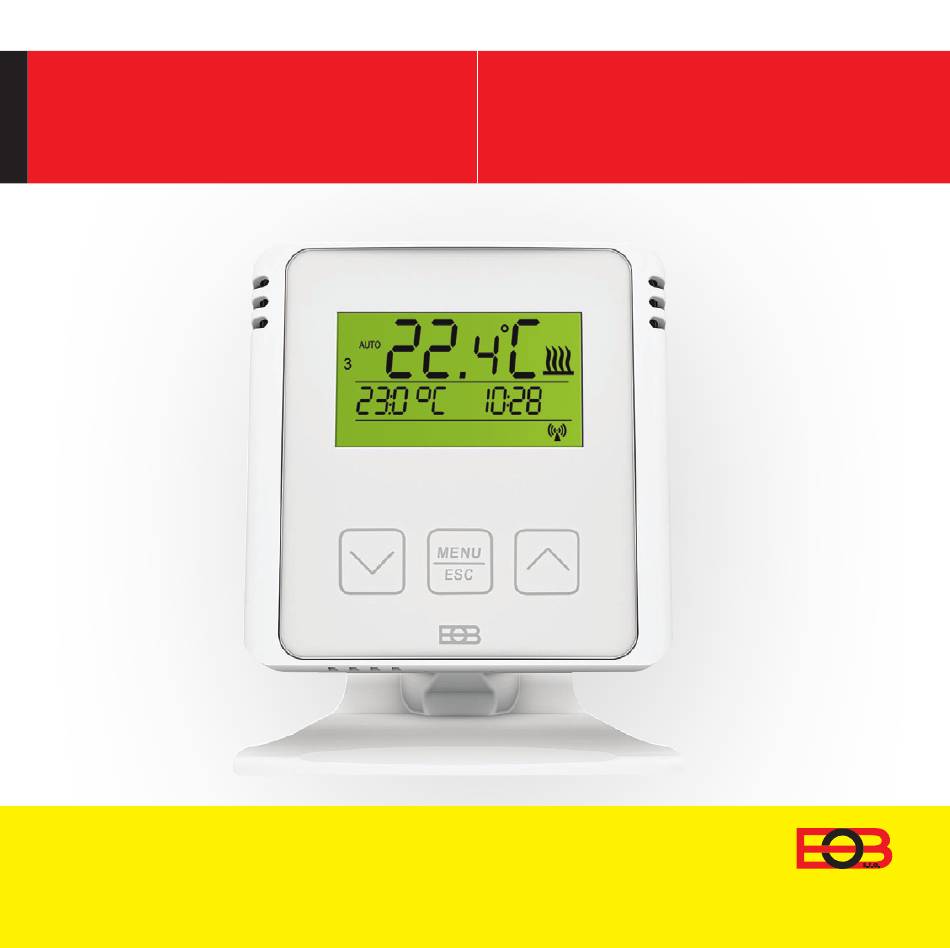

- Page 1 User manual BT730 Wireless thermostat with touch buttons www.elbock.cz ELEKTROBOCK MADE IN CZECH REPUBLIC...
-
Page 2: Table Of Contents
BT001, BT002, BT002A, BT003, BT005 or PH-BP1-P9, which switches the connected heating device. The BT730 is able to controll up to 9 switching elements (receivers). It switches the elements gradually and thus prevents current peaks in the network. Range in buildings is min. 35 m - depending on the receiver used. -
Page 3: Assembly
Assembly Open the front cover of the Insert 2 x 1.5 V AA alkaline Attach the back cover to transmitter. batteries. the wall. Free standing assembly: Clap the front cover onto the back. Slide the thermostat onto the stand and secure by turning. Avoid placing near Always use only 2 x 1.5 V Dispose of used batteries... -
Page 4: Control (Overview)
Control (overview) Operating modes: Current temperature OFF, Programming, Heating on indication Auto, Manu, Holiday Current day of the week Button lock indication Required Current time temperature Signal transmission Non-freezing Low battery temperature 3°C (indication of receiver version MENU 2 in CONST mode, see page 7) Functions of the control buttons... -
Page 5: Time Setting
Time setting AUTO or MANU will appear Basic display MENU MENU MENU Use the button Confirm with 1x ˄ MENU MENU to find „CLOC“. In the same way, set the minutes, seconds as well as the day, month and year. Confirm each setting with button. -
Page 6: Pairing With Receivers
Pairing with receivers AUTO or MANU Basic display will appear MENU MENU MENU MENU Use the button to Press 6x The display ˄ MENU MENU fi nd „COnSt“. shows tESt 1- On the receiver*, press briefl y for approx. 1s function button. NOTICE: To use all available BT002... - Page 7 Receiver LED1 LED2 Both LEDs on the receiver will light up several times MENU simultaneously and the output relay will turn on and off MENU several times. „Test On / Test Off“ appears alternately on the transmitter display. Press the button ˅...
-
Page 8: Deleting Receivers
Deleting receivers If you are using more receivers, all receivers can be deleted at once or individual receivers one after the other. AUTO or MANU Basic display will appear MENU MENU MENU Use the button to find ˄ Press 6x MENU MENU „COnSt“. -
Page 9: Program Settings
Program settings AUTO or MANU Basic display will appear PROG MENU MENU MENU MENU P1 flashes on the Use the button Press 1x ˄ MENU MENU display (= first week to find „PROG“. program*) 1= Monday Press 1x button. 1 (=Monday) flashes on MENU 2= Tuesday the right side. - Page 10 U2 (2nd temperature change) appears on the display. Required temperature MENU Time Set the time MENU for this temperature using the buttons. ˄ ˅ Set the temperature using the ˄ ˅ Confirm with the button. MENU buttons and confirm with the button.
-
Page 11: Operating Modes
Operating modes AUTO MANU MENU MENU MENU The thermostat is switched off In AUTO mode, the In MANU mode, the thermostat We recommend using the OFF thermostat works operates according to one set working mode for permanent according to the set temperature until it is manually shutdown. -
Page 12: Holiday Mode
Holiday mode The thermostat maintains the set temperature until the set time and date. AUTO or MANU Basic display will appear MENU MENU MENU MENU Use the ˄ ˅ Use the button Press 1x ˄ MENU MENU buttons to set the to find desired temperature for AUTO... -
Page 13: Setting Constants
Setting constants Graphical display of constants: Const MINIMUM MAXIMUM „OPEN CORRECTION OF HYSTERESIS REGULATED WINDOW“ REGULATED THE MEASURED SETTING TEMPERATURE TEMPERATURE FUNCTION TEMPERATURE FIRMWARE SUMMER/ TEMPERATURE VERSION / PAIRING WITH SUMMER WINTER TIME CHANGE RESTORE RECEIVERS MODE CHANGE DURING kEY FACTORY LOCk SETTINGS... - Page 14 požad. teplota 1. Minimum regulated temperature (5°C to 10°C, default setting 5°C) Setting the limitation of the minimum adjustable temperature. Topení Use the buttons to set the appropriate value MENU ˄ ˅ and confirm with the button. MENU 2.Maximum regulated temperature (15°C to 39°C, default setting 39°C) požad.
- Page 15 4. Correction of the measured temperature (-5°C to +5°C, default setting 0°C) This constant is used for manual comparison of deviations between the actual and measured temperature (this can be caused for MENU example by inappropriate positioning of the thermostat). Use the buttons to set the appropriate value ˄...
- Page 16 8. Changing the required temperature when the keys are locked (- - - - /0.5°C to +6°C) This constant makes it possible to enable or disable the change of the desired temperature within the allowed range even when the keys MENU are locked.
-
Page 17: Operating Hours
Changing the required temperature and ° program, operating hours When the AUTO mode is active Basic view MENU MENU MENU 2x button The required temperature will start Long press ˄ MENU flashing. The required temperature = confirmation and return 2x button can be changed with the ˅... - Page 18 With MANU mode active Basic display MENU MENU MENU Long press 2x button ˄ MENU = confirmation and return The required temperature will start 2x button ˅ flashing. The required temperature Short press MENU can be changed with the =display of operating hours ˄...
-
Page 19: Key Lock
Key lock Deactivation can be done Basic display Key lock display by long pressing the ˄ button for longer than 5s again while the LCD backlight is active. MENU MENU If you wish to change the desired temperature even when , this activates Long press the button... -
Page 20: Error Messages
Error messages = Connection error Ertr The number after Ertr indicates which of the receivers does not communicate with the thermostat (e.g. Ertr2 means that the second receiver does not communicate). Options to remove the error: A.If there was an error when activating the receiver with the transmitter, repeat the activation process one more time - see pages 6-7. -
Page 21: An Example Of Setting A Weekly Program
An example of setting a weekly program Sat-San Mo-Fri Temperature (°C) Temperature (°C) 24°C 24°C 23°C 23°C 22°C 18°C 18°C 18°C 18°C 18°C 7:00 8:30 16:00 18:00 21:00 Time 7:00 21:00 Time 18:00 U5-U6 U3-U6 Press 2x button and select the Use the ˄... - Page 22 ˄ Use the button to set 8:30. ˄ Press 1x button. 6.7 (Saturday to Sunday) is now Press 1x button. MENU flashing on the display. Note: In program 1, we will also U3 appears on the display and set Saturday and Sunday. So we MENU MENU 18°C flashes.
-
Page 23: Types Of Receivers
Types of receivers ATTENTION: To use all available functions, always use version 2 receivers (labeled v.2 on the front side). These receivers react to SUMMER MODE (p.16), in which the device is not switched on. BT001 wireless receiver - BT002 wireless receiver - under the switch wall mounted BT002-A wireless dual... -
Page 24: Technical Parameters
Operating temperature 0°C to +40°C EU CERTIFICATE OF CONFORMITY ELEKTROBOCK CZ s.r.o. hereby Dimensions: states that the BT730 WiFi radio device is in accordance with Regulation No. 2014/53/EU. The entire EU Certificate of Conformity can be found on the website www.elbock.cz...
