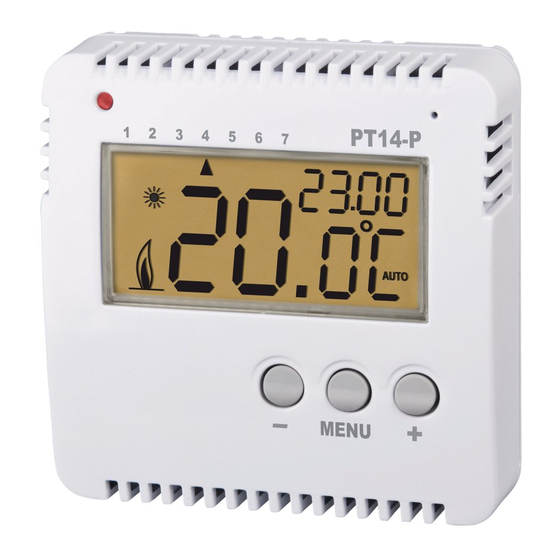

- Page 1 PT14-P PT14-P PROGRAMMABLE THERMOSTAT WITH SIMPLE CONTROL AND BACKLIT DISPLAY Intended for: •direct heaters • radiant panels • electric fl oor heating...
-
Page 2: Installation And Location
6) Switch on the main circuit breaker. If everything is OK, the LCD shows the current temperature. 7) Set the thermostat parameters and the required temperature program according to the instructions. PT14-P DESCRIPTION When heating is RESET button switched on,... - Page 3 Fig.1 Loosen the locking screw and remove Fig.2 Fix the back part of the thermostat the thermostat electronics. to the wall. holes for installation screws Fig.3 Connect the inlet wires according Fig.4 Put the electronics part onto the bottom to the diagram. part and ensure it with the locking screw.
-
Page 4: Lcd Description
LCD DESCRIPTION current day preset required required temperature temperature or current time or status information preset mode heating on indication current temperature FUNCTIONS AND SETTING Push any button to activate the display backlight. Then push the MENU button to enter the menu. - Page 5 CURRENT DAY AND TIME SETTING (CLo) Push twice the MENU button; choose the CLo function with the button; confi rm with the MENU button. The hour indication is fl ashing on the display, set the current hour with the button and confi rm with the MENU button. Similarly, proceed with the minutes, day and year, confi...
- Page 6 hysteresis (0.5 °C by default) - The display shows P4 - Set the required hysteresis with the button (see the graph) within the range of 0.1 to 6 °C (selection by 0.1 °C) and confi rm it with the MENU button. minimum switch-on time (1 minute by default) - The display shows P5 - With the...
- Page 7 current temperature correction (0 °C by default) - The display shows P6 - With button, set the correction within the range of -5 °C to +5 °C and confi rm it with the MENU button. It is used to correct the temperature measured by the thermostat. The setting must be done only after 12-hour operation, when the internal sensor temperature has stabilized.
- Page 8 TEMPERATURE PROGRAM SETTING (PROG) Push twice the MENU button; select the PROG function with the button and confi rm it with the MENU button. CHOOSE A DAY OR BLOCK OF DAYS: - With the button, choose a day or block of days which you want to program: 1= Monday 5= Friday...
- Page 9 PRESET TEMPERATURE PROGRAM = 17°C = 23°C = 25°C program for Mon-Fri program for Sat-Sun SHORT TERM TEMPERATURE CHANGE In the AUTO mode, push any button, and then the button to make a short-term change of the temperature. The thermostat will keep this temperature until the next temperature change given by the program.
-
Page 10: Off Function
OFF FUNCTION permanent switch-off Push twice the MENU button; select the OFF function with the button and confi rm it with the MENU button. The thermostat will switch off. The OFF message appears on the display. To cancel this function, push twice the MENU button and choose another mode (AUTO or MANU) with the button. - Page 11 OVERVIEW OF TYPES MANUFACTURED PT14 PT14 Thermostat with a backlit display, suitable for direct heaters, fl oor heating and electric heating panels. Advantages: • quick selection of economical and comfortable temperature • simple operation • output relay max. 16 A •...
-
Page 12: Programmable Thermostat
No.: post-guarantee service, send the product to the distributor’s or stamp of shop: manufacturer’s address examined by: ELEKTROBOCK CZ s.r.o. Blanenská 1763 Kuřim 664 34 Tel.: +420 541 230 216 MADE IN CZECH REPUBLIC www.elbock.cz LEAD FREE...
