WIRELESS ROOM THERMOSTAT
A sophisticated wireless thermostat which can be remotely controlled by means of SMS messages from your mobile phone. Wireless version
enables easy and quick installation. It is not necessary to install labour-consuming lines between the thermostat and boiler that must come
through fl oors. The transmitter includes two devices, temperature controller and GSM module, which cooperate, thus increasing the comfort
of the heating system control. Simple control elements are used for setting; intuitive navigation in the selected language (CZ/PL/EN/DE/
RU/SVK). Remote control is executed by means of brief SMSs which enable you, for example, to change the required temperature or turn
off the system. The receiver is equipped with a code self-learning system and the E-EPROM memory which saves the code stored even in
the event of voltage failure. BPT322 GST works with two-way communication at the frequency of 433.92 MHz. The assembly may reach
the range of up to 35 m (in built-up area). This unique wireless thermostat with a big backlit display and intelligent PID-control offers a wide
variety of usage in residential houses, offices as well as recreation areas.

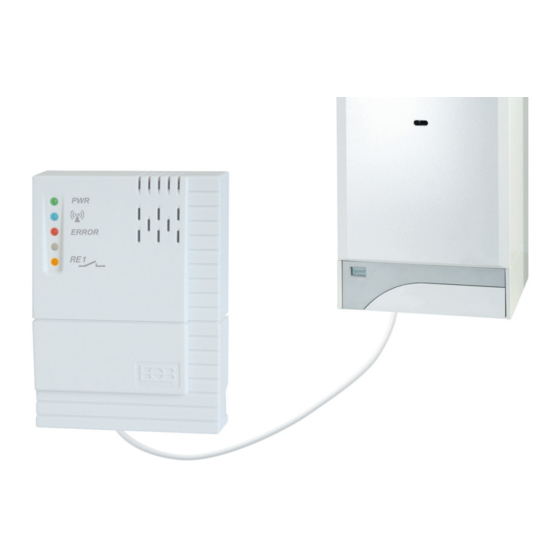

receiver - wall mounted
• Receiver mains supply of 230 V/ 50 Hz
• Receiver with the CODE SELF-LEARNING system and
E-EPROM memory (saving the code even at voltage
failure)
• Two-wire connection to the boiler (potential-free
contact
• Indicator LED signalling the states
- mains supply indication
- transmission/ reception of signals
- failure state
- relay switched
- GSM module integrated
- modern design
- stand for stable setting at the optimum
location
MADE IN CZECH REPUBLIC
BPT322 GST BPT322 GST
WITH GSM MODULE
TWO-WAY COMMUNICATION
- guarantees reliability of signal transmission and enables
acquiring of return information
transmitter
• Enable to change the required temperature or change the mode by
means from mobile phone
• Big, well-arranged and backlit display
• Intuitive navigation in the selected language (CZ/PL/EN/DE/RU/
SVK)
• 9 weekly programs
• 6 temperature changes per every day
• Programming by 10 minutes and 0.5 °C
• Programming by days or Mon-Fri, Sat-Sun and Mon-Sun
• Possibility of setting HYSTERESIS, PI regulation or PID regulation
• Possibility of connectin an external temp. sensor
• Preliminary heating start function
• Possibility of short-term temperature change
• Even-odd week selection
• Current temperature correction
• Key lock
• Boiler operating hours total
• Manual mode (MANU)
• Permanent shutdown (OFF)
• Holiday mode
• Summer mode
• Anti-freeze temperature (3°C)
• TEST function
• Automatic SUMMER/WINTER time change
• Clock backup in case of power failure, approx. 7 days if
rechargeable batteries are used (not included in the packing)
