ELEKTROBOCK BPT102 Manual

The great advantage is the possibility of changing the reference room by simply relocating the transmitter
part, in which way an optimum temperature comfort can be achieved in the room heated. The coverage
of the set can reach up to 35 m. The receiver is equipped with a code self-learning system and the
E-EPROM memory, which can keep the code saved even at power failure. The possibility of setting up
to 4 time periods and temperatures for every day provides for optimum distribution of electric energy
for all week. An ideally selected program will help you to reduce heating costs by up to 30 %.
receiver – wall-mounted
• Receiver power supply 230 V/ 50 Hz.
• Receiver with the CODE SELF-LEARNING
system and the E-EPROM memory (saving
the code even at power failure).
• Two-wire connection to the boiler.
• Indication LED for signalization of the
states
- power supply indication
- signal transmission / reception
- failure state
- relay closed.
- freely portable
- small dimensions
- simple operation
- possibility of using
the stand (included
in the delivery)
MADE IN CZECH REPUBLIC

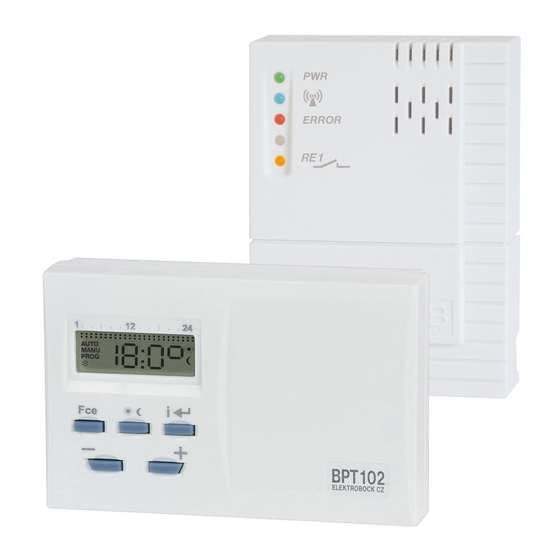

BPT102 BPT102
WIRELESS ROOM THERMOSTAT
with two-way communication
TWO-WAY COMMUNICATION
- providing for reliable signal transmission and
enabling return information acquisition.
transmitter
• Weekly program
• 4 temperature changes per every day
• Programming by 30 minutes and 0.5 °C
• Programming by day or Mon-Fri, Sat-Sun
or Mon-Sun
• Hysteresis 0.5 °C
• Possibility of short-term temperature
change
• Key lock
• Sum of boiler operating hours
• Manual mode (MANU)
• Permanent switch-off (OFF)
• Anti-freeze mode (3 °C)
• TEST function
• Supplied by alkaline batteries
2 × 1.5 V/AA
