ELEKTROBOCK BPT010 Manual

IMPORTANT INFORMATIONS
IF
Necessity of battery exchange.
On the transmitter flashes the LED
Remowe the batteries for new ones.
3 x in 8 s
Transmission error signal betwen transmitter and receiver
On the transmitter flashes the LED Check if the receiver is right connected to power supply. On receiver
2 x in 8 s press for about 3s the button for testing the connection - the relays
must several times switch on and off.
TECHNICAL PARAMETERS
Power supply
Communication type two-way
Frequency
Vf-Sensitivity
Hysteresis
Temp. range
Protection
Working temp.
Accuracy
DECLARATION OF CONFORMITY
We, ELEKTROBOCK CZ s.r.o., herewith declare that our product BPT010 is in conformity with
the basic requirements and other respective provisions of the directive 1999/5/ES. Issued:
1.04.2012
Send the product for guarantee and after guarantee service to manufacturer's address.
CERTIFICATE OF GUARANTEE
(guarantee period for the product amounts to 2 years)
product No.: date of sale::
stamp of shop:
examined by::
CAUSE and SOLUTION
2x1,5 V alkal. batteries
433,92 MHz
<10mW
0,4 °C
11 °C to 29 °C (frost protection 3°C)
IP20
0 to 40°C
± 1°C
ELEKTROBOCK CZ s.r.o.
Blanenská 1763
Kuřim 664 34
Tel.: +420 541 230 216
www.elbock.cz
MADE IN CZECH REPUBLIC
Pb
LEAD FREE
Im Einklang mit RoHS
BPT010

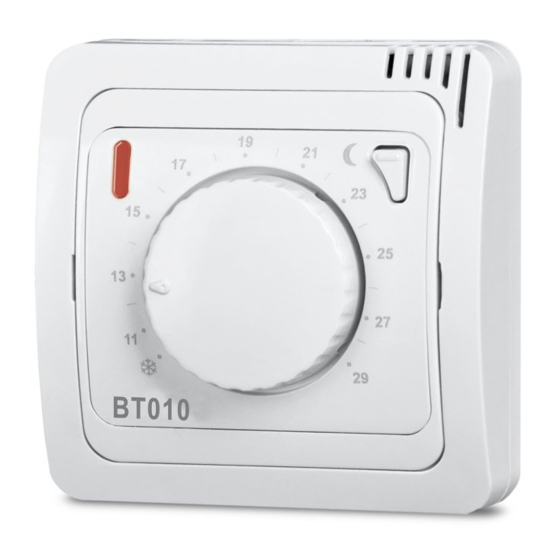

WIRELESS ROOM THERMOSTATFOR CONTROL
OF HEATING DEVICES
The biggest advantage of BPT010 is the two way communication with the receiver and very simple
control of desired temprature by turn of roller on the transmittor. Installation without cutting the wall
and pulling wires are other advantages that convince you to modernize the regulation of your heating
system.Receiver is equipped with the autodidactic system and the E-EPROM memory that will keep
the stored code even during voltage failure.
The BPT010 can control only one receiver.
