ELEKTROBOCK PT32 GST Manual

ROOM THERMOSTAT
WITH GSM MODULE

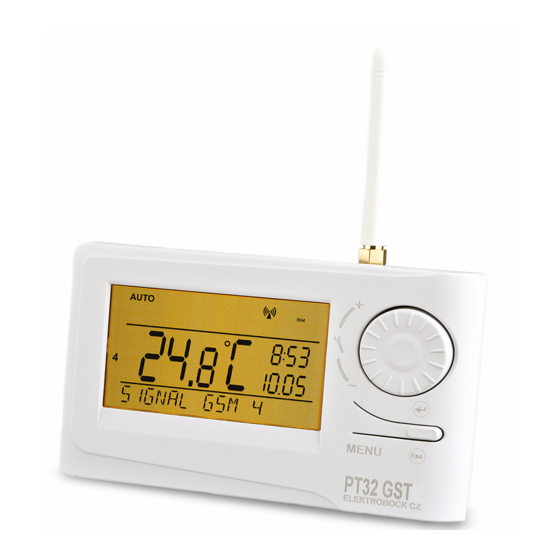

A sophisticated thermostat which can be remotely controlled by means of SMS messages from your mobile phone.
The thermostat includes two devices, temperature controller and GSM module, which co-operate, thus increasing the comfort
of the heating system control. Simple control elements are used for setting; intuitive navigation in the selected language
(CZ/PL/EN/DE/RU/SVK). Remote control is executed by means of brief SMSs which enable you, for example, to change the
required temperature or turn off the system. This unique thermostat with a big backlit display and intelligent PID-control offers
a wide variety of usage in residential houses, offi ces as well as recreation areas.
Backlit display
After you press any button,
the display is backlit automatically
for at least 5 s.
9
6 7 8 10
5
4
3
2
1
RESET
press this button with MENU butto
for restoring to default settings
(see page 8)

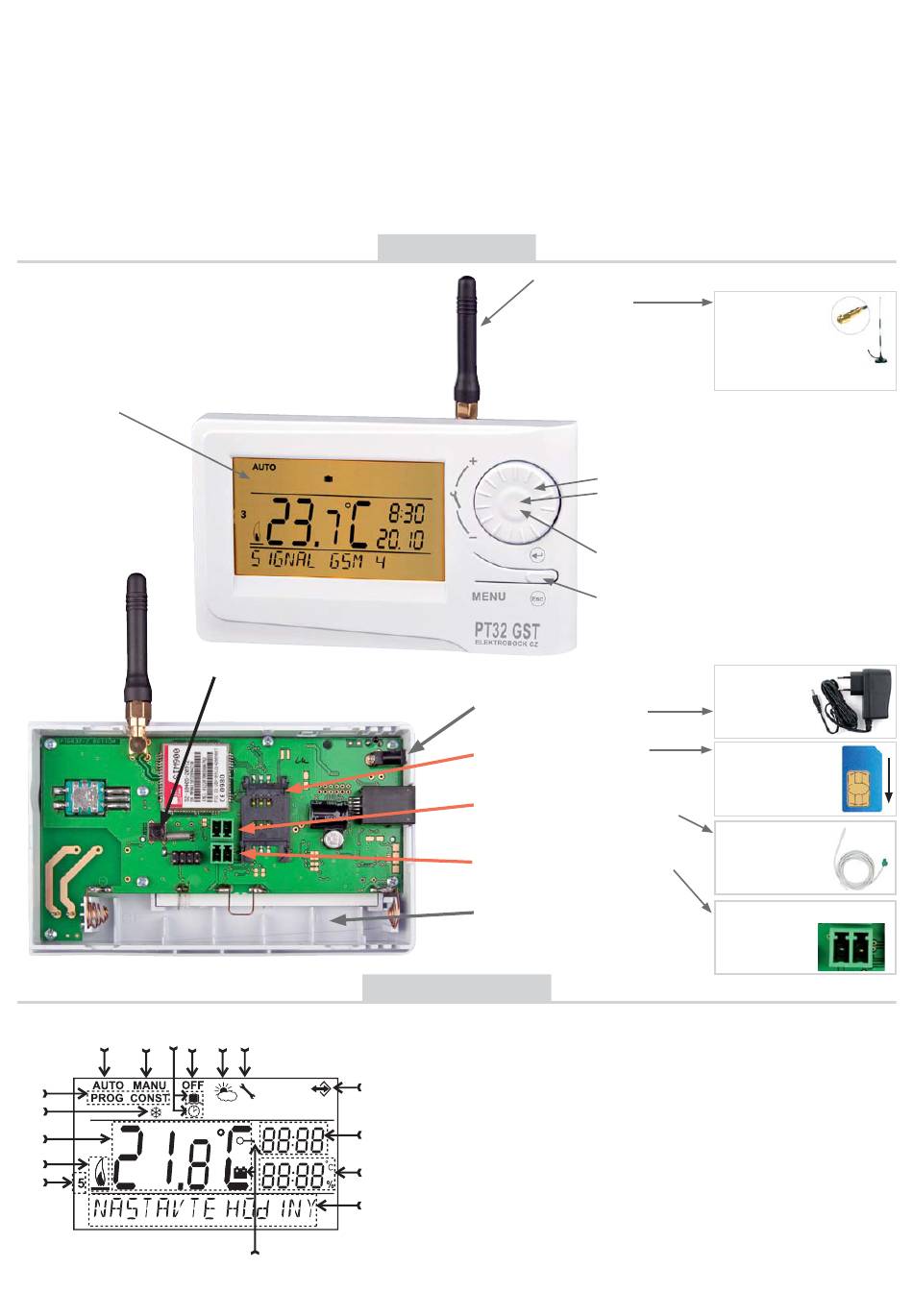

LCD DESCRIPTION

11 12
13
14
15
16
17
18
PT32 GST PT32 GST

DESCRIPTION

The GSM aerial is included in the
packing (can be replaced by
an external one
with higher sensitivity).
Connector for power supply No. 1
for the AD05-jack power supply
(included in the packing)
SIM card holder
space for inserting the SIM card
(the SIM card is not included in the
packing)
Connector for external sensor
can be used with sensors CT04-10k
(order No. 0012), CT01-10k (order No.
0015) or CT02-10k (order No. 0013)
Connector for power supply No. 2
for power source installed in a wiring
box (not included in the packing)
Backup batteries room
to backup the time running, always use
rechargeable batteries of the AA/R6
type (not included in the packing)
1. Current day (in the Prog mode,
selection of days to be
Programmed)
2. Heating on indication
3. Current room temperature
4. Anti-freeze temperature
5. Modes for setting programs
(PROG) and constants (CONST)
(page 4 and 5)
6. Automatic mode (page 3)
7. Manual mode (page 3)
8. Clock setting mode (page 3)
9. Holiday mode (page 3)
10. Permanent shut-off (page 3)
GST type – external
9 dBm, SMA connector
(not included in the
packing); can be
purchased separately,
order No. 1330,
on www.elbock.cz.

Controls

turning
= change of temperature setting
short press
= selection (entry) confi rmation
= rquick change of required
temperature or program (see page 8);
viewing other information (see page 8)
long press
= step back (only in the CONST mode,
see page 5)
press
= opening the main menu or returning
a step back
Type AD05-jack
5V/ DC, 2.5 A
Open the SIM card
holder and insert the
SIM card in the direction
indicated; then close the
holder again.
Type CT04-10k
silicone conductor, length
3 m for measurements
up to 99 °C, including
connector
Use the type:
5V / DC, 2,5 A
(SELV)
MIND THE
POLARITY!!
11. Summer mode (page 6)
12. Boiler inspection indication
(page 8)
13. External sensor connection
indication (see page 7)
14. Current time
15. Current date (various parameters
in the CONST mode; for details,
see page 5)
16. Status line, dynamically changing
according to the process running
17. Key lock indication (page 8)
18. Low battery indication
+5 V 0 V
1
