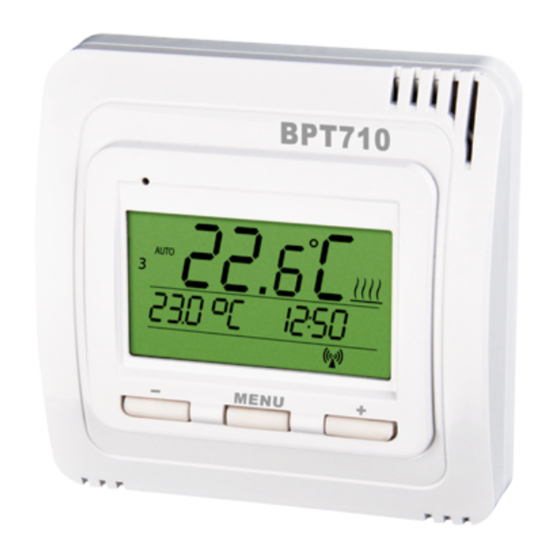

- Page 1 BPT710 BPT710 WIRELESS ROOM THERMOSTAT FOR CONTROL OF HEATING DEVICES Comfortable control of: • direct heaters • fl oor heating • radiant panels, infra-panels • gas and electric boilers (only with the BPT002 receiver)
-
Page 2: Function Description
FUNCTION DESCRIPTION BPT710 is a wireless thermostat (transmitter) which according to the required room tempe- rature controls the receiver unit, BPT001, BPT002 or BPT003, which switches the heating device connected. DESCRIPTION AND CHARACTERISTICS OF ELEMENTS PHOTO BPT710 wireless thermostat (transmitter) •... - Page 3 ” LCD symbol. Always use the 2 x 1.5 V alkaline batteries, type AAA! (Do not use rechargeable batteries.) For correct function of BPT710, activate the receivers according to the instructions on page 7! Note: Dispose of old batteries according to regulations for hazardous waste...
-
Page 4: Display Description
DISPLAY DESCRIPTION 1, Current day (in the Prog mode, selection of the number of days to be programmed) 2, Operating mode OFF/PROG/AUTO/MANU/ =HOLIDAY 3, Current room temperature 4, Heating on indication 5, Key lock indication 6, CLOC mode indication (current day and time setting) 7, Wireless signal transmission indication 8, Low battery indication... -
Page 5: Operating Modes
OPERATING MODES By pressing any button fi rst, you activate the display backlight. By another short press of MENU button, you open the main menu in which you can choose operating modes. AUTO The thermostat works according to the weekly program settings. MENU Press the button and choose the mode AUTO with the... - Page 6 CLOC Setting the correct day and time. MENU Press the button and choose the mode CLOC with the MENU button; press the button to confi rm. The current hour value is fl ashing on the LCD; set the current hour with the MENU button and confi...
-
Page 7: "Open Window" Function
“OPEN WINDOW” FUNCTION If the room temperature drops suddenly (by 1-2 °C in 2 minutes), BPT710 sends out a signal to switch off the heaters to save energy in this way. To enable this function, set the „ A“ option with the... -
Page 8: Other Functions
PTo return to the basic mode, simultaneously press the buttons. Communication error between the receiver and transmitter is indicated by the ErPr1 message on BPT710, where the last number is a sequence num- ber of the receiver activated incorrectly. FIRMWARE VERSION / FACTORY SETTING RESTORATION Information on the fi... -
Page 9: Operating Hours
As soon as the temperature rises, the thermostat resumes the preset mode and controls according to the required temperature. EXAMPLE OF CONNECTION wall concealed installation installation BPT002 BPT001 (receiver) (receiver) wall installation BPT710 (transmitter) socket installation BPT003 (receiver) -
Page 10: Wireless Room Thermostat
Working temperature 0°C to +40°C DECLARATION OF CONFORMITY We, ELEKTROBOCK CZ s.r.o., herewith declare that the product BPT710 conforms to the basic require- ments and other corresponding provisions of the Directive 1999/5/EC. Issued: 01.04.2012 on www.elbock.cz ELEKTROBOCK CZ s.r.o.
