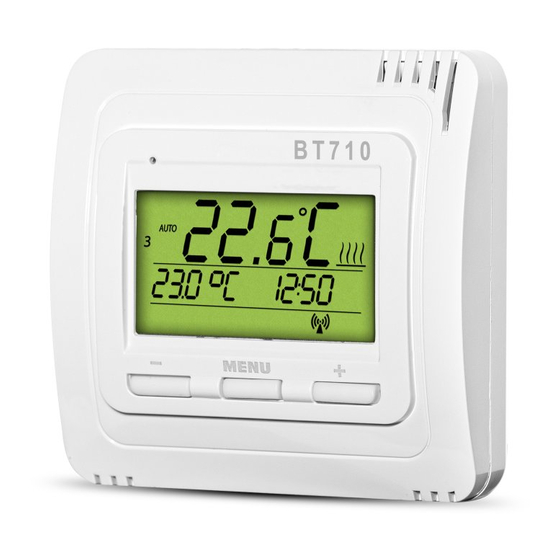

Wireless thermostat
www.elbock.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ELEKTROBOCK BT710

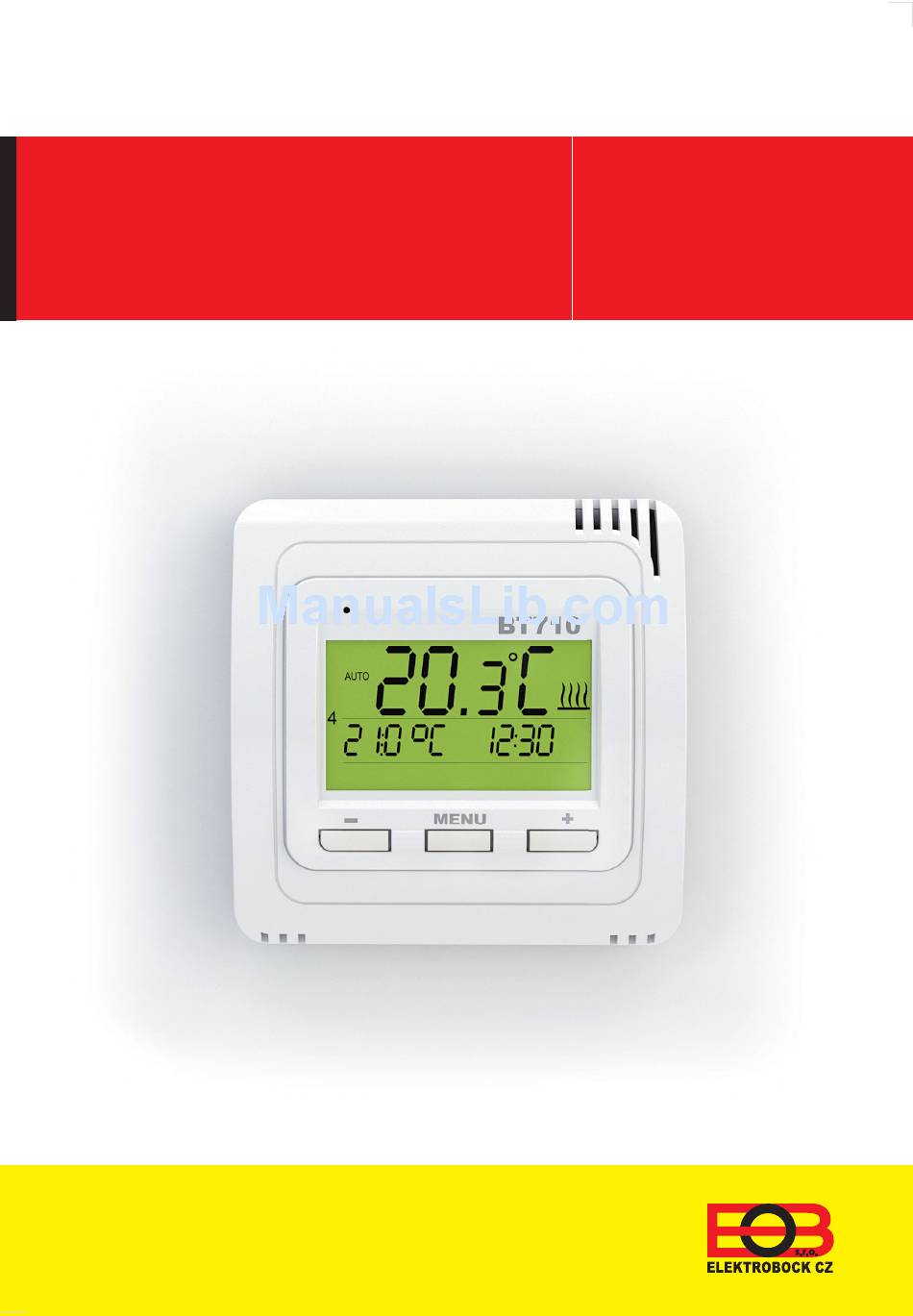

  • Page 1 BT710 User manual Wireless thermostat www.elbock.cz...
  • Page 3: Table Of Contents

    Contents Installation ..........4 Controls (overview) .........5 Setting Time ..........6 Pairing with Receivers ......7 Deleting a Receiver ........9 Setting a Programme ......10 Operating Modes ......... 12 Holiday Mode ........13 Setting Constants ........ 14 Changing the desired temperature and programme, operating clock .... 16 Changing Batteries .......
  • Page 4: Installation

    Installation Remove the transmitter’s front cover. Insert 2 x 1,5 V AAA alkaline batteries. Mount the back cover on the wall. Fasten the front cover on the back cover. Free-standing Mount: Avoid places like: windowsills, televisions, PCs or devices with heat or cold emission. Always use only 2 x 1,5 V AAA batteries! (Do not use rechargeable batteries).
  • Page 5: Controls (Overview)

    Controls (overview) Operating modes: Current temperature Turned-on heating indication OFF, Programming, Auto, Holiday Current day of the week Buttons lock indication Desired temperature Time Non-freezing Signal transmission temperature 3 °C Low battery MENU Functions of the Controls 1. push MENU The fi...
  • Page 6: Setting Time

    Setting Time AUTO or MANU Basic view appears MENU MENU MENU button, Using the Confi rm by 1x MENU MENU fi nd „CLOC“. Set minutes, seconds, day, month and year in the same way. Confi rm every setting with the button.
  • Page 7: Pairing With Receivers

    Pairing with Receivers AUTO or MANU Basic view appears MENU MENU MENU Using the button, MENU Push MENU fi nd „COnSt“. MENU tESt 1- appears on the display. Shortly, for about 1 s, push the function button on the RECEIVER. BT001 receiver BT002 receiver BT003 receiver...
  • Page 8 Receiver LED1 LED2 MENU MENU Both LEDs turn on simultaneously several times and the output relay turns on and off multiple times. “rest On / test Off” appears alternately on the display of Send a signal to the thermostat. receiver by pushing the button.
  • Page 9: Deleting A Receiver

    Deleting a Receiver While using multiple receivers, individual receivers cannot be deleted. Only all the receivers can be erased all at once. AUTO or MANU Basic view appears MENU MENU MENU Using the button, MENU Push MENU fi nd „COnSt“. tESt dEL appears tESt 1A appears tESt 1- appears...
  • Page 10: Setting A Programme

    Setting a Programme AUTO or MANU Basic view appears MENU MENU MENU Using the button, Push MENU MENU fi nd “PROG”. 1 = Monday 2 = Tuesday 6 = Saturday 7 = Sunday 12345 = Mo-Fr MENU MENU 67 = Sa-Su 1234567 = whole week P1 fl...
  • Page 11 U2 (2nd temperature change) Set the time for this temperature using the appears on the display. buttons. Desired temperature Time MENU MENU Set a temperature with the Confi rm it with the button. MENU buttons and confi rm it with the button.
  • Page 12: Operating Modes

    Operating Modes AUTO MANU MENU MENU MENU In the AUTO mode, the The thermostat is turned In the MANU mode, the thermostat works according thermostat maintains one off. to the set one-week set temperature, until it is It is recommended to use the programme.
  • Page 13: Holiday Mode

    Holiday Mode The thermostat maintains a set temperature until a specifi ed time and date. AUTO or MANU Basic view appears MENU MENU MENU Using the button, fi nd Push MENU MENU AUTO or MANU Then set the minute, day, month and year of the end of a holiday and confi...
  • Page 14: Setting Constants

    Setting Constants Graphical depiction of constants: Const MEASURED “OPEN FIRMWARE PAIRING WITH TEMPERATURE WINDOW” VERSION/ RECEIVERS CORRECTION FUNCTION RESET TO FACTORY DEFAULTS AUTO or MANU Basic view appears MENU MENU MENU MENU Using the button, Push MENU MENU fi nd „COnSt“. 1.
  • Page 15 2. “OPEN WINDOW” Function If the temperature in the room drops sud- denly by 1-2 °C in 2 minutes, the thermos- tat sends out a signal to turn off the heating appliances in order to save energy. MENU The thermostat returns to a normal mode as soon as the temperature rises again.
  • Page 16: Changing The Desired Temperature And Programme, Operating Clock

    Changing the desired temperature ° and programme, operating clock When the AUTO mode is activ Basic view MENU MENU MENU MENU 2x the button The desired temperature A long push of MENU fi gure will start fl ashing. The = confi rmation and return 2x the button temperature can be changed...
  • Page 17 When the MANU mode is activ Basic view MENU MENU MENU The desired temperature A long push of 2x the button MENU fi gure will start fl ashing. The = confi rmation and return temperature can be changed back. 2x the button with the buttons.
  • Page 18: Changing Batteries

    Changing Batteries MENU Low batteries are indicated Remove the transmitter’s front cover. by the symbol. Fasten the front cover on the back cover. Insert 2 x new 1.5 V AAA microbatteries. Always use 2 x 1.5 V AAA alkaline batteries! (Do not use rechargeable batteries) Dispose of old batteries according to regulations for hazardous waste...
  • Page 19: Error Messages

    Error Messages Ertr = Connection error. The number after the Ertr message states which one of the receivers is not communicating with the thermostat (e.g. Ertr2 means that the second receiver is not communicating). MENU Possible solutions: A. If the error occurred while pairing the receiver with the transmitter, repeat the pairing process – see p.
  • Page 20: An Example Of The Setting Of A One-Week Programme

    An Example of the Setting of a One-week Programme Mo-Fr Temp. (°C) 23°C 22°C 18°C 18°C 18°C 7:00 8:30 16:00 21:00 Hours U4-U6 Sa-Su Temp. (°C) 23°C 18°C 18°C 7:00 21:00 Hours U2-U6 Set 22 °C using the Push the button 2x MENU and select the PROG mode...
  • Page 21 Set 8:30 using the Push the MENU button 1x. button. U1 (1st temperature change) appears on the Push the button 1x. MENU display and 19 °C is fl ashing. U3 appears on the display Set 23 °C using the and 18 °C is fl ashing. MENU button.
  • Page 24 0°C to +40°C EU DECLARATION OF CONFORMITY Hereby, ELEKTROBOCK CZ s.r.o. declares that the radio equipment type BT710 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address www.elbock.cz.
