Fig.4

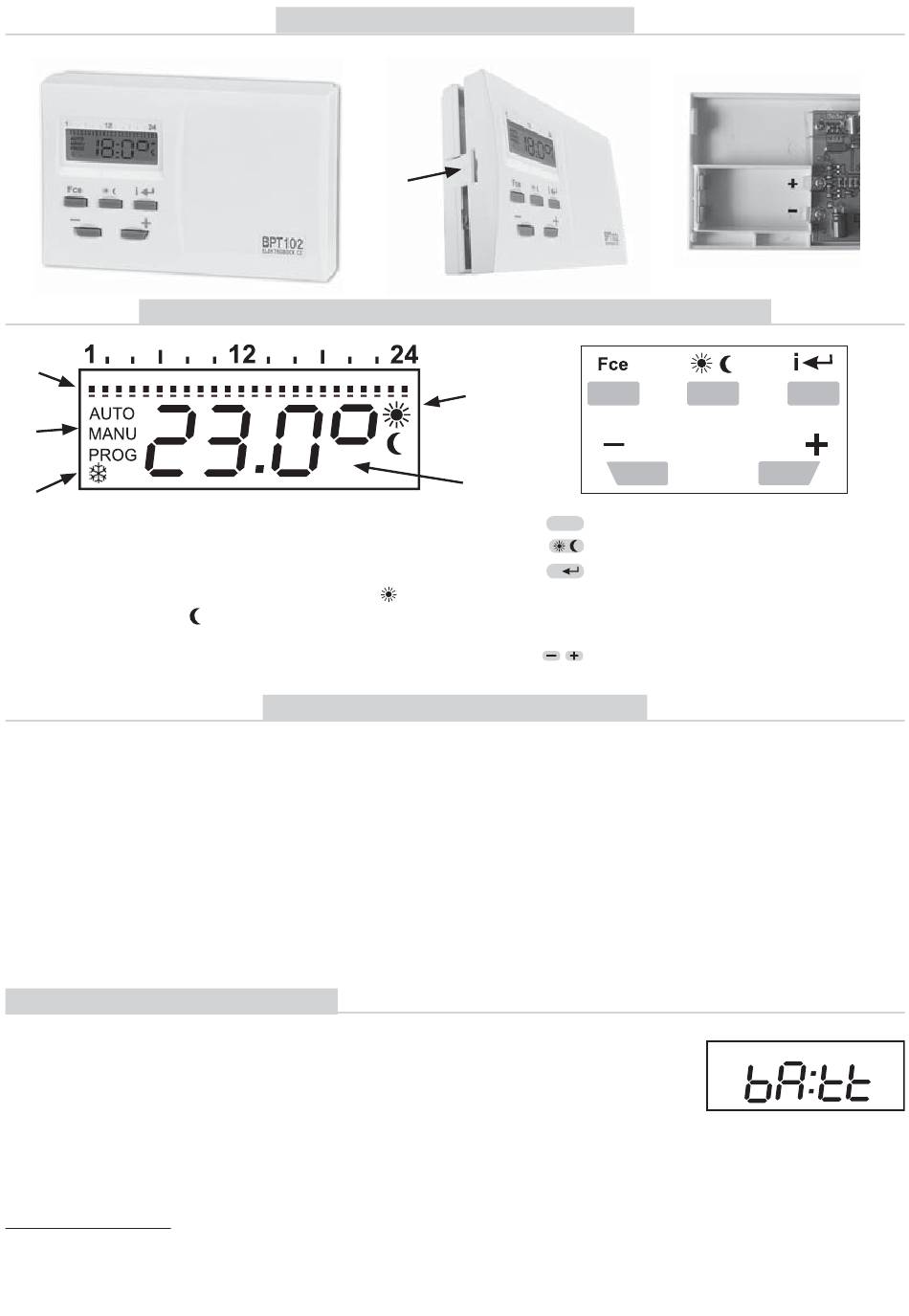

DISPLAY AND CONTROL ELEMENTS DECRIPTION
1
2
3
1) Preset temperature program indication
2) Selected function – AUTO, MANU, PROG, etc.
3) Anti-freeze temperature (3 °C)
4) Temperature indication – comfortable
economical
5) Required temperature display
The transmitter must be located as far as possible from interference sources (TV, PC, etc.) and
must not be placed on a metal base. When locating it, pay attention to the thermal properties of the
given place.
- Lift off the back cover of the transmitter acc. to Fig. 5.
- Insert batteries (alkaline 2×1.5 V, type AA); the transmitter will be fully functional (batteries are not
included in the delivery).
- Snap on the back cover again.
- The transmitter is freely portable and can be located, for example, on the table. We recommend using
of the stand included in the delivery.
- If the thermostat is mounted on the wall, pay attention that no heavy-current power lines are led in its
vicinity!

BATTERY REPLACEMENT

The necessity to replace the batteries is indicated by the " bA:tt "
symbol fl ashing on the display.
1) Remove the control part from the lower cover of the device (Fig. 5).
2) Replace the batteries. Heed the correct polarity indicated in the
battery compartment (Fig. 6). When the batteries have been
removed, the thermostat preserves all settings in the memory.
Always use alkaline batteries 2 x1,5 V type AA!
After replacement of the batteries, perform the TEST (see page 6)!
Recommendation: check the batteries before every heating season!
Dispose of old batteries in conformity with regulations on hazardous waste handling!
TRANSMITTER DECRIPTION
.

TRANSMITTER INSTALLATION

Fig.5
4
5
Fce
i
,
/
Fig.6
: used for function selection
: selection of required temp. (in MANU)
: confi rmation button (ENTER)
information on current temperature
(tE:A), time (CL:O), sum of operating
hours (SU:MA) and day (dE:n)
: for movement in the menu and
temperature setting
3
