- Page 1 PT22 PT22 ROOM THERMOSTAT WITH BACKLIT DISPLAY • for all types boilers • weekly program (preset) • 6 temp. changes per every day • anti-freeze mode • easy installation • modern design • BIG WELL-ARRANGED DISPLAY with navigation in selected language...
-
Page 2: Display Description

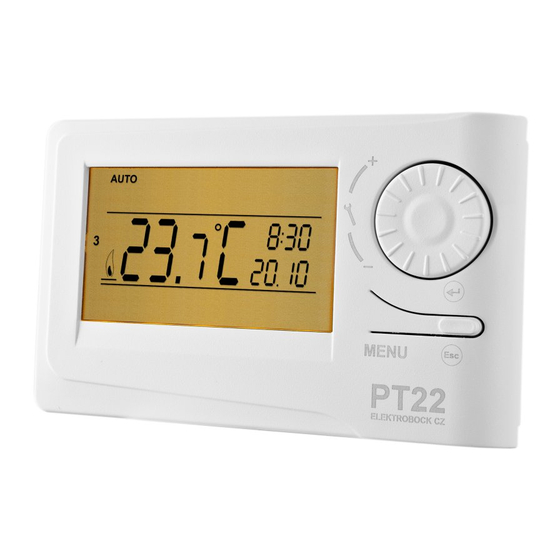

DESCRIPTION PT22 is digital room thermostat with backlit display for automatic regulation of heating. Its advantages involve a quick change in the desired temperature by simply turning the wheel, and possibility of setting up to weekly program with 6 temperature changes per day. -
Page 3: Installation And Location
9) Upon fi rst start (or reset), the thermostat displays “SET CLOCK”, set the current time and date according to page 5. Wiring diagram: The thermostat terminals are marked differently with PT22 BOILER every type of boiler. Therefore, follow the wiring prescribed... -
Page 4: Battery Replacement
Fig.1 Fig.2 Fig.3 MENU alkal.battery alkal.battery 1.5V/AA 1.5V/AA HINTS FOR THE USER QUICK CHANGE OF THE DESIRED TEMPERATURE Press the “ “ button twice, the desired temperature starts blin- . Change the temperature by turning the king on the display button, and press the “... -
Page 5: Operational Modes
OPERATIONAL MODES The fi rst push of any button activates the display backlight. Pushing the“ MENU “ button shortly again, you open the main menu where you can choose the operational mode. ( weekly program is factory-set, see page 6) AUTO The thermostat works according to the weekly program preset (this program can be changed;... - Page 6 PROG (PROGRAMMING) Setting the weekly program with up to 6 changes per day. Press twice the “ MENU “ button, choose the PROG mode by turning the “ “ button, and press the“ “ button to confi rm. The number of days to be programmed is blinking on the display;...
- Page 7 TEST We recommend you to use the test when you fi rst use the thermostat! After you turn the “ “ button, the test starts and the output relay is switched on/off several times (the display shows the ON/OFF 4 RELAY TEST message).
-
Page 8: Room Thermostat
(CZ / PL / EN / DE/RU/SK). The backlit display enables thermostat control even at night. With preset program can PT22, after installation, and set the current time, immediately used without further adjustment.
