Temperature regulation
of connected appliance
build-in temperature
sensor
Fce
/ +
MADE IN CZECH REPUBLIC
DESCRIPTION OF
CONTROLS
= selection of functions
= selection of temperatures
= confirmation (ENTER),
information present
temperatur (tE:A), present
time (CL:O), sum of
operating hours (SU:MA),
and day (dE:n)
= setting of
temperature,time,
functions

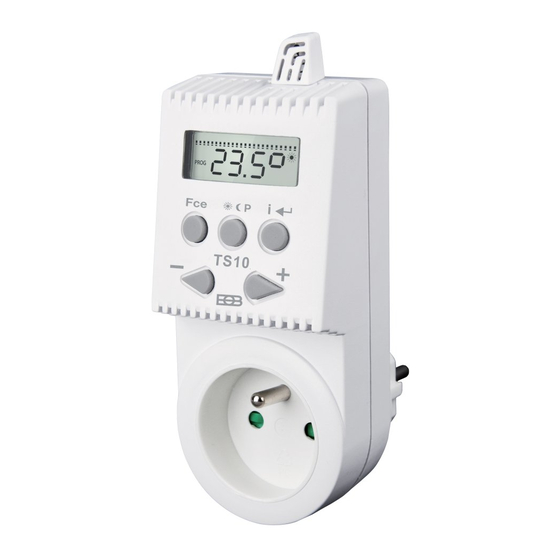

TS10
THERMO-
SWITCH
SOCKET
electric
heating
plates
direct
heating
bodies
electric
tubular
radiators
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELEKTROBOCK TS10
Summary of Contents for ELEKTROBOCK TS10
- Page 1 TS10 Temperature regulation of connected appliance THERMO- SWITCH DESCRIPTION OF CONTROLS SOCKET build-in temperature sensor electric heating plates direct heating = selection of functions bodies = selection of temperatures = confirmation (ENTER), information present temperatur (tE:A), present time (CL:O), sum of...
-
Page 2: Operating Instructions
: programming mode. : in this mode is TS10 permanently switched-off . 6. OFF Note: If you do not push any button in 2 minutes, TS10 returns into set mode. Longer pushing of buttons speeds up their functions. 2. Proceed during programming Before the programming itself, it is necessary to set present day, time and parameters (constants), namely in following way. - Page 3 Setting of parameters (constants) - “ PAr “ function Parameters serve for setting of temperatures and another functions. - Press the button, by pressing select Par (Parameters) and confirm by - PA:r2 shows on the display, PA:r2 economic temperature (the 17°C temperature is factory - set) - PA:r2 shows on the display - confirm by and with using of...
- Page 4 In this way, TS10 ispermanently switched off. In this mode, symbol OF:F and antifreeze temperature 3°C are showed alternatively on the display. To cancel this function, press button and select different mode with using of...
-
Page 5: Child Lock
(the buttons are again functioning from now). Installation: 1. Connect TS10 in 230V/50 Hz socket. 2. Program it according to instructions (register respective data in the table). 3. Connect the heating body you want to regulate. Error messages: If following error message is shown on the display, contact immediately the manufacturer (it is dealing with a failure of temperature sensor). - Page 6 TS10 THERMO-SWITCH SOCKET TS10 is a digitally switched socket for automatic regulation of electrical heating sys- tems (direct heating bodies, towel driers, fires) in family houses, flats,offices. Up to four time intervals with two temperature levels can be set for each day.
