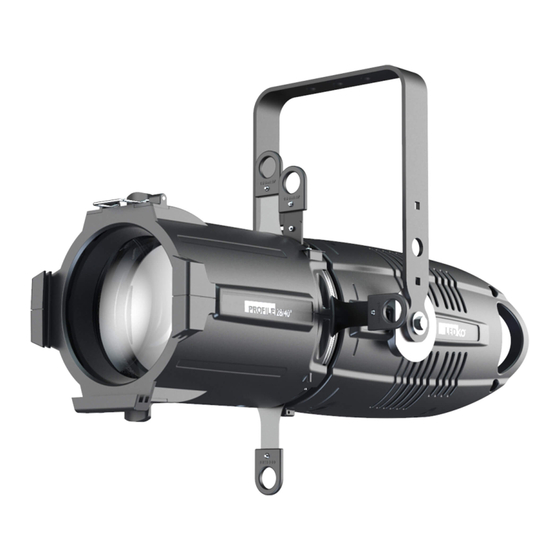

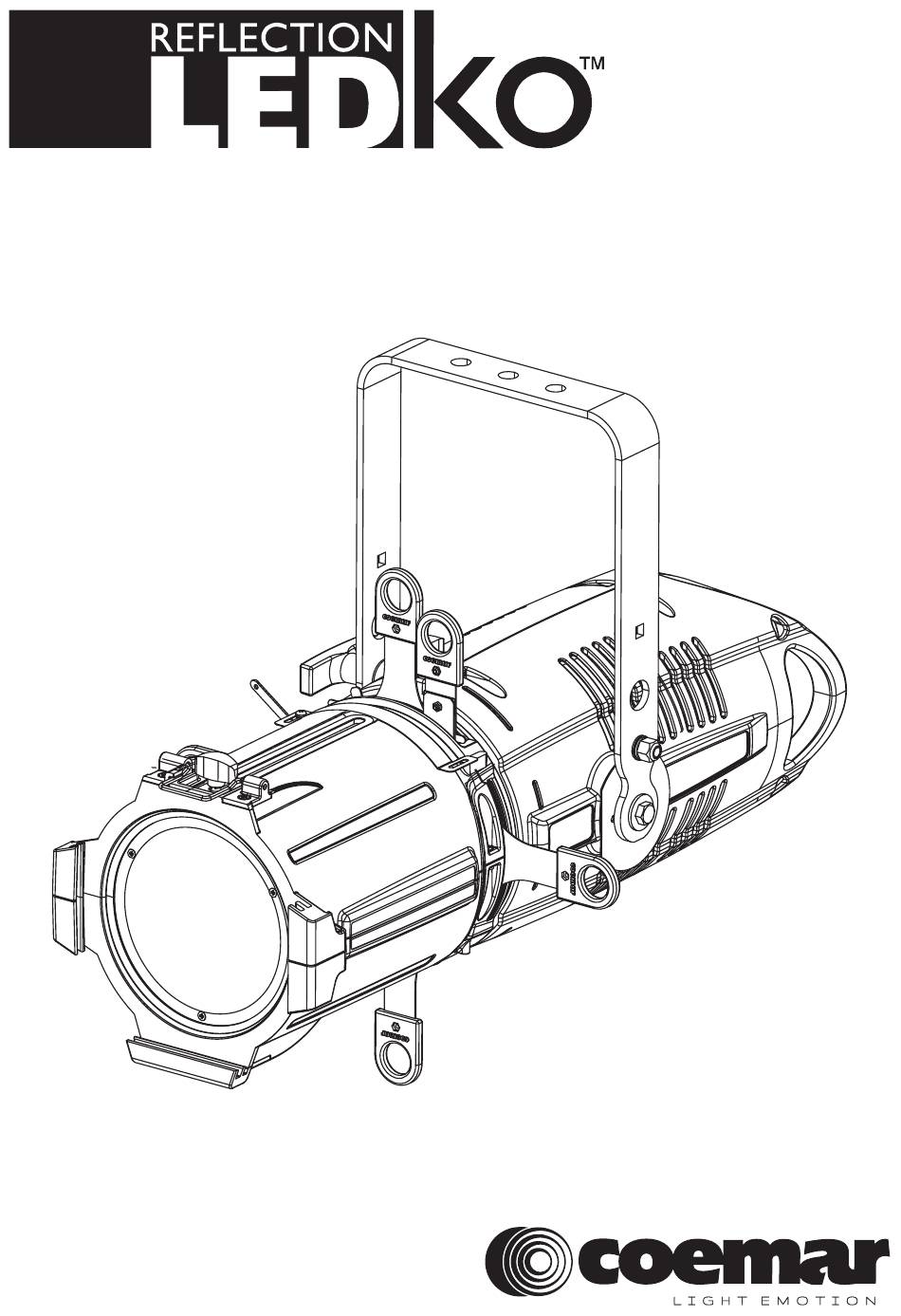

- Page 1 FullSpectrum 6 HD Instruction manual Version 1.0...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko FullSpectrum 6 HD: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation......................Pag. 5 1.1. Packaging............................Pag. 5 1.2. Transportation...........................Pag. 5 2. General information..........................Pag. 5 2.1 Safety informations...........................Pag. 5 2.2 Warranty conditions.........................Pag. 6 2.3 EC Norms ............................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics.........................Pag. 7 3.2 Dimensions............................Pag. 7 3.3 Unit’s main components.........................Pag. - Page 4 11. Maintenance............................Pag. 32 11.1 Firmware update........................... Pag. 32 11.2 Periodic cleaning.......................... Pag. 32 11.3 Periodic controls........................... Pag. 32 11.4 Fuses............................... Pag. 32 12. F.A.Q. and answers.......................... Pag. 33...
-
Page 5: Packaging And Transportation
1 Reflection LEDko FullSpectrum 6 HD 1 Instruction manual 1 Main power plugs Transportation The LEDko FullSpectrum 6 HD should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: Never locate the fixture on any flammable surface. -
Page 6: Warranty Conditions
3. The level of technology of LEDko FullSpectrum 6 HD requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Product specifications Technical characteristics Power supply 90-230Vac, 50-60Hz Maximum current 1.06 A at 230 V, 2.71 A at 90 V Power factor Cosϕ = 0.9 Power consumption 220 watt RGBWLA, with pure color mixing throughout the field Color temperature and all whites from 2700 to 6500 K Weight (without optic) 6kg - 13.2lbs Maximum ambient temperature... -
Page 8: Unit's Main Components
3.3. Unit’s main components Components description A Adjustable yoke Iris (optional) Gobo holder (optional) Lens adjusting handles Yoke locking handle Gel frame locking spring Profile blade H Interchangeable optic... -
Page 9: Back Panel Description
Back panel description Display Plus button Menu button / Enter button Minus button Color preset Back button button Exit button DMX In PowerCon Out DMX Out PowerCon In... -
Page 10: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 11: Mechanical Installation
Mechanical installation LEDko FullSpectrum 6 HD may be hung from an appropriate structure in any position or on tripode. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. -
Page 12: Powering Up
The unit may operates at voltages ranges from 90 to 250VaC at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: LEDko FullSpectrum 6 HD will automatically adjust its operation to suit any frequency or voltage within this range. -
Page 13: Control Signal Connections
• The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. • LEDko FullSpectrum 6 HD should not be powered through a dimmer as this may damage the internal switching power supply. • Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of LEDko FullSpectrum 6 HD. -
Page 14: Turning On The Projector
. Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, sud- denly it will show the current DMX addressing. -
Page 15: Dmx Chart
. DMX chart DMX Chart 16, 7, 1 channels type of channel function effect decimal percentage control master adjust luminous output proportional - 255 - 100% dimmer intensity from 0 to 100% proportional control of the color proportional - 255 - 100% percentage from 0 to 100% proportional control of the color... - Page 16 no effect - 84 - 33% fan at low-noise speed 85 - 96 33% - 38% step fan at auto-speed 97 - 108 38% - 42% fan at studio speed 109 - 121 43% - 47% special 10 - fan speed control from minimum to functions proportional 122 - 134...
- Page 17 no effect step 2700 K 10 - 30 - 12% proportional proportional value from 2700 K to 3200 K 31 - 52 12% - 20% step 3200 K 53 - 74 21% - 29% proportional proportional value from 3200 k to 4000 K 75 - 96 29% - 38% step...
-
Page 18: Dmx Chart Studio Mode
DMX Chart Studio mode type of channel function effect decimal percentage control master adjust luminous output proportional 0 - 255 0% - 100% dimmer intensity from 0 to 100% 3200 K 0 - 10 0% - 2700 K 11 - 16 4% - 2800 K 17 - 22... - Page 19 step no effect 0% - exalts the green color in the mixing and proportional 10 - 123 4% - 48% diminishes the presence of magenta green step no effect 124 - 132 49% - 52% saturation diminishes the presence of green in the proportional 133 - 246 52% - 96%...
-
Page 20: Dmx Chart Rgb Mode
DMX Chart RGB mode type of channel function effect decimal percentage control master adjust luminous output proportional 0 - 255 0% - 100% dimmer intensity from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% proportional control of the color proportional... -
Page 21: Display Panel Functions
ENTER button to access to any other function. By suitably using all the functions of LEDko FullSpectrum 6 HD, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. -
Page 22: Main Functions Menu
Main functions menu By pressing the Enter key “ ” you can enter the LEDko FullSpectrum 6 HD’s main menu. dimming curve Dimming curve: It allows the selection of different dimmer curves: exponential (default), linear, logarith- linear mic and halo. - Page 23 automatic fan mode Fan with automatic operating speed to guaran- Fan mode: tee maximum light output in all conditions of use, ideal for live events, exhibitions and archi- Manually sets the fan mode. tectural installations. studio Fan at automatic operation speed with limit- ed speed to guarantee silent operation of the product (moderately limited light output, will decrease in case of overheat) ideal for broad-...
-
Page 24: Measure
Measures BOARD temperature NOW: -°C -°C Temperature: MIN: -°C -°C Shows the current temperature values of the MAX: -°C -°C fixture. history MIN: -°C -°C MAX: -°C -°C LED: shows the LED module temperature. Board: shows the electronic board tempera- ture. - Page 25 protection: led status red: green: LED status: blue: white: Shows the percentage value of the LED sta- lime: amber: tus. Note: under the heading protection will always be displayed the value 100% unless the head- light is overheated and then goes to the point of protection.
-
Page 26: Color Presets
Color presets By pressing the color preset button “ ”, on the rear panel, it will be possible to enter the menu dedicated to the gels preset in the projector. intensity Intensity: Allows to adjust the luminous output intensity. 2700 K white tone gels White tone gels: 3000 K... - Page 27 R24 - scarlet red color gels R02 - bastard amber Factory gels: This channel offers a preset library of various color gels. R313 - light relief yellow r18 - flame r331 - shell pink r25 - orange red r46 - magenta r08 - pale gold r27 - medium red r318 - mayan sun...
- Page 28 r2008 - Storaro indigo e5058 - french lilac r369 - tahitian blue r347 - belladonna rose r381 - baldassari blue r57 - lavander r55 - lilac r4790 - calcolor 90 magenta r92 - turquise r370 - italin blue create new gel green Add new gel: It allows you to create customized color gels.
-
Page 29: Special Functions Of The Fixture
Error messages If a malfunction occurs, LEDko FullSpectrum 6 HD has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 30: Accessories And Spare Parts
. Accessories and spare parts is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube BC10011A023... - Page 31 BC10011A044 max. load 20 Kg. All the components of LEDko FullSpectrum 6 HD are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
-
Page 32: Maintenance
Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses LEDko FullSpectrum 6 HD has an automatic fuse that in most cases does not need to be replaced. -
Page 33: F.a.q. And Answers
. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •... - Page 34 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 35 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 36 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
