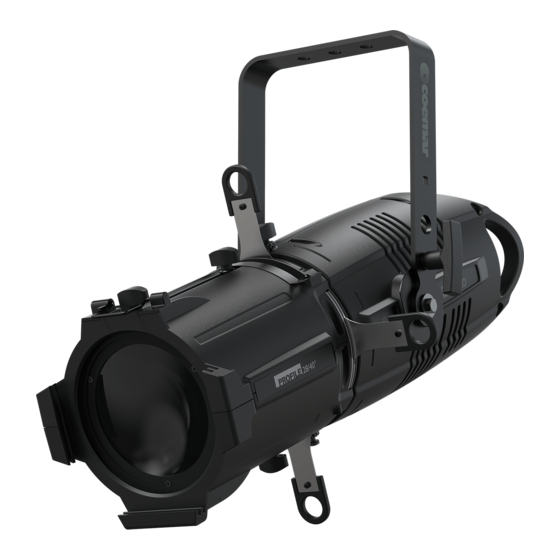

- Page 1 USER MANUAL vrs. 1.1 - 19.04.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation......................Pag. 5 1.1. Packaging............................Pag. 5 1.2. Transportation...........................Pag. 5 2. General information.........................Pag. 5 2.1 Safety informations........................Pag. 5 2.2 Warranty conditions........................Pag. 6 2.3 EC Norms ...........................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics......................Pag. 7 3.2 Dimensions..........................Pag. 7 3.3 Weights and dimensions of the projector with various optics..........Pag. - Page 4 10. Display panel functions ......................Pag. 20 10.1 Quick guide to menu ......................Pag. 20 10.2 Rapid count ........................... Pag. 20 10.3 Potentiometer Knob ......................Pag. 20 10.4 Main functions menu......................Pag. 21 10.5 Settings ..........................Pag. 22 10.6 Display ........................... Pag. 24 10.7 Measures ..........................
-
Page 5: Packaging And Transportation
Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, instal- lation). -
Page 6: Warranty Conditions
3. The level of technology of LEDko + requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projec- tor. -
Page 7: Product Specifications
Castiglione delle Stiviere (MN) - Italy - Via Carpenedolo, 90 Date: 15.11.2019 Tel. 0376/1514412 - Fax. 0376/1514380 - www.coemar.com This drawing cannot be copied, reproduced, shown to third parties without our permission Questo disegno non può essere copiato, riprodotto, mostrato a terzi senza nostra autorizzazione... -
Page 8: Weights And Dimensions Of The Projector With Various Optics
Weights and dimensions of the projector with various optics Optics Length Weight Lens Tube Profile 10° 900 mm (35.4 in) 9 Kg (19.8 lbs) Optics Length Weight Lens Tube Profile 14° 750 mm (35.4 in) 9 Kg (19.8 lbs) Lens Tube Profile 70° 750 mm (35.4 in) 8.68 Kg (19.14 lbs) Optics... -
Page 9: Unit's Main Components
Unit’s main components Components description A Adjustable yoke Iris (optional) Gobo holder (included) Lens adjusting handles Yoke locking handle Gel frame locking spring G Profile blade H Interchangeable optic... -
Page 10: Back Panel Description
Back panel description Intensity / Display Selector Knob Menu button Plus button Minus button Enter button PowerCon DMX Out TRUE1 Top In PowerCon DMX In TRUE1 Top Out... -
Page 11: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 12: Mechanical Installation
Mechanical installation LEDko + may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. Warning!! Always ensure that your support structure and fixing (bolts, clamps, etc…) are rated... -
Page 13: Powering Up
Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko + is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures. -
Page 14: Control Signal Connections
. Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko + labelled DMX512 IN e OUT. -
Page 15: Turning The Projector On
. Turning the projector on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, sud- denly it will show the current DMX addressing. -
Page 16: Dmx Chart
DMX chart 8.1 DMX modes channels channels channels ↓ Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function... -
Page 17: 8.2 Dmx Chart 5 And 1 Channels
8.2 DMX Chart 5 and 1 channels type of channel function effect decimal percentage control master adjust luminous output proportional 0 - 255 0% - 100% dimmer intensity from 0 to 100% - spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100%... -
Page 18: Setup Via Rdm
Setup via RDM Quick guide to menu The LEDko + required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. RDM lets you set the DMX addresses of all the fixtures on the link, carry out fixture configuration and retrieve fixture data including details of any error that has been logged. -
Page 19: Rdm Error Chart
RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected... -
Page 20: Display Panel Functions
Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection. -
Page 21: Main Functions Menu
10.4 Main functions menu By pressing the “MENU” button you can enter the LEDko +’s main menu. N.B. Instead of use the “+”, “-” or “ENTER” buttons it is possible to use the INTENSITY / SELECTOR knob by rotating it. Rotate the INTENSITY / SELECTOR knob in clockwise sense to replicate the “+”... -
Page 22: Settings
10.5 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth fast Allows to change the speed of every dimming fast curve between FAST slow (standard), SLOW, VERY SLOW. - Page 23 FREQUENCY: frequency 600 Hz Shows the operating frequency of the LED 600 Hz (600 Hz as default). 1500 hz 2000 hz 5000 hz 20000 hz PERSONALITIES: PERSONALITIES 5 CH It is possible to choose between 5, or 1 5 CH modalities, in which the 1 CH projector will operate.
-
Page 24: Display
10.6 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock. - Page 25 AUTO POWER OFF: AUTO POWER OFF OFF: Auto Power OFF in ON: Causes the projector display to turn off after 30 seconds of inactivity. DMX: Causes the projector display to turn off after 30 seconds of inactivity, but the display will turn automatically ON in case of signal loss BRIGHTNESS DISPLAY:...
-
Page 26: Measures
10.7 Measures TEMPERATURES: TEMPERATURES Shows the current temperature values of the ° F MIN NOW MAX fixture. LED: shows the LED LED: -°C -°C -°C module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES HISTORIES: TEMP histories Shows the history °... - Page 27 LED STATUS: led status Shows the percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage. LIFETIME: lifetime Shows the hour counter of the fixture.
-
Page 28: Wi-Fi Menu (Optional)
. Wi-Fi Menu (OPTIONAL) 11.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi-Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the transmitter. -
Page 29: Special Function And Error Messages
If a malfunction occurs, LEDko + has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code... -
Page 30: Accessories And Spare Parts
. Accessories and spare parts LEDko + is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube BC10011A023... - Page 31 BC10011A044 max. load 20 Kg. All the components of LEDko + are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
-
Page 32: Maintenance
. Maintenance 14.1 Firmware update The firmware of LEDko + can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater (AC10011A000). 14.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. -
Page 33: And Answers
• Check DMX address of the unit. Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com... - Page 34 User notes ...................................................................................................................................................................................................................................................................................................................................................................................
- Page 35 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 36 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
