Coemar LEDko EXT FullSpectrum RGBLA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EXT
FullSpectrum RGBLA

Advertisement

Table of Contents
loading

Related Manuals for Coemar LEDko EXT FullSpectrum RGBLA

Summary of Contents for Coemar LEDko EXT FullSpectrum RGBLA

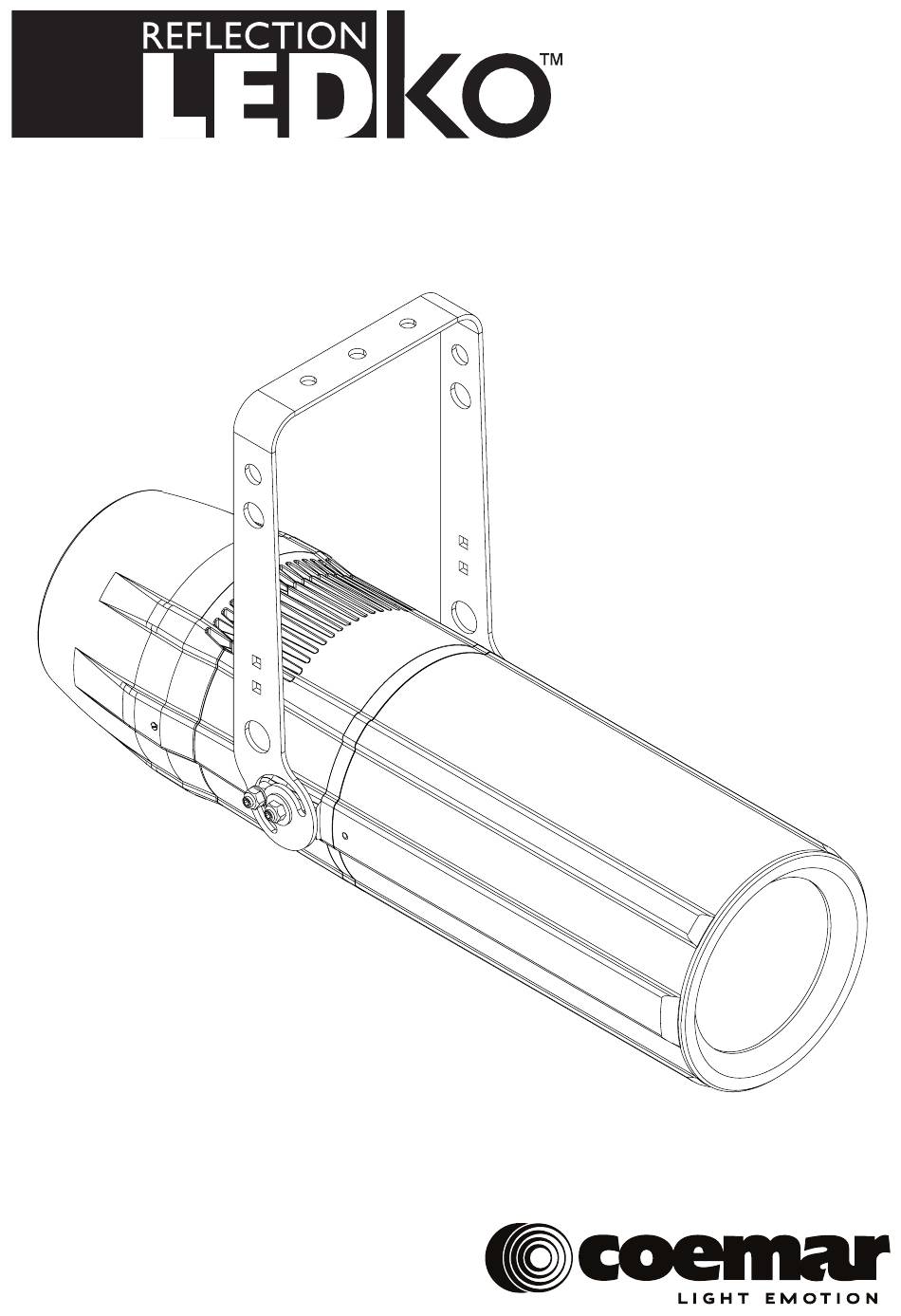

  • Page 1 FullSpectrum RGBLA...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko EXT FullSpectrum RGBLA: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ..........................Pag. 5 1.1 Packaging ................................Pag. 5 1.2 Transportation ..............................Pag. 5 2. General information .............................. Pag. 5 2.1 Safety informations ............................Pag. 5 2.2 Warranty conditions ............................Pag. 6 2.3 EC norms ................................. Pag. 6 3. Product specifications .............................Pag. 7 3.1 Technical characteristics ...........................Pag.
  • Page 4 11. Maintenance ............................... Pag. 29 11.1 Firmware update ............................Pag. 29 11.2 Periodic cleaning ............................Pag. 29 11.3 Periodic controls ............................Pag. 29 11.4 Fuses ................................Pag. 29 12. F.A.Q. and answers ............................. Pag. 30...

  • Page 5: Packaging And Transportation

    Packing list Ensure the packaging contains: 1 LEDko EXT FullSpectrum RGBLA 1 Instruction manual Transportation The LEDko EXT FullSpectrum RGBLA should be transported in either its original packaging or in an appropri- ate flight case. . General information Transportation Fire prevention: 1.

  • Page 6: Warranty Conditions

    3. The level of technology of LEDko EXT FullSpectrum RGBLA requires the use of spe- cialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

  • Page 7: Product Specifications

    Product specifications Technical characteristics Power supply 80-264 V, auto-sensing, 50/60 Hz Maximum current 1.16 A at 230 V, 2.34 A at 115 V Power factor Cosφ = 0.93 Max power consumption 250 W Color temperature RGBLA color mixing and all whites from 2.700 to 6.500 K Weight 14.0 Kg (30.8 lbs) Storage temperature...

  • Page 8: Unit's Main Components

    Unit’s main components Components description Yoke with mounting holes Cooling unit Optical holder tube D Locking screw for yoke...

  • Page 9: Back Panel Description

    Back panel description Display Plus button Menu button Minus button Enter button DMX Out DMX In Power In...

  • Page 10: Installation

    Safety chain When hanging LEDko EXT FullSpectrum RGBLA it is recommended to use a safety chain, as required by cur- rent legislation. The safety chain must pass through the handles of the unit and then attached to the structure.

  • Page 11: Adjusting Unit's Tilt

    Adjusting unit’s tilt 1. In order to adjust the tilt of the unit simply loose the side screw “B” on the yoke, adjust the tilt and lock the yoke by tightening the screw again. 4.4 Optical group and framing system Follow these steps in order to configure the optical group properly: 1.
  • Page 12 4. It is possible to regulate the blades “D” to achieve the desired shape, use the four thumbscrews “E” that you can see behind the blades to free or block them; 5. It is possible to use the gobos, to do so open the gobo holder, insert a normal gobo or a glass gobo and close the gobo holder;...

  • Page 13: Powering Up

    The unit may operates at voltages ranges from 80 to 264 V at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: LEDko EXT FullSpectrum RGBLA will automatically adjust its operation to suit any frequency or voltage within this range.

  • Page 14: Control Signal Connections

    DMX 512 data. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko EXT FullSpectrum RGBLA labelled DMX512 IN e OUT (see diagram). Connectors equipped on LEDko EXT FullSpectrum RGBLA are IP rated, which ensures protection against water and dust.

  • Page 15: Turning The Projector On

    512 controller. A second unit must be addressed as A017, a third one as A033 and so on. The operation must be carried out on every LEDko EXT FullSpectrum RGBLA which has an address different from A001. Altering the DMX address: 1.

  • Page 16: Dmx Chart

    . DMX chart DMX Chart 16, 7, 1 channels channel function type of control effect decimal percentage 16 7 master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 - 100% proportional control of the color percentage proportional 0 - 255 - 100%...
  • Page 17 no effect 0 - 9 R4460 - Calcolor 60 green 10 - 34 - 13% R2004 - Storaro green 35 - 59 14% - 23% E730 - Liberty green 60 - 84 24% - 33% E088 - Lime green 85 - 109 33% - 43% green tone step R90 - Kelly green...

  • Page 18: Dmx Chart Studio Mode

    DMX Chart Studio mode channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 - 100% 3.200 K 0 - 10 2.700 K 11 - 16 2.800 K 17 - 22 2.900 K 23 - 28...
  • Page 19 proportional reproduce the color crossfades around the color space 0 - 255 - 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 - 100% no effect 0 - 71 - 28% 600 Hz 72 - 84 28% - 33% fan at auto-silent speed 85 - 133 33% - 52%...

  • Page 20: Dmx Chart Rgb Mode

    DMX Chart RGB mode channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 - 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 - 100% proportional control of the color percentage proportional 0 - 255...

  • Page 21: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the con- troller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 22: Main Functions Menu

    Main functions menu (FUNC) CCT: It allows to vary the channel of white on several 2.700 color temperatures from 2.700 K to 6.500 K, [2.700 K] without DMX signal..Dimmer: [... K] It allows to choose the type of dimmer curves between exponential, logarithmic and linear 6.500 (exponential as default).
  • Page 23 Fan Speed: • Auto: balance the fan speed to meet the maxim silence without compromising the light performance. auto DMX channels: [Fan Speed] • 1 CH: it allows to change the white color temperature; • 7 CH: it allows to let the projector to work only with RGBLA channels and dimmer;...
  • Page 24 LED Frequency: It allows to set the flickering frequency from 611 to 19.000 Hz besides the default value. (DMX signals goes ahead this setting). 611 - 19.000 Default Settings: [LED Frequency] Allows to restore the factory default of the fix- ture, with exception of DMX address and LED alignment.

  • Page 25: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module temperature; [LED Temperature] • Board: shows the electronic board temper- [Temperature] ature. Volt: t.brd Shows the power supply voltage. [Board Temperature] DMX Input: vOLt Shows the value of the DMX channels received by the fixture on every channel that the fixture...
  • Page 26 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the LED (611 Hz as default). [LED Status] Fan speed: Shows the percentage fan usage. Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...

  • Page 27: Electronic Alignment Of The Leds

    The display panel of LEDko EXT FullSpectrum RGBLA allows the electronic alignment of the LEDs, this pro- cedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 28: Special Functions Of The Fixture

    To decrease the noise and the power consumption the cooling fan turns off after 10 minutes of fixture inactivity. Error messages If a malfunction occurs, LEDko EXT FullSpectrum RGBLA has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 29: Spare Parts

    Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses LEDko EXT FullSpectrum RGBLA has an automatic fuse that in most cases does not need to be replaced.
  • Page 30 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service. Question Possible solution Projector not powered on: •...
  • Page 31 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 33 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
