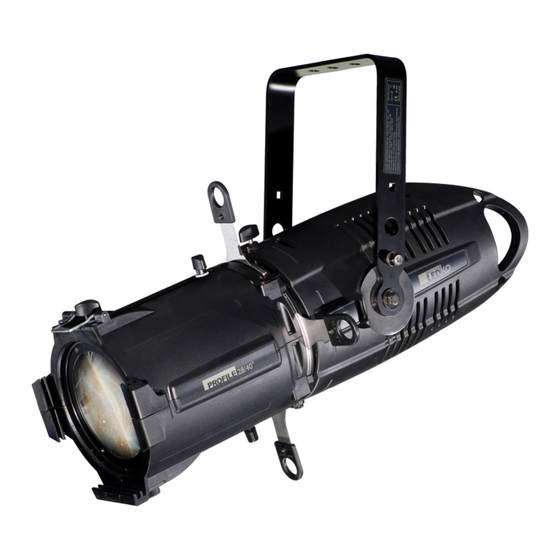

T/D
Provisional
instruction manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDko D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar LEDko D

Summary of Contents for Coemar LEDko D

  • Page 1 Provisional instruction manual Version 1.0...
  • Page 2 Serial Number: ..................................Purchase date: ..................................Dealer: ..................................Address: ..................................Suburb: ..................................Country: ..................................Phone / Fax: ..................................Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko T/D: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation .....................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General information ........................Pag. 5 2.1 Safety informations ........................Pag. 5 2.2 Warranty conditions ........................ Pag. 6 2.3 EC norms ............................. Pag. 6 3. Product specifications .......................Pag. 7 3.1 Technical characteristics ......................Pag.
  • Page 4 11. Maintenance ..........................Pag. 26 11.1 Firmware update ......................... Pag. 26 11.2 Periodic cleaning ......................... Pag. 26 11.3 Periodic controls ........................Pag. 26 11.4 Fuses ............................Pag. 26 12. Domande e risposte ......................Pag. 27...

  • Page 5: Packaging And Transportation

    Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation).

  • Page 6: Warranty Conditions

    3. The level of technology of LEDko T/D requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 7: Product Specifications

    Product specifications Technical characteristics Power supply 90-230Vac, 50-60Hz Maximum current 1.2 A @ 230 VaC, 3 A @ 90 VaC Power factor Cosϕ = 0.9 Power consumption 200 watt LEDko Tungsten: 3200k Color temperature LEDko Daylight: 5600k D and T models: CRI 80, CRI 90 Color Rendering Index (CRI) D Studio and T Studio models: CRI 96 Weight (without optic)

  • Page 8: Unit's Main Components

    Unit’s main components Components description A Adjustable yoke B Iris (optional) C Gobo holder (optional) D Lens adjusting handles E Yoke locking handle F Gel frame locking spring G Profile blade H Interchangeable optic...

  • Page 9: Back Panel Description

    Back panel description Display Plus button Menu button Minus button DMX In Enter button DMX Out PowerCon In PowerCon Out...

  • Page 10: Installation

    . Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body.

  • Page 11: Mechanical Installation

    The safety chain must pass through the handles of the unit and then attached to the structure. If using steel cables and chains not Coemar’s production, make sure they are suitable to support the weight of the unit according to normative UL/ETL (required: the weight of 6 complete devices for at least one hour).

  • Page 12: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko T/D is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 VAC) or 4 (90 VAC) fixtures.
  • Page 13 Warning!! The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to • regulatory norms is strongly recommended. LEDko T/D should not be powered through a dimmer as this may damage the • internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics •...

  • Page 14: Control Signal Connections

    . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko T/D labelled DMX512 IN e OUT.

  • Page 15: Turning On The Projector

    . Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 16: Dmx Chart

    . DMX chart 8.1. DMX Chart 5,1 channels type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100%...

  • Page 17: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 18: Main Functions Menu

    Main functions menu (FUNC) Dimmer: Choose the type of dimmer curve: diMM • Xeno: quick curve; XENO • Tungsten: mimics slow [Xenon] dimming curve of tungsten lamps. [Dimmer] Test: Allows to manually set the DMX TUNG channels controlled by a DMX console: [Tungsten] • Dimmer: sets...
  • Page 19 Display functions: dISP Changes the display settings: RVRS [Reverse] • Reverse: rotates the display of 180°; [Display Functions] • Auto: Sets or disables the automatic display turn off function, which would occour after 10 seconds of hold inactivity; [On - Off] • Hold Sets or disables the automatic display lock function that occours after 10 seconds of inactivity;...

  • Page 20: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module [LED Temperature] temperature; [Temperature] • Board: shows the electronic board temperature. t.brd Volt: [Board Temperature] Shows the power supply voltage. vOLt DMX Input: Shows the value of the DMX channels [Supply Voltage] received by the fixture on every...
  • Page 21 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Fan speed: Shows the percentage fan usage. Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...

  • Page 22: Electronic Alignment Of The Leds

    The display panel of LEDko T/D allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 23: Special Functions Of The Fixture

    If a malfunction occurs, LEDko T/D has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code...

  • Page 24: Accessories And Spare Parts

    . Accessories and spare parts LEDko T/D is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished BC10011A200 blades Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube BC10011A023...
  • Page 25 BC10011A044 max. load 20 Kg. All the components of LEDko T/D are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.

  • Page 26: Maintenance

    . Maintenance 11.1 Firmware update The firmware of LEDko T/D can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 11.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam.
  • Page 27 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: • Make sure the power cord is plugged in or test the input...
  • Page 28 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 29 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 30 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
