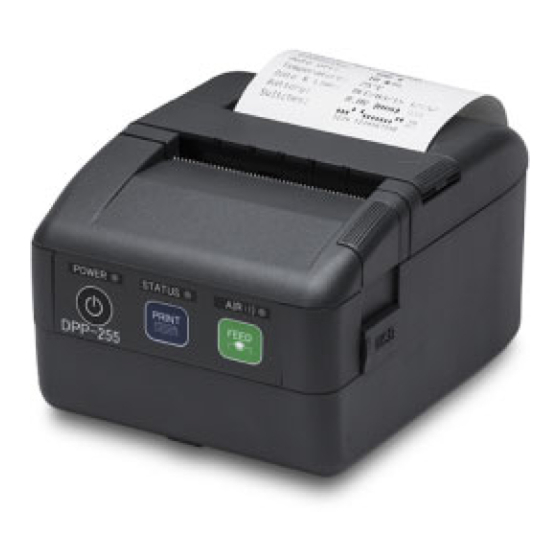

- Page 1 User Manual DPP—255 Printer 2-inch Mobile Printer...
-
Page 2: Contact Information
Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. iPad®, iPhone® and iPod touch® are trademarks of Apple®, Inc registered in the U.S. and other countries. Windows® and Windows Phone®... -
Page 3: Table Of Contents
DPP-255 User Manual Table of Contents Contact Information Print Area Legal Notice Sensors Trademarks Print Head/Cutter Position Overview Diagnostic Self-Test Guidelines for Use Paper Sensor Position Environmental Hex Dump Mode Mechanical Label Specifications Electrical Without Black Mark / With Black Mark... -
Page 4: Overview
DPP-255 User Manual Overview With the DPP-255 mobile printer you can print data from your smart phone via Bluetooth. Before using the printer, ensure the battery is fully charged. Guidelines for Use Mechanical Environmental To prevent the heating elements and driver’s integrated... -
Page 5: Electrical
DPP-255 User Manual Electrical Operational Turn off the printer and disconnect the AC adapter from the Use only specified paper or equivalent in your printer. Other power outlet when/IF these happen: paper can reduce the life of the printer head and decrease the printing quality. -
Page 6: Technical Specifications
DPP-255 User Manual Technical Specifications Printing Printing Method Direct line thermal printing Printing Speed 100mms/s maximum standard 62.5mm/s Peeler DC7.4 printing ratio 12.%% Standard paper Print Width 48mm/384 dots per line Resolution 203 x 203dpi (8 x 8 dot/mm) Dot Pitch Horizontal and vertical: 0.125mm (8 dots/mm) -
Page 7: Box Contents
DPP-255 User Manual Box Contents • Before using your DPP-255 printer, remove the printer and all included accessories from the shipping carton and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. This may be required to return the unit for servicing later, or to process a claim with the shipping carrier. -
Page 8: Getting Started
DPP-255 User Manual Getting Started DPP-255 Printer Features Refer to these sections to help you get the DPP-255 The mobile thermal printer captures data from personal printer ready for use: computers and other host systems through serial (RS232C), USB, or Bluetooth (MFi or SPP) connectivity. The versatile functionality built-in the printer allows you to use the data output application of your choice. -
Page 9: Product Overview
DPP-255 User Manual Product Overview Peeler Unit Paper Cover Release Button Power LED Status LED Air LED Print Feed Power Button Button Button... - Page 10 DPP-255 User Manual DC Jack Port USB/Serial Port...
- Page 11 DPP-255 User Manual Battery Compartment Paper Cover Paper Guide/ Stopper...
-
Page 12: Charging Your Dpp-255
DPP-255 User Manual Charging Your DPP-255 Replacing Battery Before operating the DPP-255 printer, ensure the battery Open the cover to the battery compartment on the pack is charged for at least 3 hours. Monitor the battery bottom of the printer. -
Page 13: Using Your Dpp-255
DPP-255 User Manual Setting Peeler for Labels Using Your DPP-255 Attach Belt Clip Open the cover and insert the labels into the printer with the end of the roll showing 1.5 inches (40 mm) approximately. Using your fingers, insert the two screws provides through the holes on the belt clip. -
Page 14: Installing A Paper Roll
DPP-255 User Manual Print Labels Installing a Paper Roll Depending on the paper width, paper position, and tolerance, You can drop and load a new paper roll into the printer the left and right margin calculated space may shift easily. Ensure the paper head is cool before placing the approximately +/- 1mm on the right and left sides. -
Page 15: Black Mark Specifications
DPP-255 User Manual Black Mark Specifications Paper Feed Print Area The left and right margins are the approximate distance from the paper edge. The margins shift about plus or minus 1 mm based on the paper path, paper position, and tolerances. -
Page 16: Print Head/Cutter Position
DPP-255 User Manual Print Head/Cutter Position Paper Sensor Position The numeric values are nominal center numbers. Ensure The black mark sensor and label GAP sensor are both 12.0 enough space is available for the cutting position, paper flex, mm (plus or minus 1.0 mm) from the paper’s edge. -
Page 17: Label Specifications
DPP-255 User Manual Label Specifications Paper Feed Without Black Mark / With Black Mark • Recommended Media * Length: 75 micrometer * Base paper thickness: 58 micrometer * Base paper color: Blue or white * Total thickness: 150 micrometer or less •... -
Page 18: Print Current Settings
DPP-255 User Manual Print Current Settings Set Memory Switches The function set mode switches register functions in memory If needed, you can reset the memory switches to the factory manually. defaults. Once the printer is turned on, release the Power button Note when Hardware Setup begins printing. -
Page 19: Dip Switch Location
DPP-255 User Manual DIP Switch Location DIP Switch Settings With the different methods of communication in the DPP- To locate the DIP switch settings, turn the printer to 255, ensure the DIP switches remain as the factory default, the back side, and then press down on the battery cover unless needed. -
Page 20: Printer Leds
DPP-255 User Manual Printer LEDs User and Input Buffer Memory The input buffer stores input information from the interface. No Error Description Buffer size if approximately 30 KB. Detected Standby Printer is offline. User memory is for downloading bit images and macro command registration. -
Page 21: Bluetooth Connectivity
DPP-255 User Manual Bluetooth Connectivity Wifi Specifications W Model Bluetooth is available for your DPP-255 printer. With a Data sent to the printer that is larger than 270KB can MFi license you can communicate with your iOS device. overload the printer buffer and the printer does not print In addition, you can use Android and Windows personal properly. -
Page 22: Troubleshooting
Servicing Your Printer These troubleshooting guidelines can assist you in the When your printer requires servicing of any type, contact successful installation and configuration of the DPP-255 your Infinite Peripherals account manager. mobile printer. If you are having problems operating your... -
Page 23: Product Returns & Servicing
Infinite Peripherals does not warrant, and is not responsible to our Knowledge Base and online support services. Through for, any damage to the DPP-255 (“Product”) as a result of our online support center, you’ll be able to download files, liquid or solid particle intrusion into the Product, or damaged... -
Page 24: Federal Communications Commission
DPP-255 User Manual...
