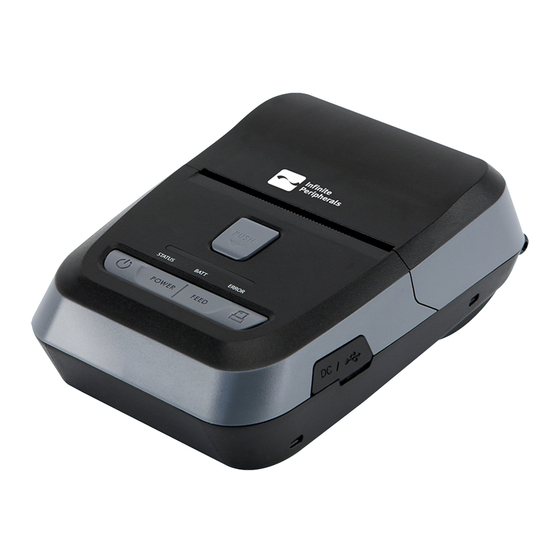

- Page 1 MP22 Mobile Printer with Wi-Fi & Bluetooth Page 1...
-
Page 2: Contact Information
CONTACT INFORMATION Mobility Sales/ Infinite Peripherals, Inc. 17681 Mitchell N Technical Support Center Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Infinite Peripherals, Inc. 2312 Touhy Ave. Headquarters/ Elk Grove Village, IL 60007 Main Warehouse Toll Free: (800) 278-7860... -
Page 3: Table Of Contents
DEVELOPING APPLICATIONS ............................. ABOUT YOUR MP22 .......................... INSTALLING THE BATTERY ..........................Charging Lamp status ........................ REMOVING THE MP22 BATTERY ......................STATUS AND OPERATIONAL MODES ............................USING YOUR MP22 ....................... Installing a Standard Paper Roll ......................ASSEMBLE BELT CLIP AND BRACKET .......................... - Page 4 .................. Federal Communications Commission Statement ....................FCC RF Radiation Exposure Statement Page 4...
-
Page 5: Compatibility
COMPATIBILITY Made for Bluetooth® device with iOS. TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. Page 5... -
Page 6: Guidelines For Use
GUIDELINES FOR USE Environmental Avoid using the printer under the following conditions, as it may result in printer failure and/or serious personal injury. • Anywhere printer may be exposed to excessive dust, moisture, or direct sunlight/heat. • Slanted surfaces, or those surfaces which may be subject to strong shocks or vibrations. -
Page 7: Operational
We recommend you do not do the following • Connect or disconnect the AC adapter with wet hands. This may result in electric shock, short circuit and failure. • Use any AC adapter or power cord other than those provided with the printer and/or specficified by an IPC account representative or certified service center. -
Page 8: Box Contents
• Carefully inspect the contents inside of the packaging for any signs of damage. If there are signs of damage, do not attempt to use it. Notify your account executive or contact Infinite Peripherals technical support at support@ipcmobile.com. • Ensure the battery pack is fully charged prior to initial use. -
Page 9: Getting Started
Important points and tips about the product are being Note: provided. First Steps The MP22 allows you to print information from your smartphone over Wi-fi or Bluetooth. The following helps you get your MP22 mobile printer ready for use. Step... -
Page 10: Developing Applications
DEVELOPING APPLICATIONS Software is not provided with your MP22 mobile printer. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the MP22 with your mobile application requires the use of the Infinite Peripherals Universal SDK. incorporates... -
Page 11: About Your Mp22
ABOUT YOUR MP22 Page 11... -
Page 12: Installing The Battery
INSTALLING THE BATTERY Before operating the MP22 printer, install the Lithium Ion rechargeable battery. Ensure the battery pack is charged for at least 3 hours and 30 minutes via the printer or in the optional external cradle. Note: Before charging the printer, ensure the input cord is connected to the AC adapter. -
Page 13: Removing The Mp22 Battery
REMOVING THE MP22 BATTERY For your safety, turn off the printer before removing the battery. Disconnect all cables including the AC adaptor and turn off the printer before attempting to remove the battery. Dispose of used batteries in accordance to federal law. This may include disposing of the batteries at a recycling center or hazardous waste collection site. -
Page 14: Status And Operational Modes
STATUS AND OPERATIONAL MODES The MP22 display buttons are used to operate the printer. Note: The battery status LEDs indicate the amount of power remaining. Actual runtime remaining depends on the ouput content, distance to computer, and so forth. The following table describes the buttons and their actions. -
Page 15: Using Your Mp22
USING YOUR MP22 Installing a Standard Paper Roll Before replacing the paper roll or closing the cover, ensure the thermal head is cool. The thermal head may be very hot immediately after printing. Touching the thermal head while hot may result in burn injuries. -
Page 16: Assemble Belt Clip And Bracket
ASSEMBLE BELT CLIP AND BRACKET Assemble the belt clip and bracket using two screws. Insert the strap into the hole on the top of the belt bracket. On the back side, slide the strap into the loop. Ensure the strap is fastened tight enough to use safely. After connecting the strap and bracket, insert the screws into the hole Page 16... -
Page 17: Diagnostic Self-Test
DIAGNOSTIC SELF-TEST You can perform a self-test at any time to print out the status of your printer troubleshooting issues. The self-test provides information about control circuit, mechanism, print quality, and ROM version. To protect the motor from overheating, stop the printer for 30 seconds after continuous printing 1.5 meters (4.92 ft). -
Page 18: (Optional) Peripherals Connection
(OPTIONAL) PERIPHERALS CONNECTION Your printer can communicate with other devices via Bluetooth, Wi-Fi, or Near-field communication (NFC). • Connect the printer with devices equipped with Bluetooth or Wi-Fi communication such as PDDs, PCs, and so forth. • NFC connection is compatible only with Bluetooth. Page 18... -
Page 19: Interface Cable Connection
INTERFACE CABLE CONNECTION You can connect the USB cable from the printer into any device such as a PDA, PC, and so forth. To connect the interface cable Connect the provided USB cable into the cable connector in the printer. Plug the other end into the USB port on the device. -
Page 20: Cleaning The Printer Head
CLEANING THE PRINTER HEAD Follow these guidelines to ensure the printer head is dust-free: • Before cleaning, turn off the power to the printer. • Wait approximately 10 minutes before cleaning. The printer head can be very hot when the printer is running. •... -
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS MECHANICAL Compatibility Direct thermal printer Printing Speed/ 100mm/s maximum/203 DPI Resolution Weight 242.5g with battery (without iOS device) Dimensions of printer 80mm x 119.4mm x 44mm Type - Thermal paper Width - Max 58mm Paper Thickness - 0.6mm Roll Diameter - Max 40mm Inner Roll Core - 12.5mm +/- 0.5mm •... - Page 22 Temperature -10-50C Operation Storage -20-60C 35-80% Operation Humidity Storage 10-90% Page 22...
-
Page 23: Black Mark
BLACK MARK This illustrates the dimensions of the paper used in the MP22 printer. 10 ~ 58 48 (PRINT WIDTH ) 58 (MAX PAPER WIDTH ) Note: The measurements in the diagram are in millimeters. Page 23... -
Page 24: Warranty
Infinite Peripherals does not warrant, and is not responsible for, any damage to the MP22 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. -
Page 25: Product Returns And Servicing
PRODUCT RETURNS AND SERVICING Use the link provided to create an account and gain access to our Knowledge Base and online support services. Through our online support center, you’ll be able to download files, open a Support Ticket, manage your RMAs, view your account Profile and subscribe to Alerts. -
Page 26: Symbols For Use
SYMBOLS FOR USE SYMBOL DEFINITION Consult Instructions for Use Manufacturer Manufacture Date Serial Number Part Number Waste Electrical and Electric Equipment Do Not Autoclave Do Not Incinerate Mark of conformity to European Union Directives Complies with part 15 of the FCC rules Page 26... -
Page 27: Federal Communications Commission (Fcc)
FEDERAL COMMUNICATIONS COMMISSION (FCC) Federal Communications Commission Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
