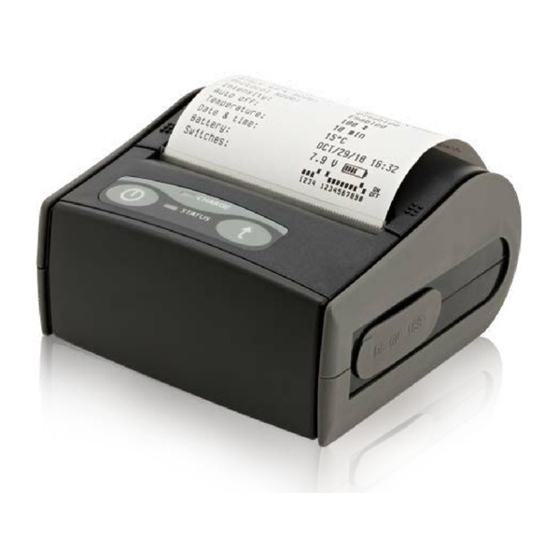

Infinite Peripherals DPP-350 User Manual
Infinite peripherals dpp-350 thermal printer user manual
Hide thumbs
Also See for DPP-350:
- User manual (31 pages) ,
- Work instructions (30 pages) ,
- User manual (21 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infinite Peripherals DPP-350
Summary of Contents for Infinite Peripherals DPP-350

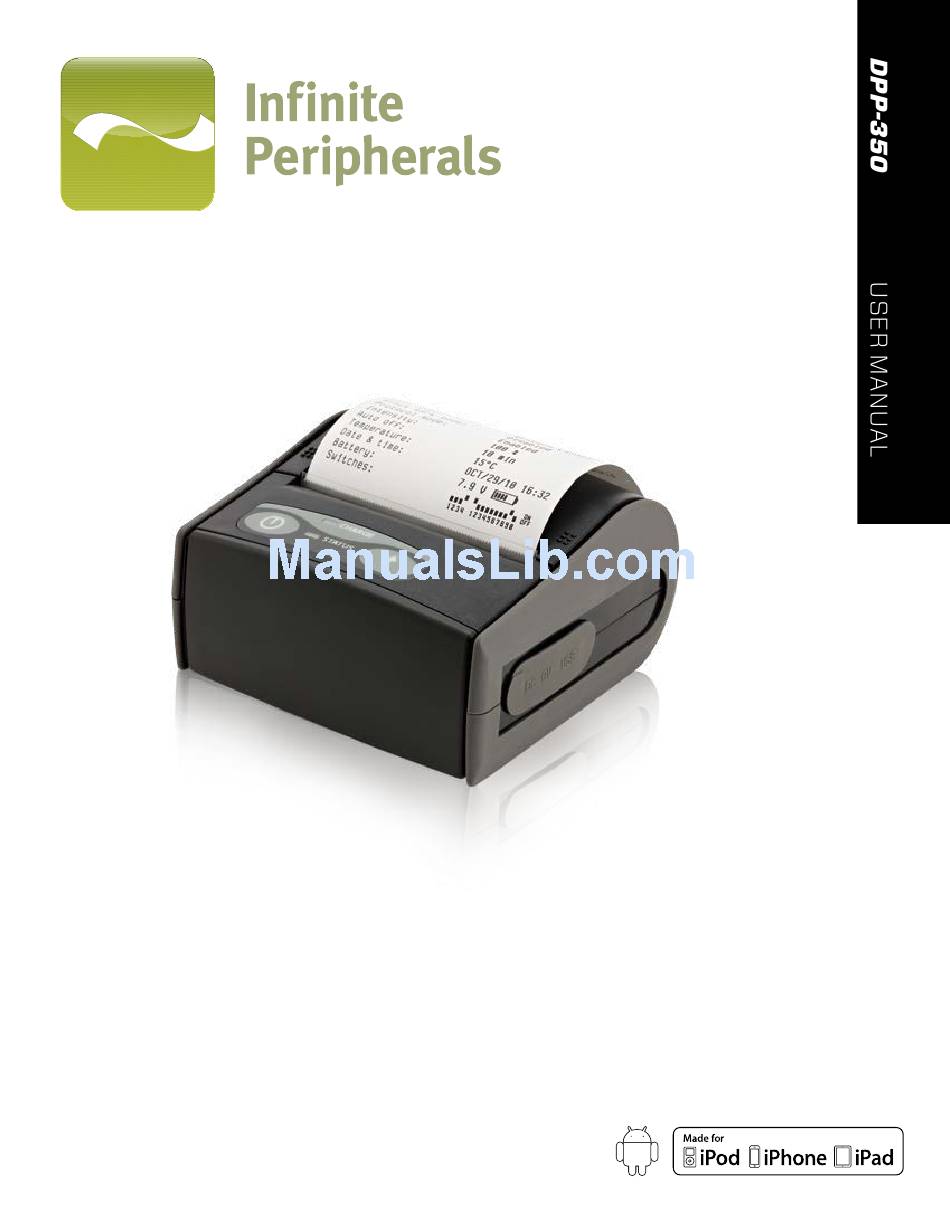

- Page 1 DPP-350 Android is a trademark of Google Inc.
-
Page 2: Contact Information
CONTACT INFORMATION Mobility Sales/Technical Center: Infinite Peripherals, Inc. 1641 McGaw Avenue Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Fax: (949) 222-0375 Headquarters/Main Warehouse: Infinite Peripherals, Inc. 2312 Touhy Elk Grove Village, IL 60004 Toll Free: (800) 278-7860... -
Page 3: Table Of Contents
CONTENTS Contents 1 Legal N otice 2 Compatability 3 Technical D ata 4 Box C ontents 5 Getting S tarted 6 About Y our D PP-‐350 7 ... -
Page 4: Legal Notice
Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Infinite Peripherals is under license. ... -
Page 5: Compatability
COMPATABILITY Made for iPhone 5 iPhone 4S iPhone 4 iPod touch (5 generation) iPod touch (4 generation) iPod touch (3 generation) iPad (4th generation) iPad mini iPad (3rd generation) iPad 2 Android Support Android iOS 2.1 and higher USER MANUAL 3 ... -
Page 6: Technical Data
TECHNICAL DATA General Specifications Printing Specs Printing Method Line thermal dot printing Printing Speed 60mms/s (480 dots/sec) at 8.5 V Print Width 72mm / 576 dots per line Resolution 203dpi (8x8 dots/mm) Horizontal – 0.125 mm (8 dots/mm) Dot pitch Vertical –... -
Page 7: Box Contents
Because of the continually evolving Driver & SDK to support new mobile devices, Drivers & SDK are distributed online and is available for download at our website indicated below. For the latest on using the DPP-350 Drivers & SDK, please refer to the SDK’s documentation. -
Page 8: Getting Started
The DPP-350 allows you to print information from your smartphone over Bluetooth®. Before using the DPP-350 thermal printer the battery should be properly charged. The following Quick Start guide will help to get your DPP-350 ready for use. Quick Start Guide... -
Page 9: About Your Dpp-350
ABOUT YOUR DPP-350 DPP-350 View 1 Paper Cover Lever Power On/Off Switch Paper Serial RS232 Port Magnetic Card DPP-350 View 2 ON/OFF &... -
Page 10: Charging The Dpp-350
CHARGING THE DPP-350 The DPP-350 uses a Lithium Ion rechargeable battery pack. Before first use, the DPP- 350 battery pack should be charged for at least 4 hours. To prevent electrical damage to the DPP-350 and/or battery pack, please use approved AC Charger only. -
Page 11: Status And Operating Modes
STATUS AND OPERATING MODES The DPP-350 uses LEDs to indicate various conditions of operations. This may be charging, active or online low conditions. The following explains this conditions and LED indication. Printer Status Solid GREEN=Battery at full charge... -
Page 12: Loading Paper
LOADING PAPER The DPP-350 uses a drop-and-load design making paper loading easy and trouble free. To load paper, simply lift up the paper cover latch and drop in the new roll as shown in the steps below. 1. L ift the paper cover latch to unlock the paper cover as shown in the figure on the right. -
Page 13: Diagnostic Self-Test
DIAGNOSTIC SELF-TEST The DPP-350 has a built-in test pattern that shows the printer’s current configuration as well as the various resident printer fonts. The self-test can also be used as a troubleshooting tool to determine printing problems or battery level. The steps below show how the self-test is printed activated. -
Page 14: Diagnostic Self-Test
DIAGNOSTIC SELF-TEST Press and Hold the LF button, while Power On the printer. Release-after~4.5 sec and after the 3-beep. The printer will print a Long Self Test, which contains information about: – R esident font sizes; – Characters per line; –... -
Page 15: Dip Switch Settings
DIP SWITCH SETTINGS The DPP-350 is designed to use different methods of communications. Care must be taken to ensure that the DIP Switches are not changed from its default factory configuration unless required. Dip Switch Settings The printer has two absolutely different operation modes. They are... -
Page 16: Dip Switch Location
DIP SWITCH LOCATION The DIP switch location is shown in the illustration below: #1 - Rem ove battery cover #2 – Rem ove battery DIP Switch USER MANUAL 14 ... -
Page 17: Memory Switch Setting
MEMORY SWITCH SETTING The DPP-350 uses nonvolatile memory for storing some of the printer default configuration. The following table shows the available options. M em ory Sw itch O ptions Memory Switch 1000000010 (See command reference GS command) Baud Rate... -
Page 18: Hardware Setup
HARDWARE SETUP Memory Switch Settings Step 1. Switch OFF the printer. Step 2. Press and hold ON/OFF button. The STATUSLED flashes GREEN and after about 6 sec holding the ON/OFF button STATUS LED flashes RED and then turns RED. Step 3. -
Page 19: Memory Switch Configuration
MEMORY SWITCH CONFIGURATION DPP-350 has 10 memory switches, which have the following action: SW1: Enable/Disable buzzer. • SW2: Disable CR / CR is executed as LF • SW3: Enable/Disable LF • SW4: LF immediately after CR/ Disable LF immediately after CR •... -
Page 20: Communications Configuration
COMMUNICATIONS CONFIGURATION The following default configurations are used for the different communication methods. • Communication with smartphone • Via Bluetooth® All LED is OFF Linea Pro 5 is in sleep or ready mode Memory Switch Options Memory Switch (1 thru 10) *******010 Physical Switch Options DIP Switch (1, 2, 3, 4) -
Page 21: Bluetooth® Setup Ios
BLUETOOTH® SETUP IOS Enable Bluetooth® on iOS device. Select Bluetooth® device, after this Pair to DPP-350. Start app “Library Demo” and select “Print”. DPP-350 DPP-350 ... -
Page 22: Bluetooth® Setup Android
Enable Bluetooth® and press search device. On the list with available device will show “DDP-350”, pair device. Default PIN is “0000”. When is paired open application “Printer Sample”. Select a device to connect “DPP-350”. For testing Bluetooth® connection press “Print self test”. -
Page 23: Magnetic Swipe Reader
MAGNETIC SWIPE READER The DPP-350 has a built-in magnetic card reader. The card reader incorporates a (3)-track magnetic read head requiring a single swipe to read field data from all three tracks. Magnetic Strip ( Face this direction ) -
Page 24: Replacing Battery
REPLACING BATTERY To replace the battery in the DPP-350 thermal printer follow the steps below. Steps: Turn over the DPP-350 and place on a flat surface. Rotate the (2) locking levers as shown in the figure on the right. -
Page 25: Developing Solutions
DEVELOPING SOLUTIONS Integrating the DPP-350 into your mobile solution requires the use of the DPP- 350 Smartphone SDK. The SDK incorporates API specific to developing printing applications and using the integrated Magnetic Card Reader capability of the DPP-350. -
Page 26: Troubleshooting
TROUBLESHOOTING If you are having problems capturing signatures refer to the table below for possible causes. Item Problem Possible Cause Thermal media is specially coated on outside of roll. Remove paper roll and reload property. See section” Loading Paper” for details on loading Paper feeds after issuing a paper. -
Page 27: Resident Command Set
RESIDENT COMMAND SET Command Description Sounds the buzzer Horizontal Tab command Printing a line and paper Feeding command Printing and paper feeding to the black mark position The operation of the command depends on the state of the configuration flags 2,3 and 4 DC2= Image LSB/MSB select... - Page 28 ESC & Selecting user character set ESC ! Specifying printing mode of text data ESC * Printing graphical data ESC + Switch’s OFF the printer ESC - Selecting/Canceling underlining ESC . Printing self test/diagnostic information ESC 2 Specifying 1/6-inch line feed rate ESC 3 Specifying line feed rate n/203 inches...
- Page 29 ESC \ Specifying relative horizontal position ESC ] Loading the default settings stored in Flash memory ESC ^ Saving current settings in Flash memory ESC _ Loading factory settings ESC ` Reading the Battery Voltage and Thermal head temperature ESC a Aligning the characters ESC b...
- Page 30 GS R Filling or inverting a rectangle in page mode GS S Selecting 2-D barcode cell size GS T Selecting the print direction in page mode GS U Selecting standard mode GS W Setting the print area width Drawing a rectangular box with selected thickness in page mode GS X GS Z...
-
Page 31: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
