Page 1: User Manual

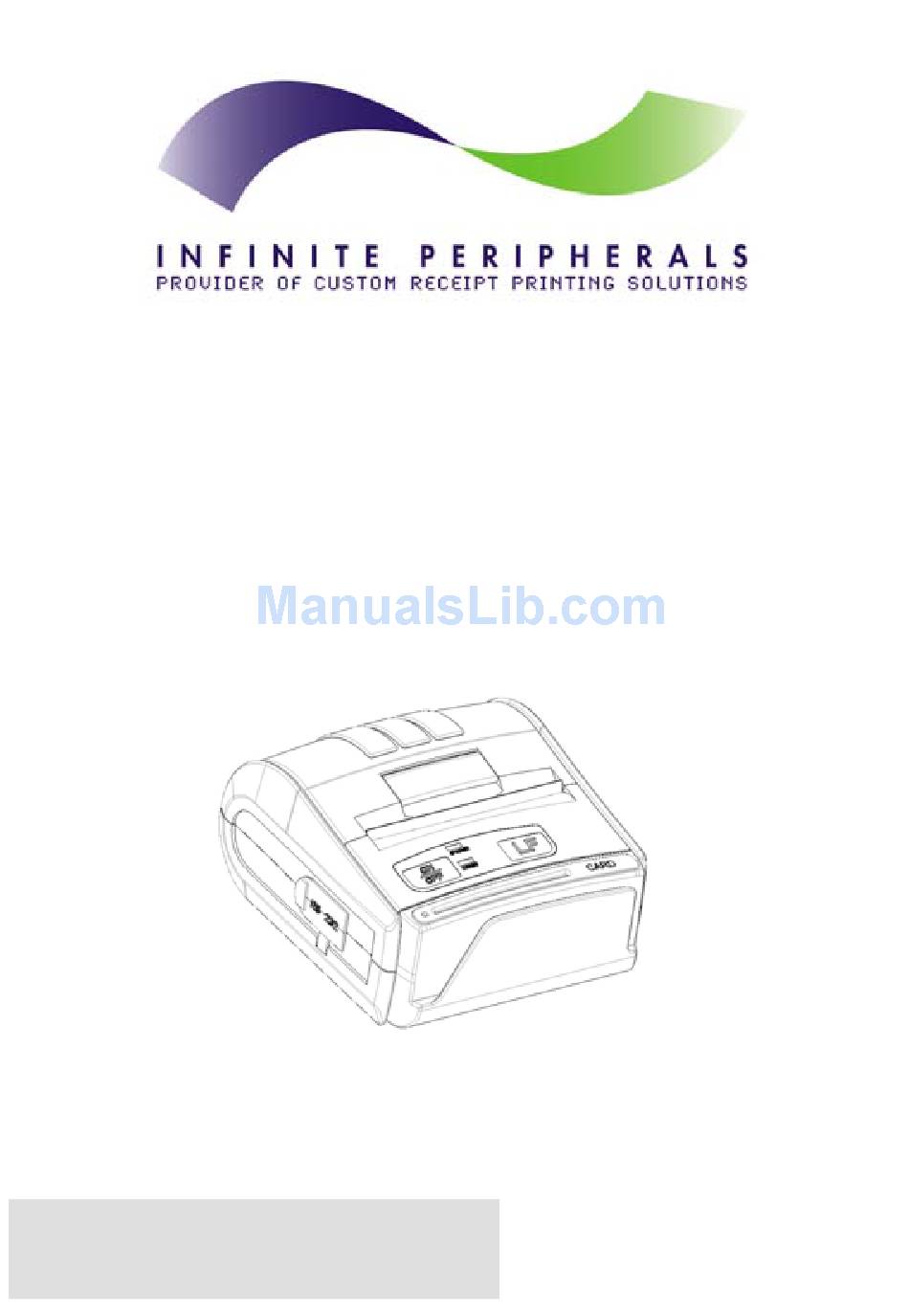

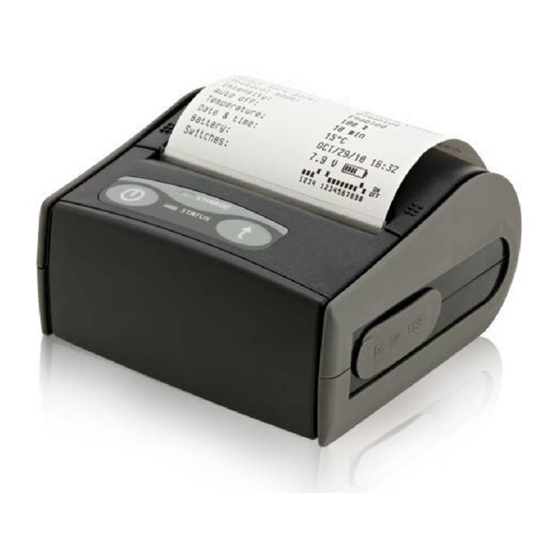

DPP-350 Thermal Printer User Manual Infinite Peripherals, Inc..... www.ipcprint.com DPP-350 User Manual v1.09... -
Page 2: Legal Notice
Legal notice The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Infinite Peripherals is under license. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 .... -
Page 3: Table Of Contents
Contents... 3 Technical Data ... 4 Box Contents ... 5 Compatible Devices ... 6 Getting Started ... 7 About Your DPP-350 ... 8 Status & Operating Modes ... 10 Loading Paper ... 11 Power On Self-test ... 12 Self-test ... 13 Dip Switch Settings... -
Page 4: Technical Data
Reliability (MTBF) Dimensions Weight Thermal paper Thermal Labels Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Specifications Line thermal dot printing 60mm/sec at 8.5V drive 72mm 8dots/mm (203 dpi) A: 12 x 24 dots B: 9 x 16 dots C: 12 x 24 dots D: 9 x 16 dots Font A, C –... -
Page 5: Box Contents
Drivers & SDK are distributed online and is available for download at our website indicated below. For details on using the DPP-350 Drivers & SDK, please refer to the SDK’s documentation. For the latest DPP-350 SDK’s, visit our developer web site at: http://www.ipcprint.com/support/default.as... -
Page 6: Compatible Devices
The DPP-350 (Serial & USB) / DPP-350 (Bluetooth thermal printer is designed specifically for use with most PDA & Smartphone devices. The DPP-350 can be used in a variety of applications where Printing / Card Reading is required. User Notes: Compatibility depends on the type of communication method “Serial / USB / Bluetooth... -
Page 7: Getting Started
Getting Started The IPC DPP-350 allows you to printer information from your PDA & Smartphone. battery should be properly charged. guide will help to get your DPP-350 ready for use. Quick Start: Steps What to do Charge the DPP-350 rechargeable... -
Page 8: About Your Dpp-350
About Your DPP-350 ♦ DPP-350 left view Power On/Off Switch Serial RS232 ♦ DPP-350 right view ON/OFF & Error LED Reader LED Smart Card Reader (Optional) Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Paper Cover Lever Paper Feed Magnetic Card Reader... -
Page 9: Charging The Dpp-350
Charging the DPP-350: The DPP-350 uses a Lithium Ion rechargeable battery pack. Before first use, the DPP-350 battery pack should be charged for at least 4 hours. To prevent electrical damage to the DPP-350 and/or battery pack, please use approved AC Charger only. -
Page 10: Status & Operating Modes
Status & Operating Modes The DPP-350 uses LEDs to indicate various conditions of operation. This may be charging, active or online, battery low conditions. The following explains these conditions and LED indication. Charging LED Power Button Charging LED Status LED Infinite Peripherals, Inc. -
Page 11: Loading Paper
Loading Paper The DPP-350 uses a drop-and-load design making paper loading easy and trouble free. cover latch and drop in the new roll as shown in the steps below. 1. Lift the paper cover latch to unlock the paper cover as shown in the figure on the right. -
Page 12: Power On Self-Test
Note: Care must be taken when entering operating modes to prevent the clearing of factory preset configuration information. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 LF Button Operation Modes Paper feed 1 - beep Self-test print 2 - beeps... -
Page 13: Self-Test
Self-test The DPP-350 has a built-in test pattern that shows the printer’s current configuration as well as the various resident printer fonts. The self-test can also be used as a troubleshooting tool to determine printing problems or battery level. show how the self-test is printed activated. -
Page 14: Dip Switch Settings
ESC/POS mode Hardware protocol Normal operation mode Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 designed (78 мм) Table 6 .... -
Page 15: Dip Switch Location
DIP Switch Location Figure 9 DIP Switch Figure 10 Infinite Peripherals, Inc..... www.ipcprint.com Page 15 DPP-350 User Manual v1.09... -
Page 16: Memory Switch Settings
POWER OFF TIME PRINT DENSITY CHARACTER TABLE Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Memory Switch Options Table 7 ....1000000010... - Page 17 Note: Care must be taken when changing factory preset configuration information. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 ....Page 17...
-
Page 18: Memory Switch Details
Allow the use of USB port for communications. ♦ SW10: (OFF) set USB as the host mode. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 ....Page 18... -
Page 19: Pairing Info Details
The printer will prompt user for a passkey on every printer initialization. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Default is 115200 Default is 5 minutes Default is 100% Default is WESTERN (1252) DEFAULT is (SAVE = No) This will advance you to the next level of . -
Page 20: Communication Configuration
DIP Switch (1, 2, 3 ,4) (see page 14) Notes: When not using Driver/SDK developer tools, set DIP Switch 4 to OFF. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Memory Switch Options Physical Switch Options Table 8 Memory Switch Options Physical Switch Options... -
Page 21: Connecting Device
The figures below show how to attach the different device to the DPP-350. ♦ Serial / USB ( Cabled ) Version: • Connect the DPP-350 using Mini USB or Serial cable is shown in the figure below. Serial Port ♦ BLUETOOTH ®... -
Page 22: Bluetooth Setup
Device peripherals to BlackBerry devices require the use of the device Bluetooth Image Blackberry Bluetooth adding / pairing the DPP-350, use the [0000] pairing key when prompted. Windows Mobile Devices: Creating a New Partnership or Pairing ® Bluetooth peripherals to your Windows Mobile devices require the use of the ®... -
Page 23: Loading Drivers
Loading Drivers Loading DPP-350 drivers for you’re PDA or Smartphones. BlackBerry Devices: Blackberry Desktop Manager shown in the figure on the right is used to load third party software on to your device. Please review your device’s documentation on how to use the Application Loader Option to load software on to your device. -
Page 24: Magnetic Card Reader (Ms Version Only)
Magnetic Card Reader The DPP-350 has a built-in magnetic card reader. The card reader incorporates a (3)-track magnetic read head requiring a single swipe to read field data from all three tracks. Magnetic Strip ( Face this direction ) The reader’s magnetic head faces towards the front of the printer. -
Page 25: Smart Card Reader (Sc Version Only)
Smart Card Reader The DPP-350 has a built-in smart card reader (optional). The smart card reader is designed to read information stored embedded on smart chips and process the information using device side software. Reader Active LED When placing the card into the reader, the smart chip must be facing to the front of the printer as show in the figure above. -
Page 26: Mifare Reader (Mf Version Only)
MIFARE Reader The DPP-350 has a built-in MIFARE reader (optional). The MIFARE reader is designed to read information stored embedded on MIFARE contact less cards or tags and process the information using device side software. Place the MIFARE card close to the printer facing the front of the printer as shown in the figure above. -
Page 27: Replacing Battery
Replacing Battery To replace the battery in the DPP-350 thermal printer follow the steps below. Steps: 1. Turn over the DPP-350 and place on a flat surface. Rotate the (2) locking levers as shown in the figure on the right. -
Page 28: Developing Solution
Basic VB.Net Windows C ++ Mobile C Sharp For details on using the DPP-350 SDK, please refer to the SDK’s documentation. For the latest DPP-350 SDK’s, visit our developer web site at: http://www.ipcprint.com/support/default.asp Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 SDK - IDE RIM BlackBerry Java JDE 4.1 and higher... -
Page 29: Troubleshooting
Printing is light or missing only on half of the print width. Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Possible Cause Thermal media is specially coated on outside of roll. Remove paper roll and reload properly. See section “Loading Paper”... -
Page 30: Federal Communications Commission
Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 ....Page 30... -
Page 31: Contact Information
Contact Information National Sales Headquarters: HQ and Main Distribution Facility: East Coast Sales Office Technical Support: Infinite Peripherals, Inc. www.ipcprint.com DPP-350 User Manual v1.09 Infinite Peripherals, Inc. 1340 Reynolds Avenue Suite 101 Irvine, CA 92614 Toll Free: 866-278-7860 Phone: 949-222-0300...
