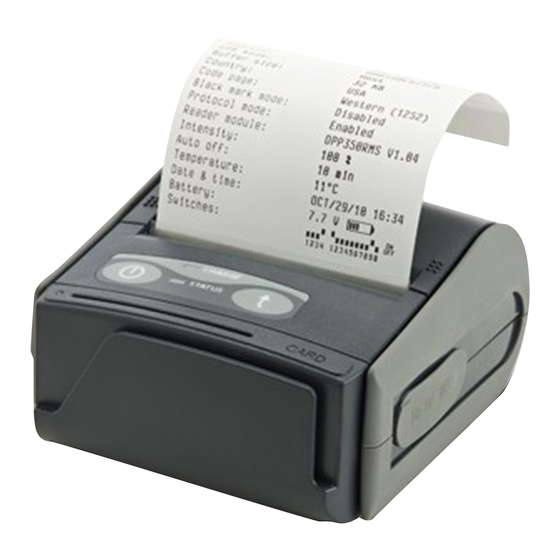

Infinite Peripherals DPP–350 User Manual

2-inch mobile printer
Hide thumbs Also See for DPP–350:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
DPP–350 Mobile Printer
2-inch Mobile Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPP–350 and is the answer not in the manual?

Questions and answers

Related Manuals for Infinite Peripherals DPP–350

Summary of Contents for Infinite Peripherals DPP–350

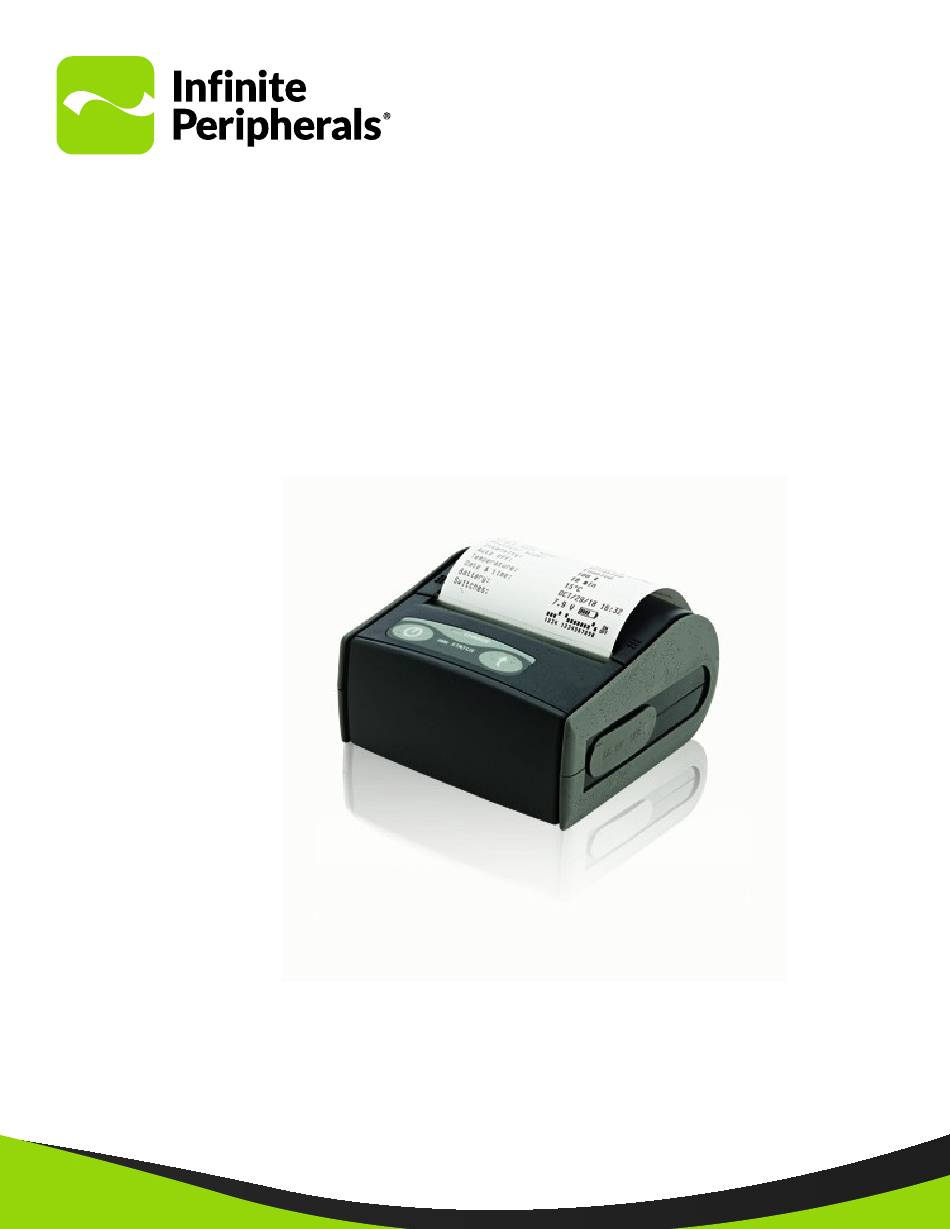

  • Page 1 User Manual DPP–350 Mobile Printer 2-inch Mobile Printer...

  • Page 2: Contact Information

    Please note that the use of this accessory with an iPhone may affect wireless performance. Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    DPP-350 User Manual Table of Contents Contact Information DIP Switch Location Legal Notice DIP Switch Settings Trademarks Memory Switch Settings Overview Set-up the Hardware Memory Switch Guidelines for Use Memory Switch Configuration Environmental Communication Configuration Mechanical Bluetooth Pairing Technical Specifications Pair Your iOS Device Box Contents Pair Your Android Device...

  • Page 4: Overview

    Loose paper or paper blocking exit tray may cause the paper to jam. Note If the paper jams in the paper exit tray, turn off the power to the printer. • Do not attempt to disassemble or repair the printer, AC adapter, or power cord yourself. Contact Infinite Peripherals at https://ipcmobile.com/support/support-form...
  • Page 5 DPP-350 User Manual Electrical Turn off the printer and disconnect the AC adapter from the power outlet when/IF these happen: • Smoke, odd smells, or unusual noises are emitted by the printer. • Metallic objects are dropped, or any liquid is spilled inside the printer. •...

  • Page 6: Technical Specifications

    DPP-350 User Manual Technical Specifications Printing Printing Method Line thermal dot printing Printing Speed 60mms/s (480 dots per second) at 8.5V Print Width 72mm/576 dots per line Resolution 203dpi (8 x 9 dot/mm) Dot Pitch Horizontal and vertical: 0.125mm (8 dots/mm) Resident Fonts A: 12 x 24 dots (48 char per line) B: 9 x 16 dots (64 char per line)

  • Page 7: Box Contents

    DPP-350 User Manual Box Contents • Before using your DPP-350 printer, remove the printer and all included accessories from the shipping carton and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. This may be required to return the unit for servicing later, or to process a claim with the shipping carrier.

  • Page 8: Getting Started

    Developing Applications Software is not provided with your mobile printer. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the printer with your mobile application requires the use of the Infinite Peripherals Software Developers Kit (SDK).

  • Page 9: Product Overview

    DPP-350 User Manual Product Overview Paper Cover Lever Paper Feed (LF) Magnetic Card Reader (Optional) Serial RS232 Port Contactless Card Reader (Optional) Smart Card Reader (Optional) Charging LED Power On/Off Button Mini USB Port Reader LED Online/Error LED Charger Input (STATUS)

  • Page 10: Charge Your Dpp-350

    DPP-350 User Manual Charge Your DPP-350 Before operating the DPP-350 printer, install the Lithium Ion rechargeable battery. Ensure the battery pack is charged for at least 4 hours. Note Ensure the input cord is connected to the AC adapter before charging the battery. To prevent electrical damage to your printer and/or battery pack, only use the approved AC charger provided with the printer.

  • Page 11: Replace The Battery

    DPP-350 User Manual Replace the Battery Status and Operational Modes The LEDs on the printer indicate the modes of operations. Open the battery compartment cover on the bottom of LEDs illuminate information about the connection status, the printer by rotating the two locking levers. charging and/or low battery status.

  • Page 12: Using Your Dpp-350

    DPP-350 User Manual Using Your DPP-350 Diagnostic Self-Test Installing a Paper Roll The built-in test pattern shows the DPP-350 printer’s current configuration and resident fonts. The self test Before replacing the paper roll or closing the cover, ensure is used for troubleshooting and helps you determine the mobile head is cool.

  • Page 13: Dip Switch Location

    DPP-350 User Manual DIP Switch Location DIP Switch Settings With the different methods of communication designed To locate the DIP switch settings, turn the printer to the in the DPP-350, ensure the DIP switches remain as the back side, and rotate the two locking levers (see 1a & 1b). factory default, unless required for change.

  • Page 14: Memory Switch Settings

    DPP-350 User Manual Memory Switch Settings Memory Switch Configuration Non-volatile memory is used in storing the printer’s default Ten memory switches are available on the DPP-350. configuration settings. Memory Description Note Switch If you change any factory preset configurations, verify the Enable/disable buzzer settings are correct.

  • Page 15: Bluetooth Pairing

    DPP-350 User Manual Bluetooth Pairing Pair Your Android Device Enable Bluetooth, and then search for available devices. Pair Your iOS Device Once DPP-350 is displayed under Available devices, you Enable Bluetooth on your iOS device. can pair it, and tap 0000 as the default pin. To pair, select DPP-350 under Devices.

  • Page 16: (Optional) Magnetic Stripe Reader

    DPP-350 User Manual (Optional) Magnetic Stripe Reader The built-in magnetic card reader incorporates a 3-track magnetic read head requiring a single swipe to capture field data from all three tracks. The magnetic card reader is in the front of the printer. Before using the magnetic strip reader, you must install the software to read and process the card data.

  • Page 17: Resident Command Set

    DPP-350 User Manual Resident Command Set Command Command 1 BLE Sounds Buzzer 41 ESC D Set horizontal tab position 2 HT Horizontal Tab 42 ESC E Set/cancel emphasized mode 3 LF Print a line/Paper feed 43 ESC F Fill/invert page are page mode 4 FF Print/paper to black mark position 44 ESC G Set/cancel double-strike mode 5 CR Based on flags 2,3,4...
  • Page 18 DPP-350 User Manual Resident Command Set Command Asian Language Support Commands 81 GS / Print downloaded bit image 106 FS ! Set 2-byte text data print mode 82 GS * Define downloaded bit image 107 FS & Select 2-byte text mode (JIS or GB2312) 83 GS : Start/end macro definitions 108 FS - Set/cancel 2-byte underline text mode 84 GS B Enable/disable inverse white/black print...

  • Page 19: Troubleshooting

    When your printer requires servicing of any type, contact successful installation and configuration of the DPP-350 your Infinite Peripherals account manager. mobile printer. If you are having problems operating your printer, first verify that there is power to the printer and that Important it is powered on and sufficiently charged.

  • Page 20: Disclaimer

    Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product.

  • Page 21: Federal Communications Commission

    DPP-350 User Manual...
