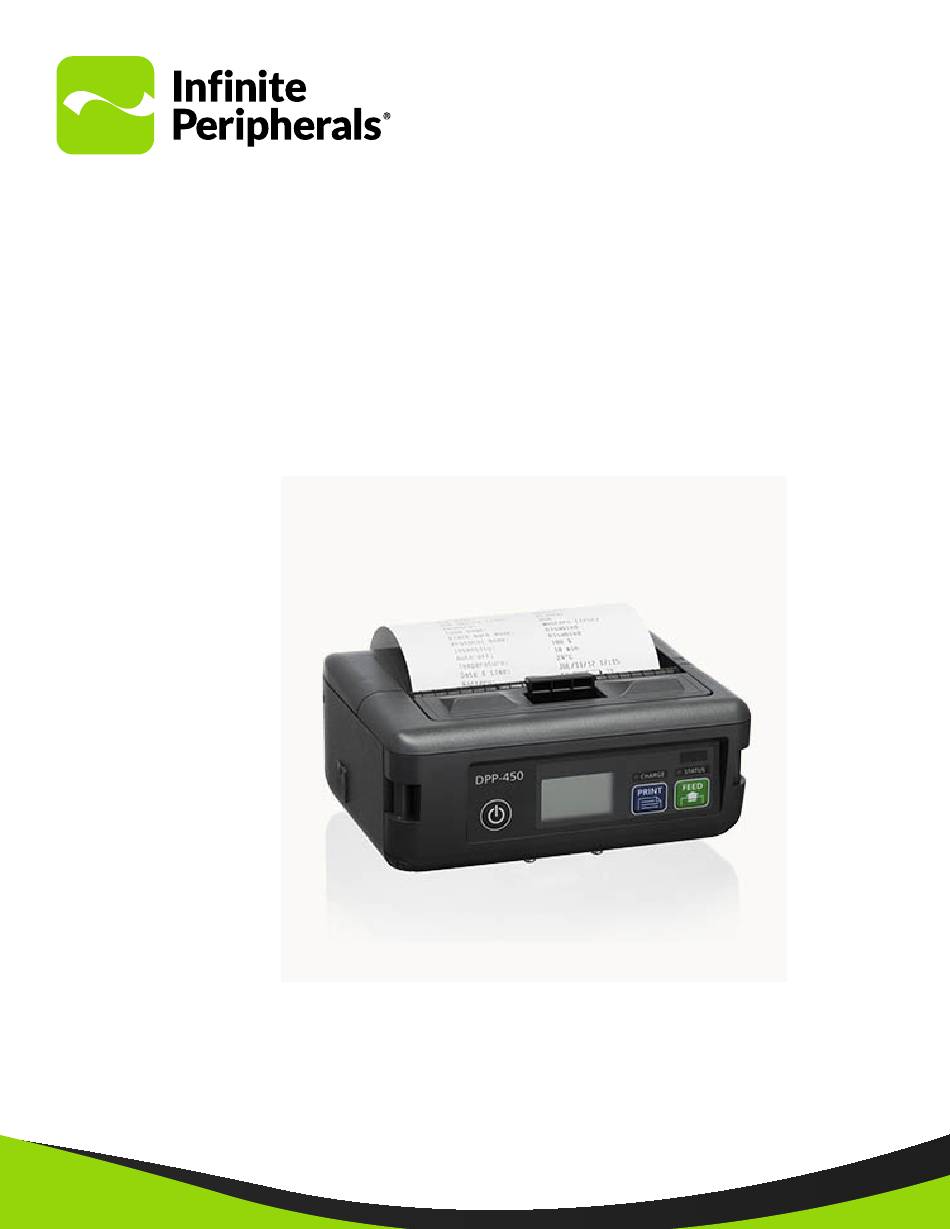

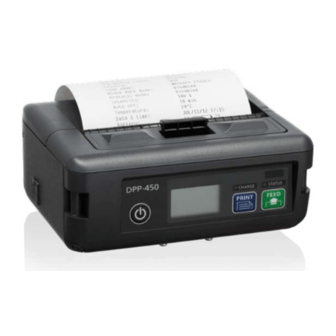

- Page 1 User Manual DPP—450 Printer ESC/POS Mobile Printer...
-
Page 2: Contact Information
Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. iPad®, iPhone® and iPod touch® are trademarks of Apple®, Inc registered in the U.S. and other countries. Windows® and Windows Phone®... -
Page 3: Table Of Contents
DPP-450 User Manual Table of Contents Contact Information Set-up Label Printing Legal Notice Set-up the Hardware Trademarks Configuration Menu Options Overview Diagnostic Self-Test Guidelines for Use Hex Dump Mode Environmental Print Current Settings Mechanical Change Settings Electrical Set Memory Switches... -
Page 4: Overview
DPP-450 User Manual Overview With the DPP-450 mobile printer you can print data from your smart phone via Bluetooth. Before using the printer, ensure the battery is fully charged. Guidelines for Use Mechanical Environmental To prevent the heating elements and driver’s integrated... -
Page 5: Electrical
DPP-450 User Manual Electrical Operational Turn off the printer and disconnect the AC adapter from the Use only specified paper or equivalent in your printer. Other power outlet when/IF these happen: paper can reduce the life of the printer head and decrease the printing quality. -
Page 6: Technical Specifications
DPP-450 User Manual Technical Specifications Printing Printing Method Direct line thermal printing Printing Speed 100mms/s maximum standard 62.5mm/s Peeler DC7.4 printing ratio 12.%% Standard paper Print Width 48mm/384 dots per line Resolution 203 x 203dpi (8 x 8 dot/mm) Dot Pitch Horizontal and vertical: 0.125mm (8 dots/mm) -
Page 7: Box Contents
DPP-450 User Manual Box Contents • Before using your DPP-450 printer, remove the printer and all included accessories from the shipping carton and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. This may be required to return the unit for servicing later, or to process a claim with the shipping carrier. -
Page 8: Getting Started
DPP-450 User Manual Getting Started DPP-450 Printer Features Refer to these sections to help you get the DPP-450 The mobile thermal printer captures data from personal printer ready for use: computers and other host systems through serial (RS232C), USB, or Bluetooth (MFi or SPP) connectivity. The versatile functionality built-in the printer allows you to use the data output application of your choice. -
Page 9: Product Overview
DPP-450 User Manual Product Overview Paper Cover Latch Paper Cover Power Button Battery Location Print Button USB/RS232C Port Paper Feed Button Battery Charging Jack... - Page 10 DPP-450 User Manual...
-
Page 11: Charging Your Dpp-450
DPP-450 User Manual Charging Your DPP-450 Charging LED Status Before operating the DPP-450 printer, ensure the battery Battery LED indicators display the modes of operation pack is charged for at least 3 hours. Monitor the battery such as connection status and charging and/or low battery status after the initial charge. -
Page 12: Replacing The Battery
DPP-450 User Manual Replacing the Battery Disconnect all cables and AC adapter before removing the battery. Turn off the printer. Open the cover to the battery compartment on the bottom of the printer. Remove the battery. Place a new battery pack into the battery compartment. -
Page 13: Using Your Dpp-450
DPP-450 User Manual Using Your DPP-450 Installing Standard Paper Rolls Installing Label Paper Rolls You can drop and load a new paper roll into the printer The printer head should be cool before replacing the paper easily. Ensure the paper head is cool before placing the roll. -
Page 14: Attach Belt Clip
DPP-450 User Manual Print Labels Attach Belt Clip The printer is designed to be worn on a belt with the belt clip Depending on the paper width, paper position, and tolerance, accessory. the left and right margin calculated space may shift approximately +/- 1mm on the right and left sides. -
Page 15: Set-Up The Hardware
DPP-450 User Manual Set-up the Hardware Diagnostic Self-Test You can enter printer modes in your printer via the Turn on the printer. Feed button. These modes are used to help developers in debugging programming and communication issues. Press and hold the Power button until the Status LED... -
Page 16: Print Current Settings
DPP-450 User Manual Print Current Settings Set Memory Switches The function set mode switches register functions in memory If needed, you can reset the memory switches to the factory manually. defaults. Once the printer is turned on, release the Power button Note when Hardware Setup begins printing. -
Page 17: Dip Switch Location
DPP-450 User Manual DIP Switch Location DIP Switch Settings With the different methods of communication in the DPP- To locate the DIP switch settings, turn the printer to 450, ensure the DIP switches remain as the factory default, the back side, and then press down on the battery cover unless needed. -
Page 18: Printer Leds
Power LED: Off Status LED: Red Charging Power LED: Green > Green > No LED (Off) Tap the name of the printer, IPC DPP-450, and then Pair Status LED: No LED (Off) to connect. Charging Complete Power LED: Green Status LED: No LED (Off) -
Page 19: Set-Up Android
WPA2 or another security setting may be configured. Refer Access Settings > Bluetooth. to the communication and security setting guide for details. Tap IPC DPP-450 and OK to connect to the printer. Note Confirm DPP-450 is displayed in Paired Devices. -
Page 20: Resident Command Set
DPP-450 User Manual Resident Command Set Command Command 1 BLE Sounds Buzzer 41 ESC D Set horizontal tab position 2 HT Horizontal Tab 42 ESC E Set/cancel emphasized mode 3 LF Print a line/Paper feed 43 ESC F Fill/invert page are page mode... -
Page 21: Resident Command Set
DPP-450 User Manual Resident Command Set Command Asian Language Support Commands 81 GS / Print downloaded bit image 106 FS ! Set 2-byte text data print mode 82 GS * Define downloaded bit image 107 FS & Select 2-byte text mode (JIS or GB2312) -
Page 22: Troubleshooting
Servicing Your Printer These troubleshooting guidelines can assist you in the When your printer requires servicing of any type, contact successful installation and configuration of the DPP-450 your Infinite Peripherals account manager. mobile printer. If you are having problems operating your... -
Page 23: Product Returns & Servicing
Infinite Peripherals does not warrant, and is not responsible to our Knowledge Base and online support services. Through for, any damage to the DPP-450 (“Product”) as a result of our online support center, you’ll be able to download files, liquid or solid particle intrusion into the Product, or damaged... -
Page 24: Federal Communications Commission
DPP-450 User Manual...
