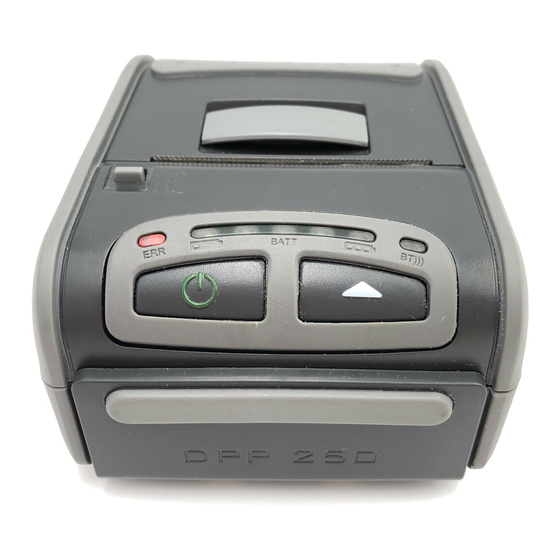

Infinite Peripherals DPP-250 User Manual
2-inch mobile printer
Hide thumbs
Also See for DPP-250:
- User manual (29 pages) ,
- User manual (32 pages) ,
- User manual (30 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Infinite Peripherals DPP-250
Summary of Contents for Infinite Peripherals DPP-250

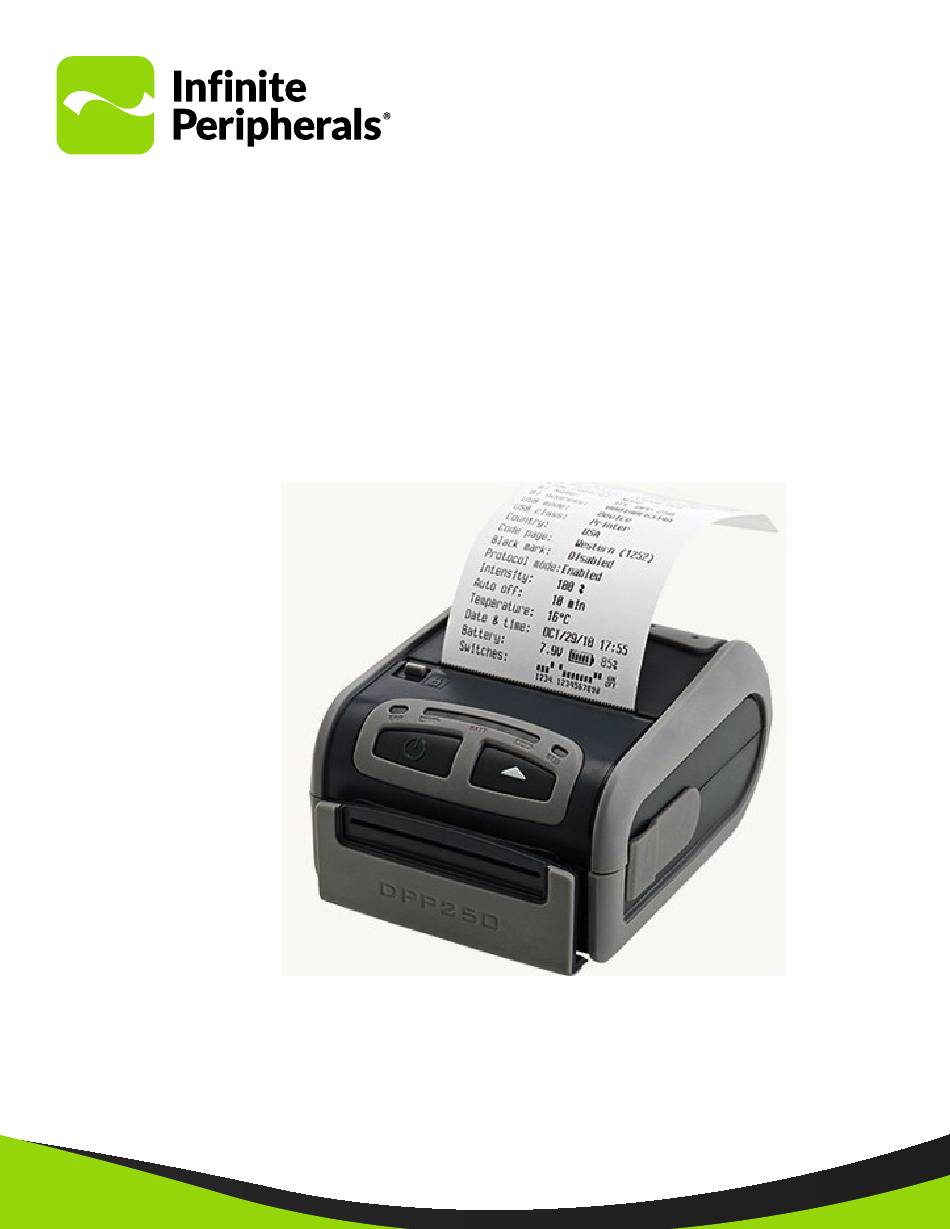

- Page 1 User Manual DPP–250 Printer 2-inch Mobile Printer...
-
Page 2: Contact Information
Please note that the use of this accessory with an iPhone may affect wireless performance. Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
DPP-250 User Manual Table of Contents Contact Information DIP Switch Location Legal Notice DIP Switch Settings Trademarks Memory Switch Settings Overview Set-up the Hardware Memory Switch Guidelines for Use Memory Switch Configuration Environmental Communication Configuration Mechanical Bluetooth Pairing Electrical Pair Your iOS Device... -
Page 4: Overview
DPP-250 User Manual Overview With the DPP-250 mobile printer you can print data from your smart phone via Bluetooth. Before using the printer, ensure the battery is fully charged. Guidelines for Use Environmental To prevent printer failure and/or serious personal injury, avoid using the mobile printer under these conditions: •... -
Page 5: Electrical
DPP-250 User Manual Electrical Turn off the printer and disconnect the AC adapter from the power outlet when/IF these happen: • Smoke, odd smells, or unusual noises are emitted by the printer. • Metallic objects are dropped, or any liquid is spilled inside the printer. -
Page 6: Technical Specifications
DPP-250 User Manual Technical Specifications Printing Printing Method Line thermal dot printing Printing Speed 60mms/s (480 dots per second) at 8.5V Print Width 48mm/384 dots per line Resolution 203dpi (8 x 9 dot/mm) Dot Pitch Horizontal and vertical: 0.125mm (8 dots/mm) -
Page 7: Box Contents
DPP-250 User Manual Box Contents • Before using your DPP-250 printer, remove the printer and all included accessories from the shipping carton and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. This may be required to return the unit for servicing later, or to process a claim with the shipping carrier. -
Page 8: Getting Started
DPP-250 User Manual Accessories Getting Started Visit our website at https://ipcmobile.com or contact your Refer to these sections to help you get the DPP-250 Infinite Peripherals account representative for additional printer ready for use: information about our current and future product accessories. -
Page 9: Product Overview
DPP-250 User Manual Product Overview... -
Page 10: Charging Your Dpp-250
DPP-250 User Manual Charging Your DPP-250 Before operating the DPP-250 printer, install the Lithium Ion rechargeable battery. Ensure the battery pack is charged for at least 4 hours. Note Ensure the input cord is connected to the AC adapter before charging the battery. -
Page 11: Using Your Dpp-250
Use both hands to close the paper cover to ensure it is closed completely. Diagnostic Self-Test The built-in test pattern shows the DPP-250 printer’s current configuration and resident fonts. The self test is used for troubleshooting and helps you determine printing issues or battery statuses. -
Page 12: Dip Switch Location
With the different methods of communication designed To locate the DIP switch settings, turn the printer to in the DPP-250, ensure the DIP switches remain as the the back side, and then press down on the battery cover factory default, unless required for change. Two different latch. -
Page 13: Memory Switch Settings
DPP-250 User Manual Memory Switch Settings Memory Switch Configuration Non-volatile memory is used in storing the printer’s default Ten memory switches are available on the DPP-250. configuration settings. Memory Description Note Switch If you change any factory preset configurations, verify the Enable/disable buzzer settings are correct. -
Page 14: Bluetooth Pairing
Enable Bluetooth on your iOS device. can pair it, and tap 0000 as the default pin. To pair, select DPP-250 under Devices. The blue LED on After pairing is successful, open the Printer Sample app. the printer blinks when the devices are connected. -
Page 15: (Optional) Magnetic Stripe Reader
Before using the magnetic strip reader, you must install the it from the battery compartment. software to read and process the card data. Contact your Infinite Peripherals or refer to https://developer.ipcmobile. Place a new battery pack gently into the battery com/ compartment. -
Page 16: Resident Command Set
DPP-250 User Manual Resident Command Set Command Command 1 BLE Sounds Buzzer 41 ESC D Set horizontal tab position 2 HT Horizontal Tab 42 ESC E Set/cancel emphasized mode 3 LF Print a line/Paper feed 43 ESC F Fill/invert page are page mode... -
Page 17: Resident Command Set
DPP-250 User Manual Resident Command Set Command Asian Language Support Commands 81 GS / Print downloaded bit image 106 FS ! Set 2-byte text data print mode 82 GS * Define downloaded bit image 107 FS & Select 2-byte text mode (JIS or GB2312) -
Page 18: Troubleshooting
Servicing Your Printer These troubleshooting guidelines can assist you in the When your printer requires servicing of any type, contact successful installation and configuration of the DPP-250 your Infinite Peripherals account manager. mobile printer. If you are having problems operating your... -
Page 19: Product Returns & Servicing
Infinite Peripherals does not warrant, and is not responsible to our Knowledge Base and online support services. Through for, any damage to the DPP-250 (“Product”) as a result of our online support center, you’ll be able to download files, liquid or solid particle intrusion into the Product, or damaged... -
Page 20: Federal Communications Commission
DPP-250 User Manual...
