QUICK START GUIDE

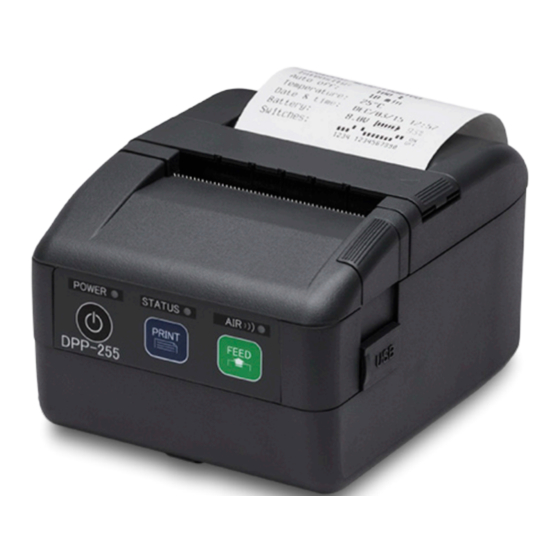

DPP–255
2-Inch Mobile Printer
Getting Started
The mobile thermal printer captures data from
personal computers and other host systems through
serial (RS232C), USB, or Bluetooth (MFi or SPP)
connectivity.
The versatile functionality built-in the printer allows
you to use the data output application of your choice.
Charging Your DPP-255
Before operating the DPP-255 printer, install the
Lithium Ion rechargeable battery. A a fully depleted
battery, ensure the battery pack is charged for at
least 4 hours.
Note
Ensure the input cord is connected to the AC adapter
before charging the battery.
To prevent electrical damage to your printer and/
or battery pack, only use the approved AC charger
provided with the printer.
1. Pull the DC jack port tab backwards.
2. Insert the AC adapter into the port.
3. Introduce the AC adapter plug into an
appropriate power outlet to begin charging.
Note
LED status during charging is displayed.
Installing a Paper Roll
Before replacing the paper roll or closing the cover, ensure the mobile head is cool.
The mobile head may be very hot immediately after printing.
Note
Touching the mobile head while hot may result in burn injuries.
1. Open the paper cover by pressing the Open button.
If desired, turn the knob with your finger to set the width of the paper guide.
2. Insert the new paper roll so it unfolds from the bottom. Remove the paper core
when empty.
3. After the paper is inserted, adjust the paper guide so it's wider than the width of
the paper, and then pull is out.
4. Press the Feed button until a small amount of paper appears.
Note
At least 12mm or more of the media should be seen above the top of the printer
before closing the printer cover.
5. Use both hands to close the paper cover to ensure it is closed completely.
Charging LED Status
Battery LED indicators display the modes of operation such as connection status and
charging and/or low battery conditions.
Color LED Status
Solid Red Paper is out or stopped
printing.
Flashes Red Printer head is over
heating.
Solid Green Battery charging
complete.
Power is on.
Flashes Battery is low.
Green
Flashes Blue Bluetooth paired.
Action
Turns green once paper
is replaced.
Turn off printer.
N/A
Charge battery.
N/A
