Maximalfv Battery Hookup And Tamper Switch Installation - Altronix Maximal3FV Installation Manual

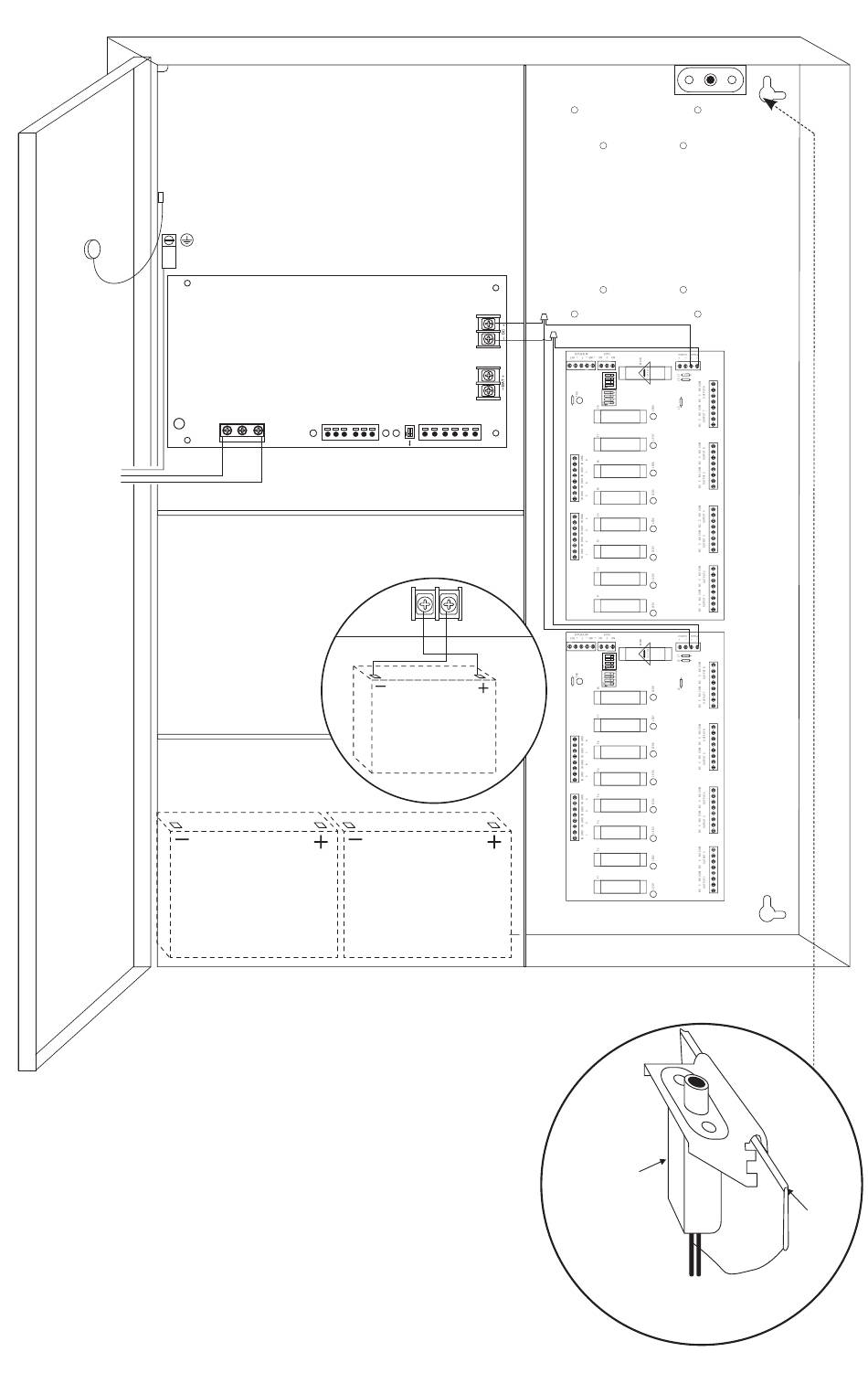

Fig. 3 Maximal3FV, Maximal5FV, and Maximal7FV.
Wire
Strap
(from
Enclosure
to Door)
Input
220VAC
50/60Hz
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to terminal marked
[+ BAT] and to the [Positive (+)]
terminal of the battery.
Connect black battery lead to
terminal marked [BAT –]
and to the [Negative (–)]
terminal of the battery.
CAUTION: When power supply board is set for
12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non
power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the
largest batteries that can fit in this enclosure.
An external battery enclosure must be used
if using the 40AH or 65AH batteries.
Maximal3FV / Maximal5FV / Maximal7FV Access Power Controllers (Fused)
Ground Lug
Power Supply Board
AC FAIL
AC1
5A 250V
L G N
NC C NO
Line Neutral
Fig. 3a
Optional Rechargeable
Stand-by Battery
BAT FAIL
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO GND
NC C NO + AUX –
2 hr. disable
SUPERVISED RESET
+ BAT ---
Optional
Rechargeable
Stand-by Battery
Optional Rechargeable
Stand-by Battery
Fig. 3b
Tamper Switch
Honeywell
Model 112
Tamper Switch
or equivalent
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Edge of
Enclosure
