Facp/Optional Power Supply Hook-Up Diagrams - Altronix Maximal3FV Installation Manual

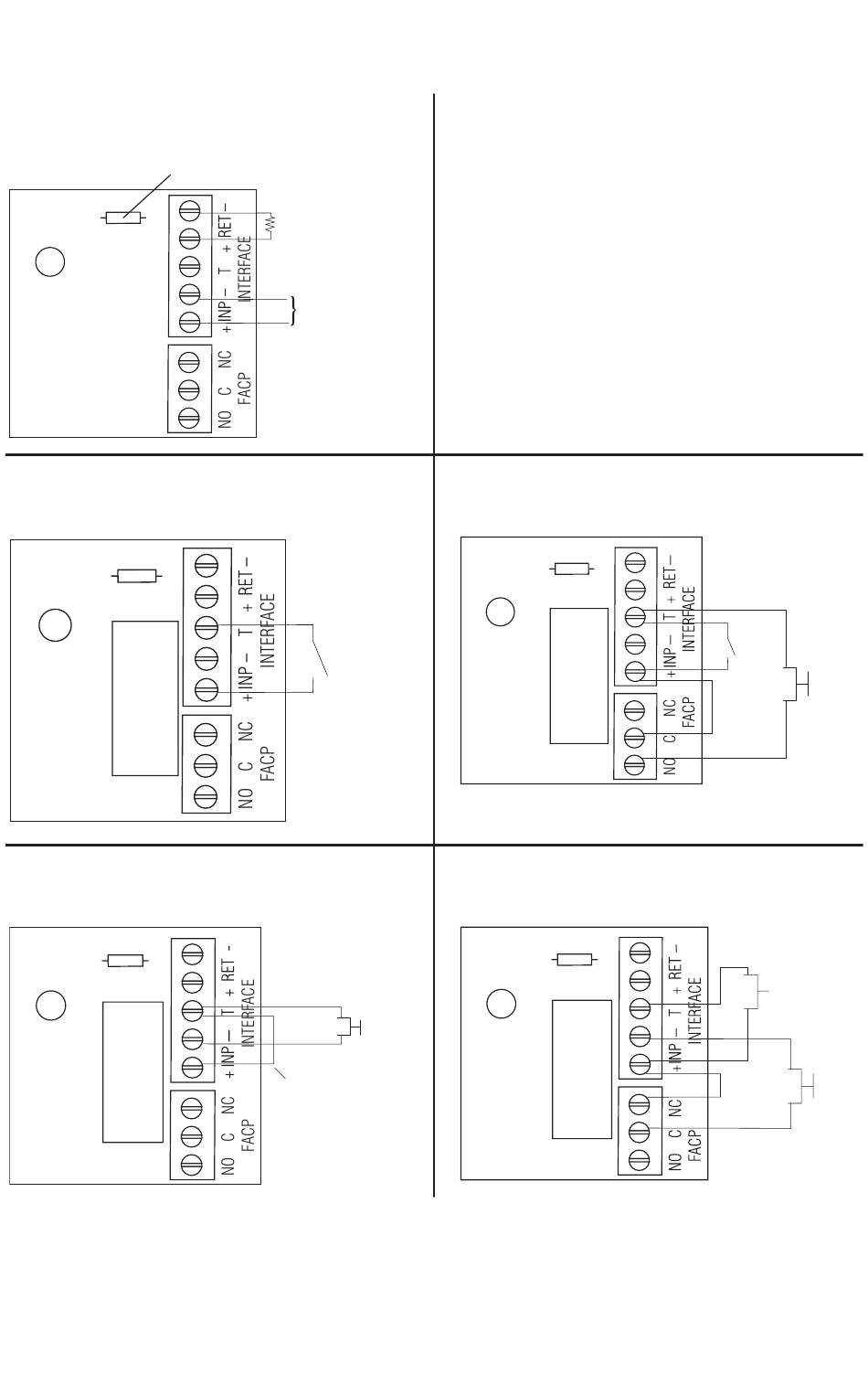

Fig. 5 Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm condition):
JUMPER J3
J3
TRG
Fig. 6 Normally Open: Non-Latching FACP
trigger input:
J3
TRG
Fig. 8 Normally Closed: Non-Latching FACP
trigger input:
J3
TRG
Maximal3FV / Maximal5FV / Maximal7FV Access Power Controllers (Fused)
FACP Hook-Up Diagrams:
CUT
FACP
OUTPUT EOL
--
FROM FACP
+
OUTPUT CIRCUIT
JUMPER
Fig. 7 Normally Open FACP Latching trigger
N.O. TRIGGER
INPUT
Fig. 9 Normally Closed: Latching FACP trigger
N.C. DRY
TRIGGER
INPUT
input with reset:
J3
TRG
input with reset:
J3
TRG
N.O.
TRIGGER
INPUT
N.C.
RESET
SWITCH
JUMPER
N.C.
RESET
SWITCH
N.C.
TRIGGER
JUMPER
INPUT
- 11 -
