Tektronix WVR5200 Technical Reference page 22

Waveform rasterizers system integration

Hide thumbs Also See for WVR5200:

Table of Contents

Video System Installation

For Monitoring the

Embedded Audio Signal

in a Serial Digital Video

Stream

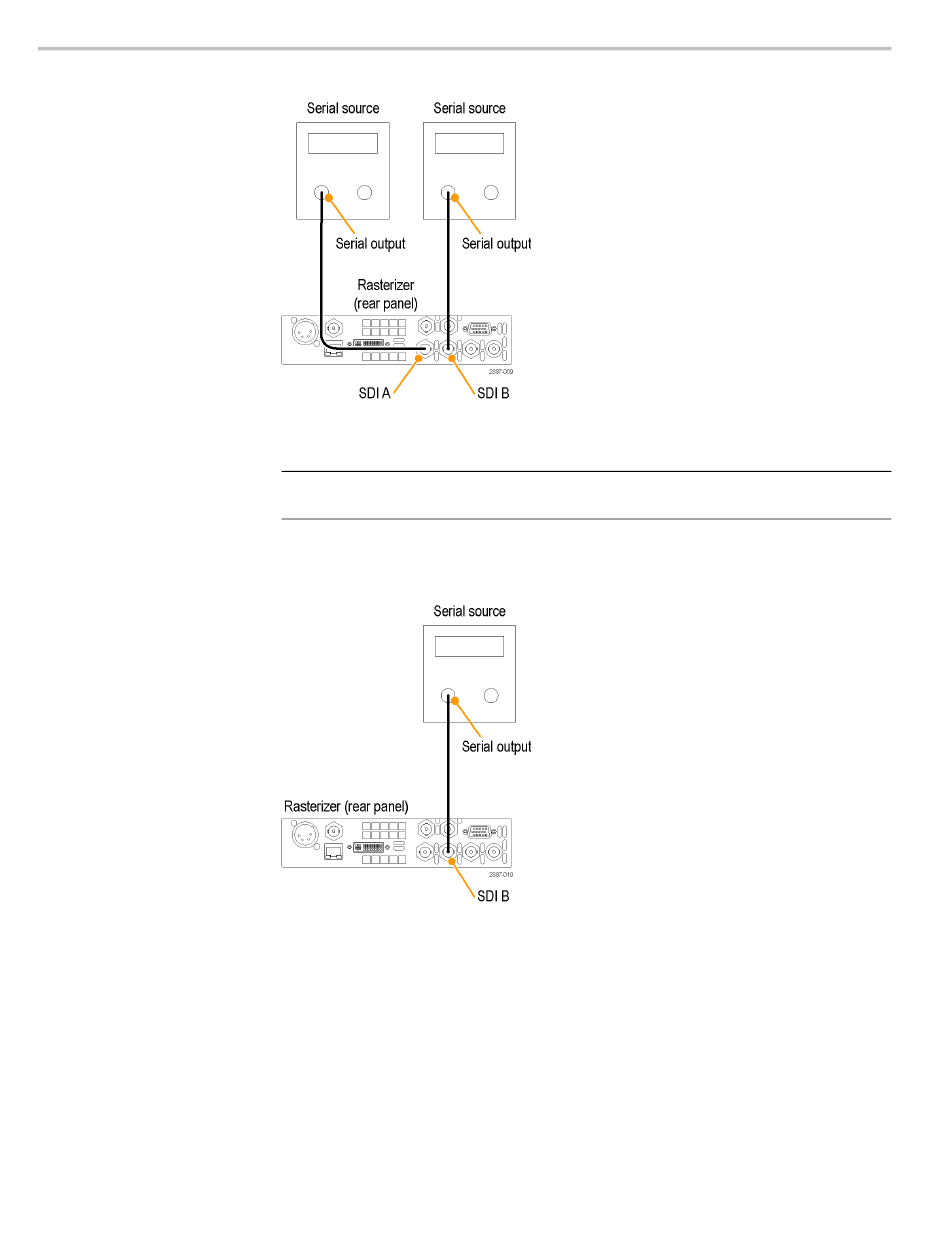

Figure 4: Connecting SD, HD, or 3 Gb/s SDI signals

NOTE.

See the Speciﬁcations and Performance Veriﬁcation manual on the

Product Documentation CD for maximum-allowed cable lengths.

Route the incoming serial signal into one of the instrument SDI inputs.

Figure 5: Connecting an SD, HD, or 3 Gb/s signal with embedded audio

WVR5200 System Integrator
