Tektronix WVR5200 Technical Reference page 17

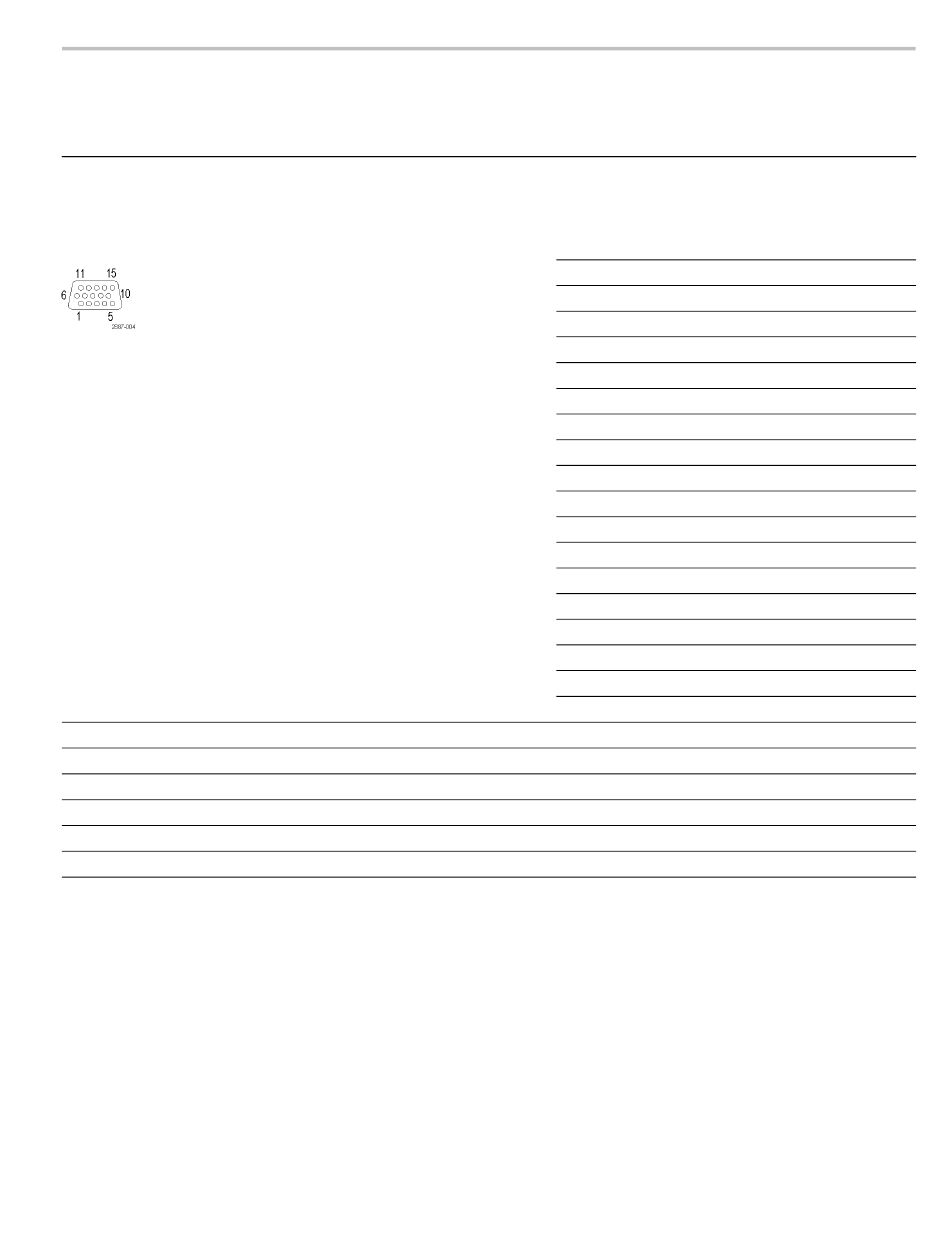

Table 6: Remote connector pin assignments and specifications
Characteristic
Connector Pin Assignments
Characteristic
LTC Input Connector
LTC Input Signal
LTC Signal Amplitude Range
Ground Closure Input Signal
Ground Closure Output Signal
EXT DISPLAY Connector
WVR5200 System Integrator
Pin out
1 GND (In)
2 Reserved (I/O)
3 Reserved (I/O)
4 Reserved (In)
5 Reserved (In)
6 GND (In)
7 Time Code Positive (LTC In)
8 Time Code Negative (LTC In)
9 Ground Closure (Alarm Out)
10 Preset 1 (In)
11 Preset 2 (In)
12 Preset 3 (In)
13 Preset 4 (In)
14 Preset 5 (In)
15 Preset 6 (In)
Description
15-pin DSUB, balanced, unterminated
Longitudinal Time Code per IEC Publication 461
0.2 V to 5.0 V balanced differential or single-ended
p-p p-p
TTL thresholds, 5 V max input, -0.5 min input; pull low to assert
One open collector output
The EXT DISPLAY connector is a female DVI-I connector with socket contacts.
This is the external display monitor output. The display resolution is 1024 x
768. The output supports DVI monitors directly and analog PC (RGB) monitors
with the use of a DVI-I to VGA adapter.
Preset functions
Hex Binary Direct
Pins 15, mode
14, 13, selection
12, 11,
10
none
F 111111
E XX1110 Preset 1
D XX1101 Preset 2
C XX1100
B XX1011 Preset 3
A XX1010
9 XX1001
8 XX1000
7 XX0111 Preset 4
6 XX0110
5 XX0101
4 XX0100
3 XX0011
2 XX0010
1 XX0001
0 XX0000
101111 Preset 5
N/A
N/A 011111 Preset 6
Instrument Connectors
Encoded
mode
selection
No action
No action
No action
SDI 2A/2B
SDI 1A/2A
No action
No action
Preset 8
Preset 7
Preset 6
Preset 5
Preset 4
Preset 3
Preset 2
Preset 1
Unused
N/A
N/A
7
