MODEL
All specifications are subjected to change without notice
WSP-T280
(Kiosk&Ticket Printer)
Rev. 1.2
WOOSIM SYSTEMS Inc.
(#501, Daerung Technotown 3th)
115, Gasan digital 2-ro, Geumcheon-gu,
Seoul, 153-772 Rep. of KOREA
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL:
http://www.woosim.com
http://www.woosim.com
Advertisement
Table of Contents
Related Manuals for WOOSIM WSP-T280
Summary of Contents for WOOSIM WSP-T280
- Page 1 WSP-T280 MODEL (Kiosk&Ticket Printer) Rev. 1.2 WOOSIM SYSTEMS Inc. (#501, Daerung Technotown 3th) 115, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-772 Rep. of KOREA Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
- Page 2 Copyright ⓒ2015 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.

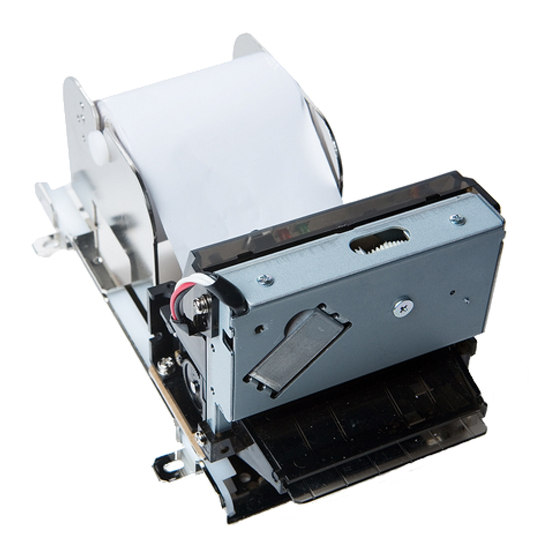

- Page 3 T280 Rev. 1.2 Introduction The WSP-T280 printer is the ideal solution for kiosk, Ticket vending machines and receipt output for vending machines, ATM, etc. The general features of WSP-T280 printer are as follows: Very silent printing thru direct thermal printing method.
-
Page 4: Operating Precautions
Do not allow plastic film, erasers, or adhesive tape to touch the paper for long periods. ● Do not stack the thermal paper with diazo copies immediately after copying or wet-type copies. ● Do not use chemical glue. ● Always use the clean thermal paper. http://www.woosim.com... -
Page 5: Table Of Contents
3.1. UART (RS-232C or TTL) & USB ................16 4. Using the printer ........................ 17 4.1. Control panel ......................17 4.2. The self test ....................... 17 5. Consumable Parts ......................18 5.1. Recommended paper ....................18 5.2. Printing position ......................18 6. Revision History ......................... 19 http://www.woosim.com... -
Page 6: Outline
T280 Rev. 1.2 WSP-T280 Model name Interface A0 : UART Power None : DC 24V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1 2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1 Note) The above table is the interface format which is supported. -
Page 7: Specifications
Sliding mount assembly -10 °C ~ 50°C (operating) Temperature -10°C ~ 70°C (storage) Environment conditions 30% - 80% (operating) Humidity 10% - 90% (storage) MCBF (Mean Cycle Mechanical 37,000,000 lines Between failure) Head Approximately 50 Km http://www.woosim.com <Table 1 >... -
Page 8: Setting Up The Printer
T280 Rev. 1.2 & & When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. WSP-T280 SHAFT Thermal roll paper http://www.woosim.com... -
Page 9: Printer Features
T280 Rev. 1.2 http://www.woosim.com... - Page 10 T280 Rev. 1.2 Connecting Ground Cable to Ground(0V) or to the land, if Ground Cable is not correctly connected, it will cause malfunctioning or the printer will be damaged. http://www.woosim.com...
-
Page 11: Dimensions
T280 Rev. 1.2 - Top view - Side view http://www.woosim.com... -
Page 12: Replacing The Paper Roll
1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2. Remove the used paper roll core if there is one. 3. Insert the paper roll as shown. http://www.woosim.com... - Page 13 T280 Rev. 1.2 4. Be sure to not the correct direction that the paper comes off the roll. 5. Push in the paper, as shown. The paper will be loaded automatically. http://www.woosim.com...
-
Page 14: Power Supply
Input : DC 24V / 3A OVER Avoid using power supply which its power capacity of power current is extremely high. The WSP-T280 printer is equipped to an external supply electrical power. The functions assigned to the pins in the connector are as follows:... -
Page 15: Sensor
T280 Rev. 1.2 Front End Sensor Roll End Sensor Applicable connector : MOLEX 53014-0310 or equivalent. http://www.woosim.com... -
Page 16: Interface
T280 Rev. 1.2 & & UART The WSP-T280 printer has a UART(RS-232C or TTL) interface and is connected by means of a 3pin & 4pin male connector. In the following table, the signals present on the connector are listed: ① UART... -
Page 17: Using The Printer
(ROM version and communication mode) 4. And then pattern of characters will be printed out. 5. Self-test will be finished automatically and turned to the standby status. In case printer does not work properly, please contact Woosim customer service center. ※ http://www.woosim.com... -
Page 18: Consumable Parts
2. Chemicals or oil may change the color of paper, or printed characters may fade. 3. Change of paper color starts from approx . 70 °C. Pay attention to heat, humidity and sun light. 4. Color of paper may be changed by being scratched by nail or hard metal, etc. http://www.woosim.com... -
Page 19: Revision History
T280 Rev. 1.2 Date Version Comments Apr. 16. 2015 Initialize Apr. 20. 2015 P3,7 : Printing speed modify : 145->200mm/sec Agency Approvals update p3,7,16 USB spec. add Jul. 17. 2015 p7,11 Dimension modify (slide dimension add) p7,18 paper 200ø-option add http://www.woosim.com...
