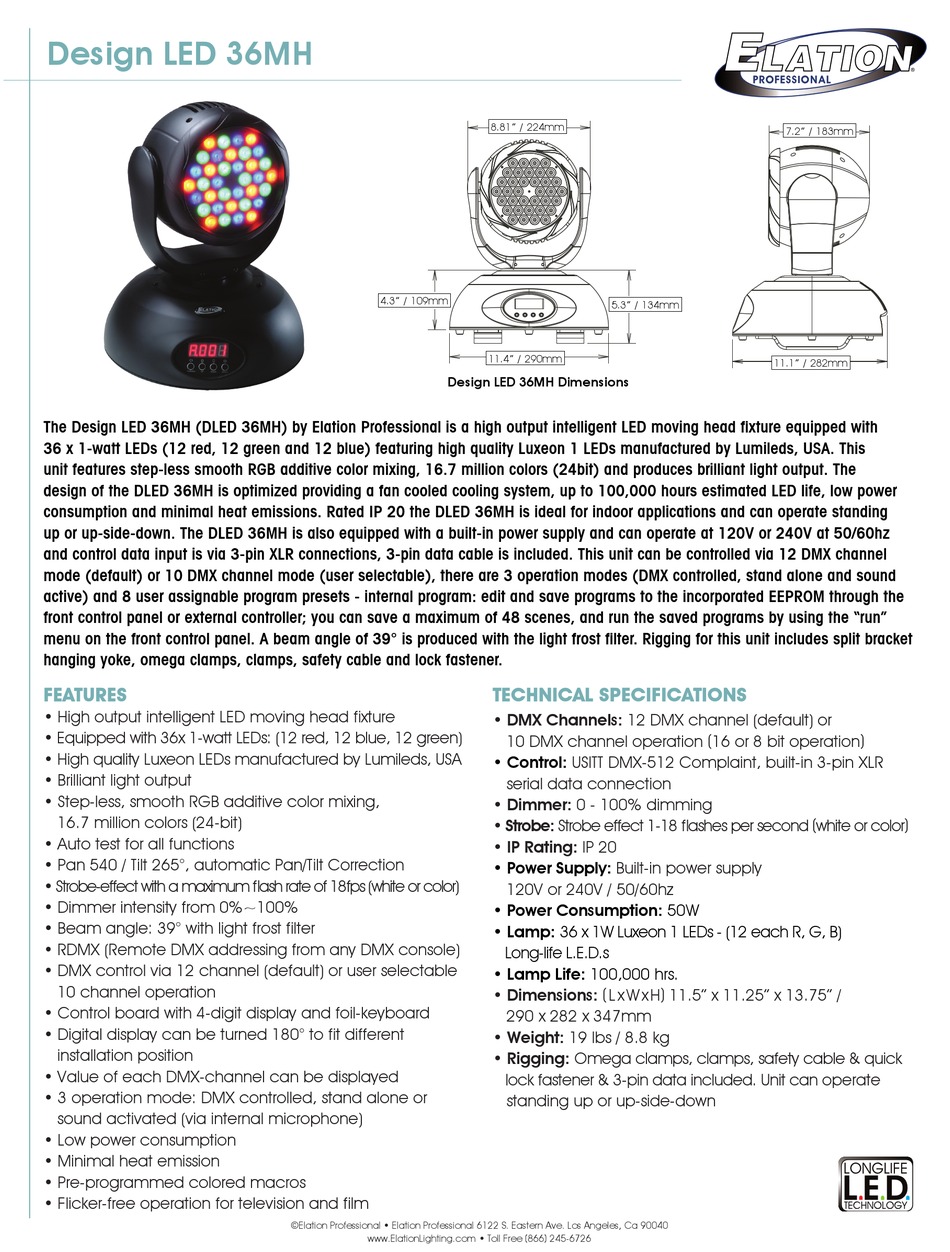

Elation Design LED 36MH Technical Specifications

Design LED 36MH
The Design LED 36MH (DLED 36MH) by Elation Professional is a high output intelligent LED moving head fixture equipped with
36 x 1-watt LEDs (12 red, 12 green and 12 blue) featuring high quality Luxeon 1 LEDs manufactured by Lumileds, USA. This
unit features step-less smooth RGB additive color mixing, 16.7 million colors (24bit) and produces brilliant light output. The
design of the DLED 36MH is optimized providing a fan cooled cooling system, up to 100,000 hours estimated LED life, low power
consumption and minimal heat emissions. Rated IP 20 the DLED 36MH is ideal for indoor applications and can operate standing
up or up-side-down. The DLED 36MH is also equipped with a built-in power supply and can operate at 120V or 240V at 50/60hz
and control data input is via 3-pin XLR connections, 3-pin data cable is included. This unit can be controlled via 12 DMX channel
mode (default) or 10 DMX channel mode (user selectable), there are 3 operation modes (DMX controlled, stand alone and sound
active) and 8 user assignable program presets - internal program: edit and save programs to the incorporated EEPROM through the
front control panel or external controller; you can save a maximum of 48 scenes, and run the saved programs by using the "run"
menu on the front control panel. A beam angle of 39° is produced with the light frost filter. Rigging for this unit includes split bracket
hanging yoke, omega clamps, clamps, safety cable and lock fastener.
FEATURES
• High output intelligent LED moving head fixture
• Equipped with 36x 1-watt LEDs: (12 red, 12 blue, 12 green)
• High quality Luxeon LEDs manufactured by Lumileds, USA
• Brilliant light output
• Step-less, smooth RGB additive color mixing,
16.7 million colors (24-bit)
• Auto test for all functions
• Pan 540 / Tilt 265°, automatic Pan/Tilt Correction
• Strobe-effect with a maximum flash rate of 18fps (white or color)
• Dimmer intensity from 0%~100%
• Beam angle: 39° with light frost filter
• RDMX (Remote DMX addressing from any DMX console)
• DMX control via 12 channel (default) or user selectable
10 channel operation
• Control board with 4-digit display and foil-keyboard
• Digital display can be turned 180° to fit different
installation position
• Value of each DMX-channel can be displayed
• 3 operation mode: DMX controlled, stand alone or
sound activated (via internal microphone)
• Low power consumption
• Minimal heat emission
• Pre-programmed colored macros
• Flicker-free operation for television and film
109
180
4.3" / 109mm
109
Design LED 36MH Dimensions
180
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
134
290
8.81" / 224mm
224
5.3" / 134mm
134
150
11.4" / 290mm 290
150

TECHNICAL SPECIFICATIONS

• DMX Channels: 12 DMX channel (default) or
10 DMX channel operation ( 16 or 8 bit operation )
• Control: USITT DMX-512 Complaint, built-in 3-pin XLR
serial data connection
• Dimmer: 0 - 100% dimming
• Strobe: Strobe effect 1-18 flashes per second ( white or color )
• IP Rating: IP 20
• Power Supply: Built-in power supply
120V or 240V / 50/60hz
• Power Consumption: 50W
• Lamp: 36 x 1W Luxeon 1 LEDs - (12 each R, G, B)
Long-life L.E.D.s
• Lamp Life: 100,000 hrs.
• Dimensions: ( L x W x H ) 11.5" x 11.25" x 13.75" /
290 x 282 x 347mm
• Weight: 19 lbs / 8.8 kg
• Rigging: Omega clamps, clamps, safety cable & quick
lock fastener & 3-pin data included. Unit can operate
standing up or up-side-down
347
7.2" / 183mm
183
347
11.1" / 282mm 282
183
282
