Elation Design LED 36 Brick Brochure & Specs

Design LED 36 Brick
The Design LED 36 Brick (DLED 36 Brick) by Elation Professional is a high output, compact (fits in 12" box truss),
LED color changer featuring seamless RGB color mixing using 12 x 3W LEDs by Soul Semi Conductor, 36 Watts
total - 4 Red, 4 Blue and 4 Green. This unit is
LED life. The DLED 36 Brick is rated at IP 20, designed for indoor applications only and is fully operational in 3
mounting positions. The DLED 36 Brick includes a dual yoke mounting bracket for fixed installation or can be
used as a split bracket for floor standing and separated for mounting multiple units together in a line for linear
strip design. The unit can be operated from 100~240V (electronic switching power supply)and is ac linkable
with IEC in/out connectors.
The DLED 36 Brick also features low power consumption, minimal heat emission and flicker-free operation for
television and film. The unit also features an on board 4 button control menu with 4 digit LED display for setting
control address, modes, manual or auto programs. The unit comes fitted standard with a 28° lens kit.
45° and 60° lens kits are included.
FEATURES
• LED color changer
• 12 x 3W LEDs, 36 Watts total - 12 Red, 12 Blue
and 12 Green
• Seamless RGB color changing
• 28° beam angle
• Included: Optional 45° & 60° lens kits
• 436 LUX @ 3 meters
• Rated IP 20
• Compact Design (fits in 12" box truss)
• Convection cooled
• Electronic ballast, multi-voltage
• IEC Power in/out
• Built-in Power Supply and DMX 512 Control
• Linkable power supply (in & out power connectors)
up to 8 units
• LED display
• Standard and theatrical modes
• Flicker free operation
• Master/ Slave auto program and music trigger
• 8 built-in programs with Speed control
• Control each L.E.D. independently
convection cooled
Control data input is via 3 pin or 5 pin DMX data first in and out connector cables.
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
13.1" / 332.5mm
14.3" / 362.5mm
16.3" / 414.5mm

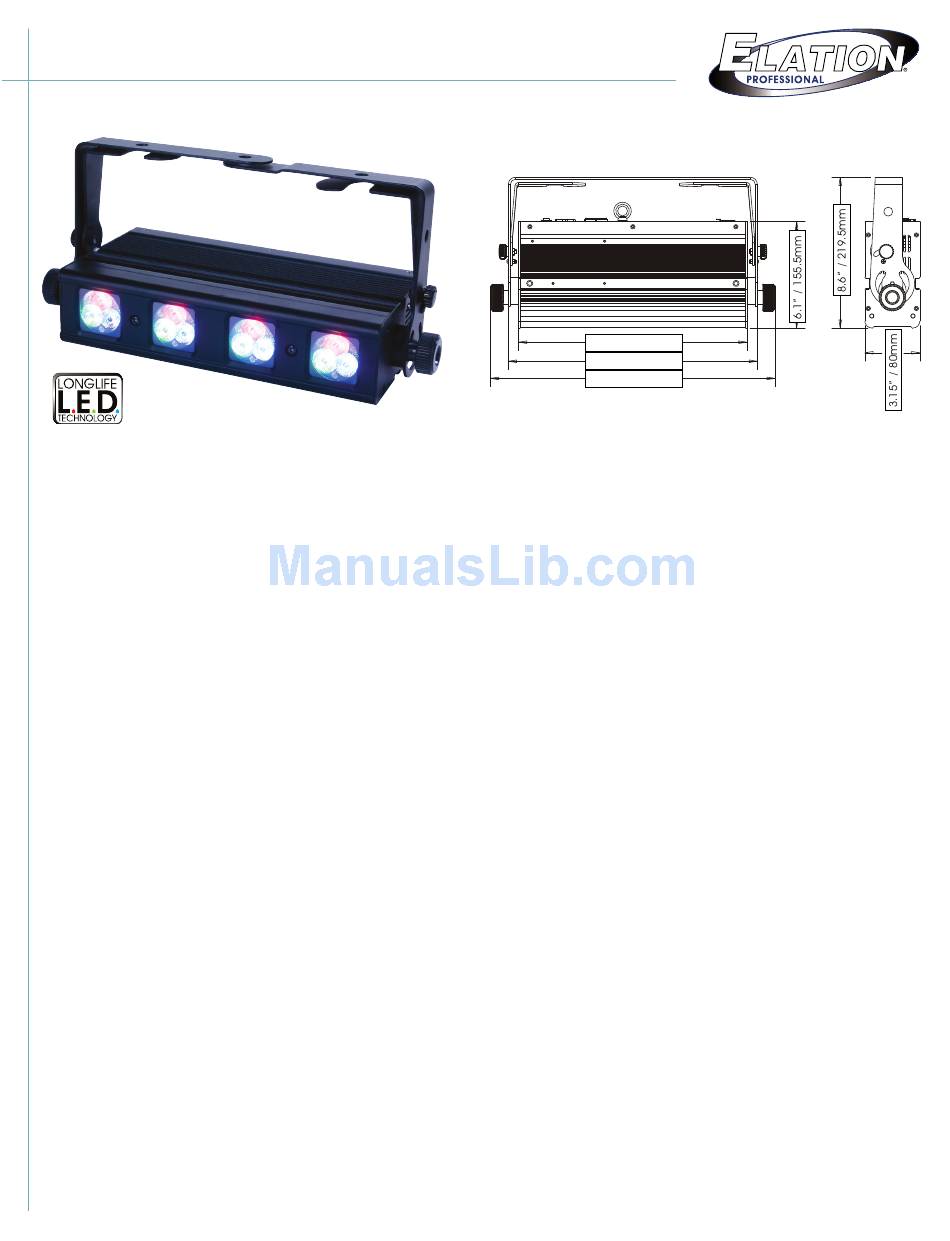

Design LED 36 Brick Dimensions
and provides up to
TECHNICAL SPECIFICATIONS
• DMX Channels: 3, 4, 6, 12 or 15 channel
operation modes
• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial input/output
• Dimmer: Continuous dimming 0-100%
• Strobe: Electronic strobe effect (25 fps)
• IP Rating: IP20
• Power Supply: Electronic switching power supply:
100~240V AC, 50/60Hz
• Power Consumption: 58.6W
• Fuse: GMA 220v~2A
• Lamp: 12 x 3 Watt led's by Seoul Semi Conductor
36-Watt Total (4 x Red, 4 x Green 4 x Blue)
• Lamp life: Long Life L.E.D. (rated at 50,000 Hours)
• Dimensions: (LxWxH): 16.3" x 8.7" x 3.1" /
415 x 220.98 x 78.74mm
• Weight: 9 lbs. / 4.1 kgs.
• Rigging: Mounting bracket and safety eye-hook
installed. Safety cable & 3-pin data cable included
50,000 hours estimated
Optional
