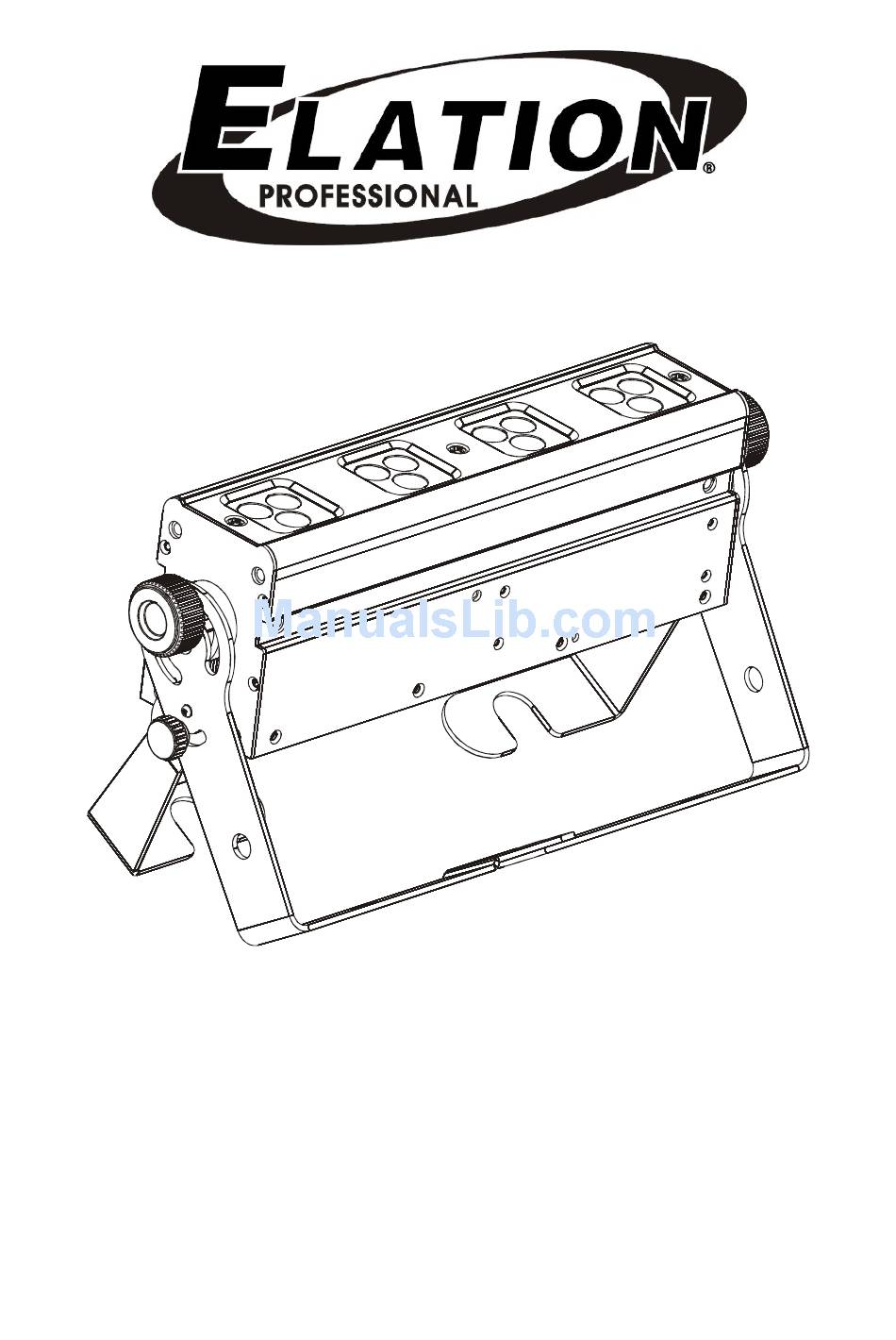

- Page 1 Design LED 12 Brick II Elation Professional™ 6122 S. Eastern Ave. Los Angeles, CA. 90040 www.elationlighting.com Rev. 03/08/08...
-
Page 2: Table Of Contents
12. Photometric Data………………………………………………………………………… 27 13. Dimensional Drawings………………………………………………….……………….. 28 14. Change lens to get different beam angles……………………………………………. 28 15. Circuit Schematic………...………………………………………………………………. 29 16. Technical Specifications…………………………………………...………….………… 30 ©Elation Professional, Los Angeles Ca. TABLE OF CONTENS Design LED 12 Brick II ™ www.ElationLighting.com... -
Page 3: General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The Design LED 12 Brick II ™, has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. -
Page 4: Warranty Registration
Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 12 Brick II ™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 5: Safety Instructions
4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 12 Brick II ™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury. - Page 6 ©Elation Professional, Los Angeles Ca. Never touch the device during operation! The housing may heat up Never look directly into the light source, Design LED 12 Brick II ™ www.ElationLighting.com...
-
Page 7: Features
Flicker-free operation for television and film • Compact design: fits in 12” box truss • Brilliant light output • Linkable power supply (in and out power connectors) up to 8 units. ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com... -
Page 8: General Guidelines
Design LED 12 Brick II ™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so. -
Page 9: Fixture Overview
2. Diffusing Lens – This lens is used to both protect the LEDS as well as diffuse the light output. 3. LED Assembly – RGB LED assembly 3x1watt LEDS ©Elation Professional, Los Angeles Ca. 11 12 13 14 Design LED 12 Brick II ™ www.ElationLighting.com... - Page 10 4. On/Off Power Switch – Controls main power to the unit. 5. Power Output Jack – Use this jack to jump power to another Design LED 12 Brick II ™ 6. Power Input/Fuse Holder Assembly – This assembly holds the safety fuse as well as provides a female IEC connector for a power cord.
- Page 11 Design LED 12 Brick II ™ 14. ENTER BUTTON This button is used to select and confirm a menu function. – ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 12: Mounting And Installation
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217 for proper installation in Europe To ensure proper installation, only qualified staff should attempt installation. Mounting points ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com... - Page 13 Mounting The Design LED 12 Brick II ™ is fully operational in three different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
-
Page 14: Understanding Dmx
Clamp Mounting The Design LED 12 Brick II ™ provides a unique mounting bracket assembly that allows the unit to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple units to rigged together (see the illustration below). - Page 15 Design LED 12 Brick II ™ Securing the Design LED 12 Brick II ™ Always secure your fixture with a safety cable when suspend-ing the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above.
-
Page 16: Understanding Dmx Addressing
Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com... -
Page 17: Dmx Connections
Design LED 12 Brick II ™ 4™ or DMX Branch/4™. CONTROLLER Please note: to ensure maximal stability, only two devices may be connected together in this manner! From the third devices, please connect to power supply to get power for the second link. -
Page 18: Operation Modes
That means changing the settings of one channel will only affect the selected fixture. In the case of the Design LED 12 Brick II ™, which is a 3 channel fixture (default), you should set the starting DMX address of the first unit to 1, the second unit to 4 (3 + 1), the third unit to 7 (4 + 3), and so on. -
Page 19: Operating Modes
Pulse strobe from slow to fast 160---191 Open 192----223 Random strobe ©Elation Professional, Los Angeles Ca. Internal channel program 1~12 1~12 , is the internal program channel, below the channel is the Strobe channel, below the Design LED 12 Brick II ™ Strobe Dimmer/Speed www.ElationLighting.com... -
Page 20: Dmx Mode Selection
Adjust speed of fade Adjust speed of strobe Adjust speed of scene Adjust speed of fade Adjust speed of strobe Adjust speed of scene Adjust speed of fade Adjust speed of strobe Adjust speed of scene Design LED 12 Brick II ™ www.ElationLighting.com... - Page 21 Adjust speed of fade Adjust speed of fade Sound-controlled run as Master Sound-controlled run in Stand Alone Microphone sensitivity Select standard dimmer Select weak dimmer Reset to Fixture to the Factory Default Settings Show the version Design LED 12 Brick II ™ www.ElationLighting.com...
- Page 22 Design LED 12 Brick II ™ DMX Operation Notes: The fixture will automatically function in DMX mode whenever the unit receives a DMX signal. Please note that this will override all manual settings regardless of dipswitch positions. This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off.
-
Page 23: Dmx Channel Traits
Design LED 12 Brick II ™ 9. DMX CHANNEL TRAITS 4 Channel Mode: This chart details a simple layout of the DMX channel assignment in 4-channel mode. The chart traits will vary slightly for 3-channel, 12-chennel, and 15-channel operation, as those modes use more RGB channels for more precise control. - Page 24 Channel 2 - Green: 0-255 Green (0-Black, 255- 100% Green) Channel 3 - Blue: 0-255 Blue (0-Black, 255- 100% Blue) Channel 4 - General dimming 0-255 Dimming (0%-100%) ~ Normal Operation ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com...
-
Page 25: Cleaning And Maintenance
There are no user serviceable parts inside this, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com... -
Page 26: Warranty
United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All ®... - Page 27 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 28: Photometric Data
PHOTOMETRIC DATA Beam angle 44° （ ） Intensity LUX Distance (m) Diameter (m) ©Elation Professional, Los Angeles Ca. Design LED 12 Brick II ™ www.ElationLighting.com... -
Page 29: Dimensional Drawings
Design LED 12 Brick II ™ 15. DIMENSIONAL DRAWINGS CHANGE LENS TO GET DIFFERENT BEAM ANGLES ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 30: Circuit Schematic
Design LED 12 Brick II ™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 31: Technical Specifications
= Pin 5, n/a = Pin 4, [+] = Pin 3, [-] = Pin 2, [Ground] = Pin- RGB Color Additive Mixing 44˚ GMA 250V~2A Continuous Dimming 0~100% Electronic Strobe 0~18 Fps 100,000 Hours Rated Life Design LED 12 Brick II ™ www.ElationLighting.com... - Page 32 Design LED 12 Brick II ™ Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-582-3108 fax www.ElationLighting.com /Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
