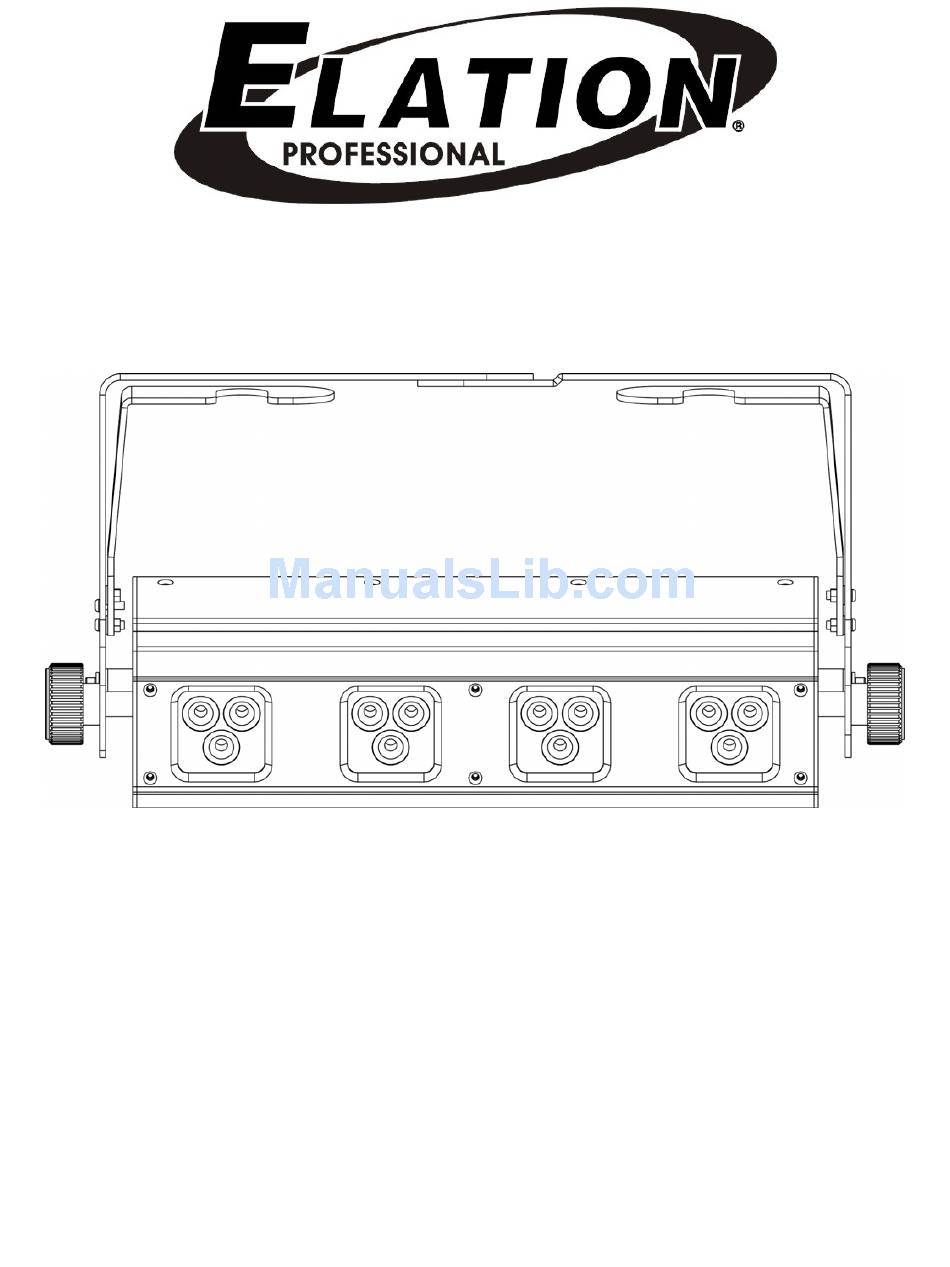

- Page 1 Design LED 12 Brick Elation Professional™ 4295 Charter Street Los Angeles, Ca 90058 www.elationlighting.com Rev. 01/24/07...
- Page 2 DESIGN LED 12 BRICK™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 3: Table Of Contents
DESIGN LED 12 BRICK™ TABLE OF CONTENS CONTENTS General Information……………………………………………………………………… 3 a. Introduction………………………………………………………………………. 3 b. Unpacking………………………………………………………..…………..… 3 c. Customer Support…………………………………………….………………… 3 d. Warranty Registration……………………………………………………..…… 4 Safety Instructions………………………………………………………..…………. 5 Features…………………………………………………………………………………… 7 General Guidelines………………………………………………………………………. 8 Fixture Overview…………………………………………………………………………. 9 Mounting and Installation………………………………………………………….……. 11 a. -
Page 4: General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The Design LED 12 Brick,™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. -
Page 5: Warranty Registration
Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Design LED 12 Brick™ carries a two year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 6: Safety Instructions
4. For safe operation, follow the Installation guide described in chapter two of this manual. Operating the Design LED 12 Brick™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury. - Page 7 DESIGN LED 12 BRICK™ replace it immediately with a new one of similar power rating. 13. Always disconnect from main power before performing any type of service or any cleaning procedure. 14. Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of the cord.
-
Page 8: Features
DESIGN LED 12 BRICK™ 3. FEATURES • Low power consumption • Minimal heat emission • Maintenance free operation • Equipped with 12 one-watt LEDs: (4 red, 4 blue, 4 green) • High power LEDs manufactured by Lumileds, USA • 100,000 hours rated LED life •... -
Page 9: General Guidelines
DESIGN LED 12 BRICK™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so. -
Page 10: Fixture Overview
DESIGN LED 12 BRICK™ 5. FIXTURE OVERVIEW 1. Hanging Bracket – The unit uses a unique sectional bracket that allows the unit to be hung, mounted, or stood straight up. 2. Bracket Locking Knob – This knob is used to secure the bracket in place after angle adjustments have been made. - Page 11 9. Diffusion Lens – This lens is used to both protect the LEDs as well as diffuse the light output. 10. Power Output Jack – Use this jack to jump power to another Design LED 12 Brick™ in an array system.
-
Page 12: Mounting And Installation
DESIGN LED 12 BRICK™ 6. MOUNTING AND INSTALLATION Yoke Assembly – Single Unit Operation The device can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. When connecting the hanging yoke to the fixture, refer to the illustration below. -
Page 13: Mounting Points
DESIGN LED 12 BRICK™ Please note: To ensure maximum stability, no more than for units should be mounted together in this fashion. Connecting more than four units will result in an unstable assembly, which could collapse and damage the units. -
Page 14: Mounting Positions
DESIGN LED 12 BRICK™ Mounting The Design LED 12 Brick™ is fully operational in three different mounting positions, hanging upside-down from a ceiling, side mounted, or set on a flat level surface. Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). When clamp mounting;... - Page 15 Clamp Mounting The Design LED 12 Brick™ provides a unique mounting bracket assembly that allows the unit to stand on flat surface, hang on truss via a clamp, or be used in cluster allow multiple units to rigged together (see the illustration below).
-
Page 16: Securing
DESIGN LED 12 BRICK™ Securing the Design LED 12 Brick™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above. -
Page 17: Understanding Dmx
DESIGN LED 12 BRICK™ 7. UNDERSTANDING DMX Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): Your fixture and your DMX controller require a standard 3-pin XLR connector for data input and data output (see figure below). Be sure to only use properly rated DMX cables for DMX operation and not standrd audio cables. -
Page 18: Dmx Terminator
DESIGN LED 12 BRICK™ Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™. -
Page 19: Understanding Dmx Addressing
That means changing the settings of one channel will only affect the selected fixture. In the case of the Design LED 12 Brick™, which is a 15 channel fixture (default), you should set the starting DMX address of the first unit to 1, the second unit to 16 (15 + 1), the third unit to 31 (15 + 16), and so on. -
Page 20: Operating Modes
DESIGN LED 12 BRICK™ 8. OPERATING MODES This fixture can run in three different DMX modes. The chart below describes how to access the different DMX modes. The chart below also defines the how the channel will function in the different DMX modes. - Page 21 DESIGN LED 12 BRICK™ Preset Program 2 Preset Program 3 Preset Program 4 Preset Program 5 Preset Program 6 Preset Program 7 Preset Program 8 Manual static color settings are achieved when dipswitch 7 is in the “off” position. RED: Dipswitch 1 &...
- Page 22 DESIGN LED 12 BRICK™ Dipswitches 1 & 7 on accesses internal program 1 Dipswitches 2 & 7 on accesses internal program 2 Dipswitches 3 & 7 on accesses internal program 3 Dipswitches 4 & 7 on accesses internal program 4 Dipswitches 5 &...
-
Page 23: Dmx Traits
DESIGN LED 12 BRICK™ 9. DMX CHANNEL TRAITS 6 Channel Mode: This chart details a simple layout of the DMX channel assignment in 6-channel mode. The chart traits will vary slightly for 12 channel and 15-channel operation, as those modes use more RGB channels for more precise control. - Page 24 DESIGN LED 12 BRICK™ DMX channel’s functions and their values (6 Channel Mode): Channel 1 - Red: 0-255 Red (0-Black, 255-100% Red) Channel 2 - Green: 0-255 Green (0-Black, 255- 100% Green) Channel 3 - Blue: 221-255 Blue (0-Black, 255- 100% Blue)
-
Page 25: 12-Channel Mode
DESIGN LED 12 BRICK™ Channel 6 - General dimming / Program Speed Control This channel has two functions depending on the operating mode. When running the built-in programs this channel will control the program speed. 0-255 Dimming (0%-100%) ~ Normal Operation... - Page 26 DESIGN LED 12 BRICK™ Channel 3 - Blue: 221-255 Blue (0-Black, 255- 100% Blue) Channel 4 - Red: 0-255 Red (0-Black, 255-100% Red) Channel 5 - Green: 0-255 Green (0-Black, 255- 100% Green) Channel 6 - Blue: 221-255 Blue (0-Black, 255- 100% Blue)
-
Page 27: 15-Channel Mode
DESIGN LED 12 BRICK™ 15 Channel Mode: This chart details a simple layout of the DMX channel assignment in 15-channel mode. In this mode channels 1~12 are used to control the various RGB LEDs and channels 13~15 will control special features. - Page 28 DESIGN LED 12 BRICK™ Channel 5 - Green: 0-255 Green (0-Black, 255- 100% Green) Channel 6 - Blue: 221-255 Blue (0-Black, 255- 100% Blue) Channel 7 - Red: 0-255 Red (0-Black, 255-100% Red) Channel 8 - Green: 0-255 Green (0-Black, 255- 100% Green)
- Page 29 DESIGN LED 12 BRICK™ 101-130 Internal program 4 131-160 Internal program 5 161-190 Internal program 6 191-220 Internal program 7 221-255 Internal program 8 Channel 14 - Strobe: No function 1~95 Strobe effect slow to fast 96-127 No function 128-159 Pulse effect in sequences...
-
Page 30: Dmx Dipswitch Reference Chart
DESIGN LED 12 BRICK™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 31: Cleaning And Maintenance
DESIGN LED 12 BRICK™ 10. CLEANING AND MAINTENANCE The consider the following point during normal service and inspection: 1. Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall. -
Page 32: Warranty
® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement ®... - Page 33 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 34: Photometric Data
DESIGN LED 12 BRICK™ PHOTOMETRIC DATA Distance Diameter Average Angle 0.8m 44° 1.6m 44° 2.4m 44° ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 35: Dimensional Drawings
DESIGN LED 12 BRICK™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 36: Circuit Schematic
DESIGN LED 12 BRICK™ TECHNICAL SPECIFICATIONS Power supply: 90V~250V AC50Hz~60Hz Power consumption: LED Configuration: 12 1Watt Units (3 x Red, 3x Green 3 x Blue) Packing dimensions: 47x26.5x19cm (56x48x42cm ~ 4pc system) Weight: 2.1Kgs / 4.62 Lbs (9.2Kgs ~ 4pc system) - Page 37 DESIGN LED 12 BRICK™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
