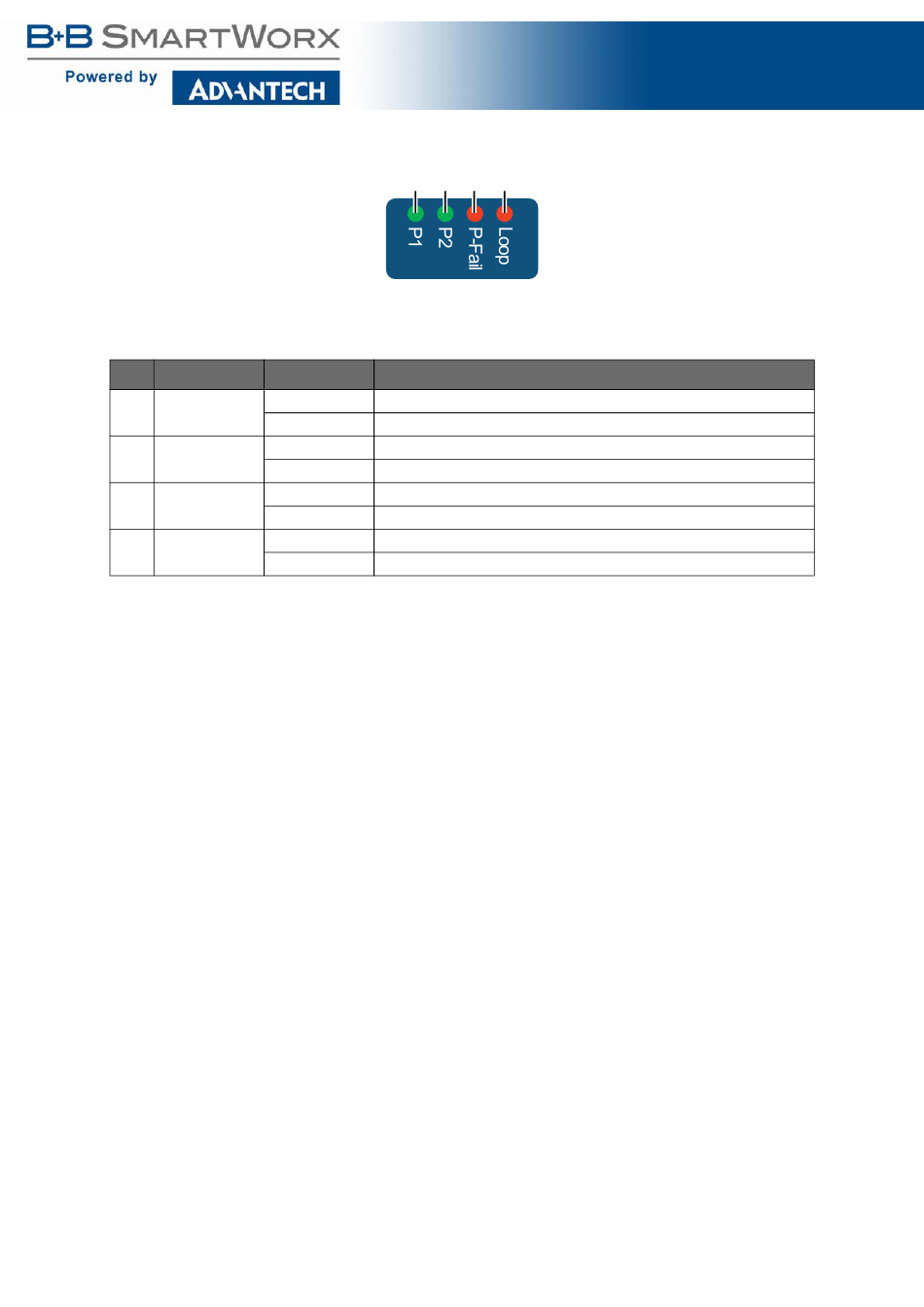

System LED Panel
Table 8: System LED Panel
No. LED Name LED Color
1 PW1 LED Solid green
Off
2 PW2 LED Solid green
Off
3 P-Fail Solid red
Off
4 Loop Solid red
Off
1 2 3 4
Figure 5: System LED Panel
Description
Powered up.
Powered down or not installed.
Powered up.
Powered down or not installed.
When PW1 or PW2 is disconnected, the LED lights.
When PW1 and PW2 is connected, the LED is off.
When loop detected, the LED lights.
No loop detected.
