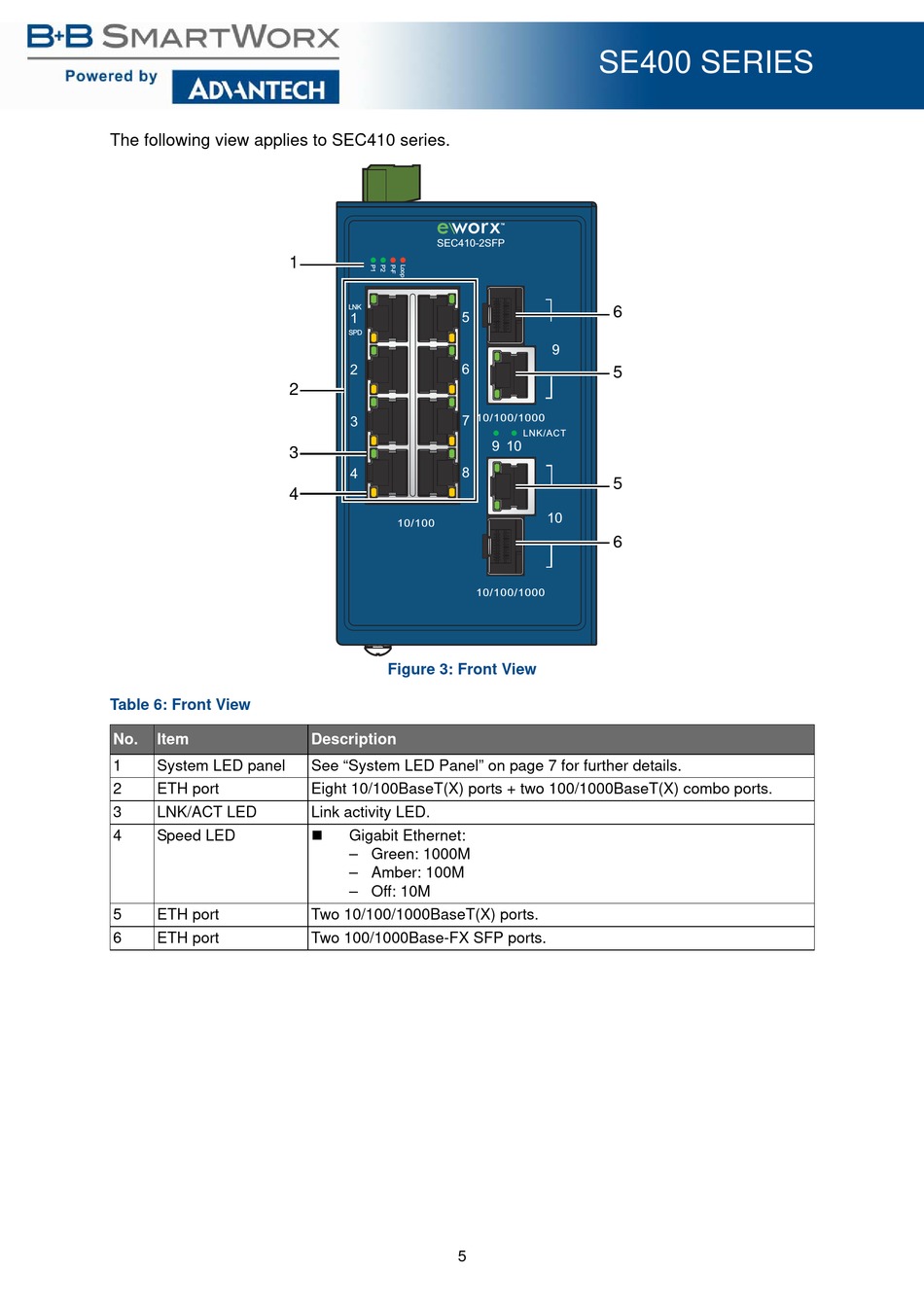

The following view applies to SEC410 series.
Table 6: Front View
No. Item
1 System LED panel
2 ETH port
3 LNK/ACT LED
4 Speed LED
5 ETH port
6 ETH port
SEC410-2SFP
1
LNK
5
1
SPD
2 6
2
7
3
3
8
4
4
10/100
Figure 3: Front View
Description
See "System LED Panel" on page 7 for further details.
Eight 10/100BaseT(X) ports + two 100/1000BaseT(X) combo ports.
Link activity LED.

Gigabit Ethernet:
– Green: 1000M
– Amber: 100M
– Off: 10M
Two 10/100/1000BaseT(X) ports.
Two 100/1000Base-FX SFP ports.
5
SE400 SERIES
6
9
5
10/100/1000
LNK/ACT
9 10
5
10
