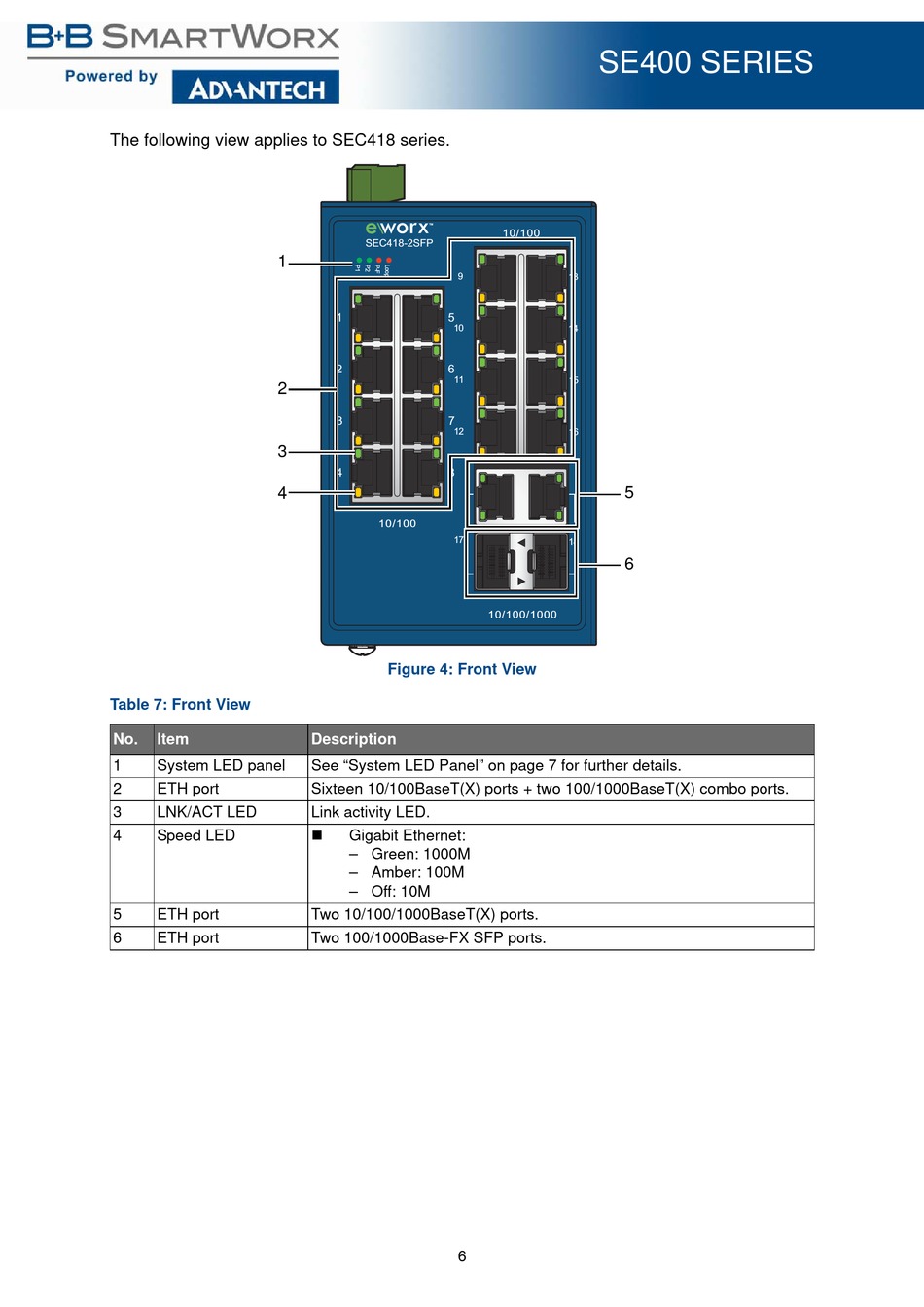

The following view applies to SEC418 series.
1
2
3
4
Table 7: Front View
No. Item
1 System LED panel
2 ETH port
3 LNK/ACT LED
4 Speed LED
5 ETH port
6 ETH port
SEC418-2SFP
9
1 5
10
2 6
11
3 7
12
4 8
10/100
17
Figure 4: Front View
Description
See "System LED Panel" on page 7 for further details.
Sixteen 10/100BaseT(X) ports + two 100/1000BaseT(X) combo ports.
Link activity LED.

Gigabit Ethernet:
– Green: 1000M
– Amber: 100M
– Off: 10M
Two 10/100/1000BaseT(X) ports.
Two 100/1000Base-FX SFP ports.
6
SE400 SERIES
10/100
13
14
15
16
5
18
6
10/100/1000
